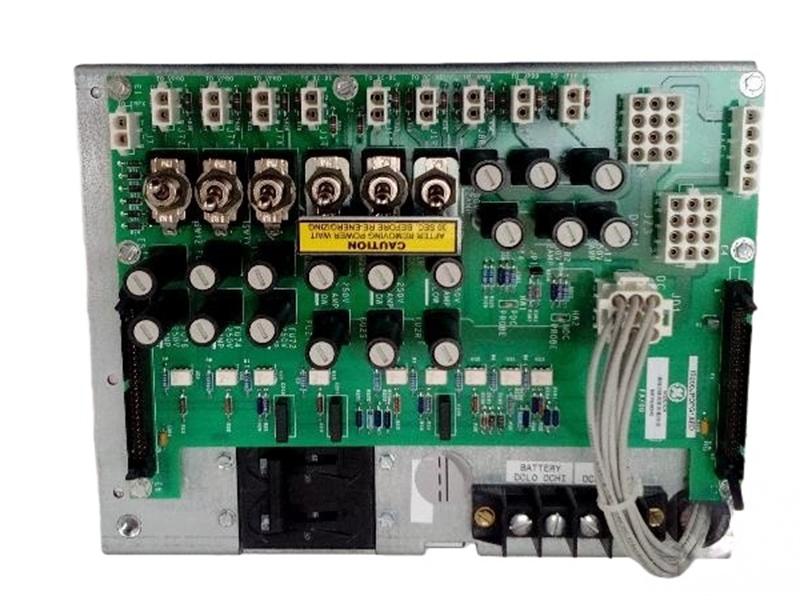

IS2020JPDFG01 GE MKVIe, 125 DC Power Distribution Module

IS2020JPDFG01 is created by GE MKVIe, 125 DC DC Power Distribution and Branch Protection

Item NO.:
IS2020JPDFG01
Payment:
T/T
Price:
$13500
Product Origin:
USA
Shipping Port:
Xiamen
Lead Time:
5-7 days
Product weight:
2.55 kg

Inquiry now

product introduction

Manufacture	GE
Model	IS2020JPDFG01
PN No.	IS2020JPDFG01
Catalog	MKVIe
Description	Power Distribution Module
Origin	USA
HS CODE	85389091
Dimension	33108 (CM)
Weight	2.55 kg

Description:

The IS2020JPDFG01 is a DC Power Distribution Board within the GE Mark VIe control system, typically installed in the power distribution layer of the control cabinet. It serves as a centralized "distribution hub" that safely allocates high-current DC power from upstream power modules (such as JPDM or JPDV) to various control cards, I/O modules, and fan assemblies.

Hardware Features
1. Power Input and Allocation

Voltage Specification: This board is designed to handle a 125V DC input power supply.
Multi-channel Output: It branches a single high-current input into multiple independent output circuits, specifically for powering I/O Packs and electronic devices.

2. Circuit Protection Mechanism

Branch Fusing: The board is equipped with a series of replaceable fuses that provide overcurrent protection for each individual output branch.
Preventive Design: This configuration ensures that if a short circuit occurs in one I/O module, only that specific branch's fuse will blow, preventing a collapse of the entire 125V DC bus.

3. Monitoring and Feedback

Status Indicators: Each fuse is typically paired with an LED indicator that remains lit when the fuse is intact and turns off when it blows, allowing maintenance personnel to quickly troubleshoot.
Logic Integration: The JPDF board feeds power status back to the controller via dedicated signal channels. If a circuit break occurs, the system triggers an alarm on the HMI (Human-Machine Interface) to alert the operator.

4. Physical Structure

Board Design: It features an open-frame construction for easy installation and wiring within the cabinet.
High-Reliability Connections: It utilizes heavy-duty terminal blocks designed to withstand industrial environments, including vibration and high temperatures.

BIOS is a 1 MB (128 KB x 8) 5 V flash memory device and mounts in a socket on the ACL. See Table 4, Basic BIOS Settings, for settings accessible through the toolbox, as well as through the setup utility. The BIOS will redirect the video display to COM1 if a video BIOS is not found (if there is no PC/104 VGA board installed).
The flash memory BIOS is divided into three sections:
• main BIOS
• BIOS setup utility
• GE Industrial Systems Extended BIOS

Frequently Asked Questions:

2.Why is the part number for the IS2020JPDFG01 shorter than other IS2020 models?
The DS2020PDMAG6 has no backwards compatibility or optional specs that requireadditional characters in the part number.

3.What character indicates the assembly variant number of the IS2020JPDFG01?
In this case, it is the "1" at the end of the part number.

Datasheet Link:

IS2020JPDFG01 GE MKVIe, 125 DC Power Distribution Module PDF Datasheet
