Description:

IS2020RKPSG2AA is a VME Rack Power Supply manufactured and designed by General Electric as part of the Mark VI Series used in GE Speedtronic gas turbine control systems. The VME control and interface racks' sides are where the Mark VI VME rack power supply is mounted. It provides the VME backplane with +5, 12, 15, and 28 V dc as well as an optional 335 V dc output for powering flame detectors attached to TRPG. There are two source input voltage options available. There is a low-voltage version for 24 V dc operation as well as a 125 V dc input supply that is powered by a Power Distribution Module (PDM).

Specifications:
Model: IS2020RKPSG2A
Series: Mark VI
Type: VME Power Module
Input Voltage: 125VDC
Output Power: 400W
Coating: Normal Coating
Redundant Operation Supported: Yes

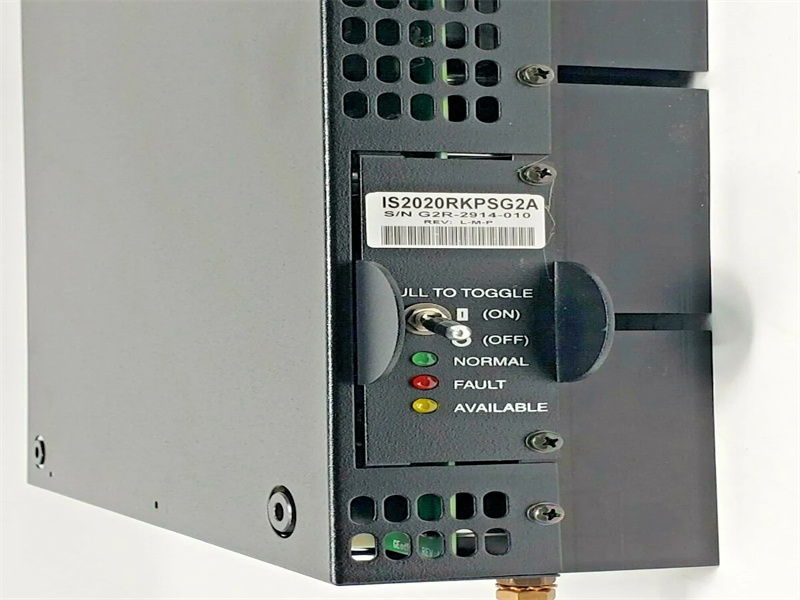

LED Indicators: Three
Switch: Reset Switch
Applicable to: Mark VIe Distributed Control System
Compatibility: Compatible with GE Turbine Control Applications
Frequently Asked Questions:
1.What is different between the IS2020RKPSG2A and the G1 model?
The IS2020RKPSG2A has 2 fewer remote outputs, but has a PS335 output, status ID output, and supports redundant operation. These latter features are not found on the G1 model.
2.What does the status ID output on the IS2020RKPSG2A do?
This output mimics the green LED and allows identification of the supply back to the system.
