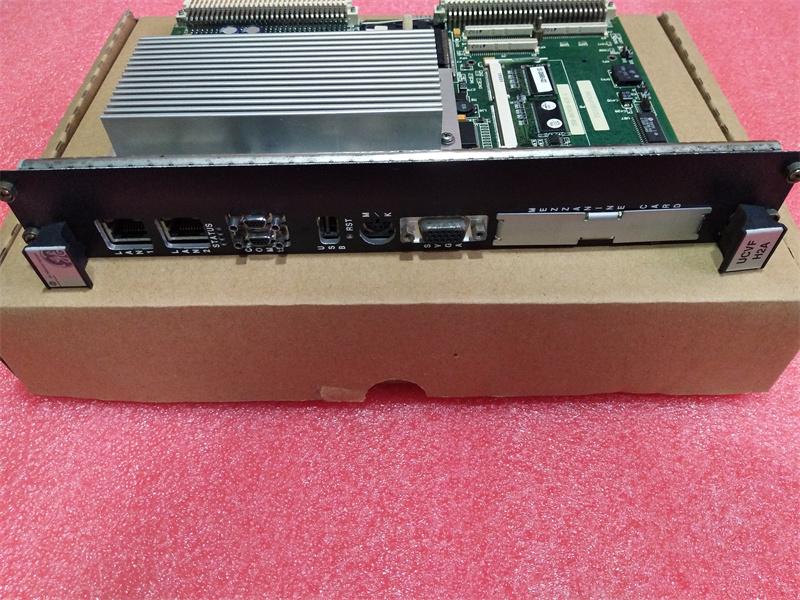

IS215UCVFH2A GE MKVI, VME Double-Slot Board

Description:

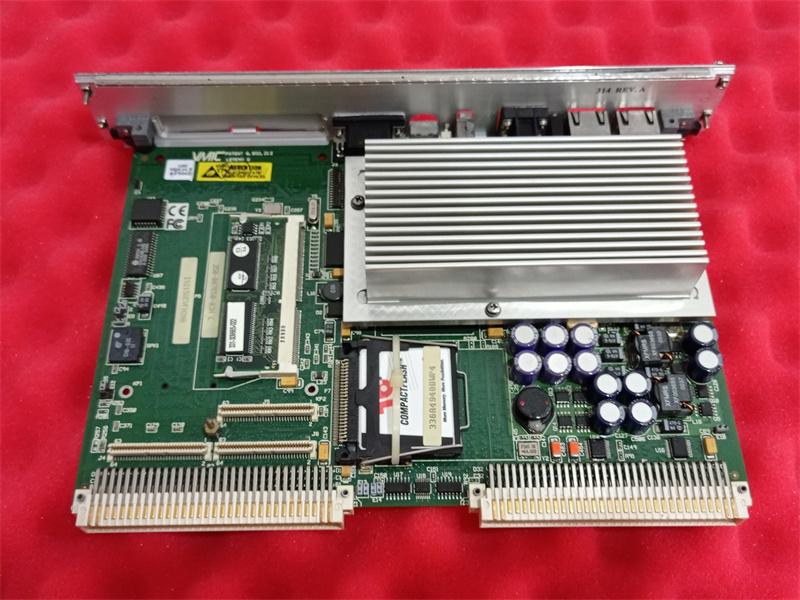

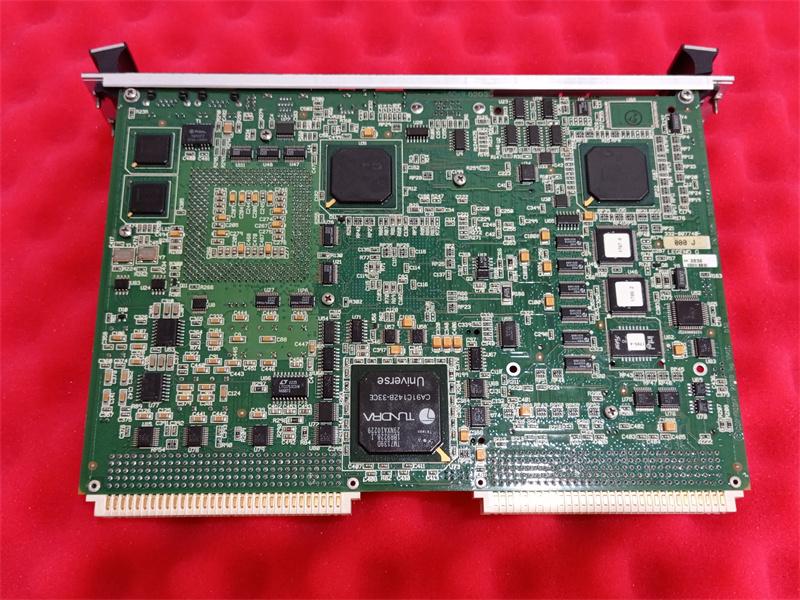

The UCVF is a double-slot board using an 850 MHz Intel Pentium® III processor with 16 or 128 MB of flash memory and 32 MB of DRAM. Two 10BaseT/100BaseTX (RJ-45 connector) Ethernet ports provide connectivity. The first Ethernet port allows connectivity to the UDH for configuration and peer-to-peer communication.

The second Ethernet port is for use on a separate IP logical subnet. This Ethernet port is configured through the toolbox. The controller validates its toolbox configuration against the existing hardware each time the rack is powered up.

Key Benefits

• Ethernet connections to the UDH for communication with HMIs, and other control equipment
• RS-232C connection for setup using the COM1 port
• RS-232C connection for communication with distributed control systems (DCS) using the COM2 port (such as Modbus® slave)

Applications
The controller is loaded with software specific to its application to steam, gas, and land-marine aeroderivative (LM), or balance of plant (BOP) products. It can execute up to 100,000 rungs or blocks per second, assuming a typical collection of average size blocks. An external clock interrupt permits the controller to synchronize to the clock on the VCMI communication board to within ±100 microseconds.

External data is transferred to and from the control system database (CSDB) in the controller over the VME bus by the VCMI communication board. In a simplex system, the data consists of the process inputs and outputs from the I/O boards. In a TMR system, the data consists of the voted inputs from the input boards, singular inputs from simplex boards, computed outputs to be voted by the output hardware, and the internal state values that must be exchanged between the controllers.

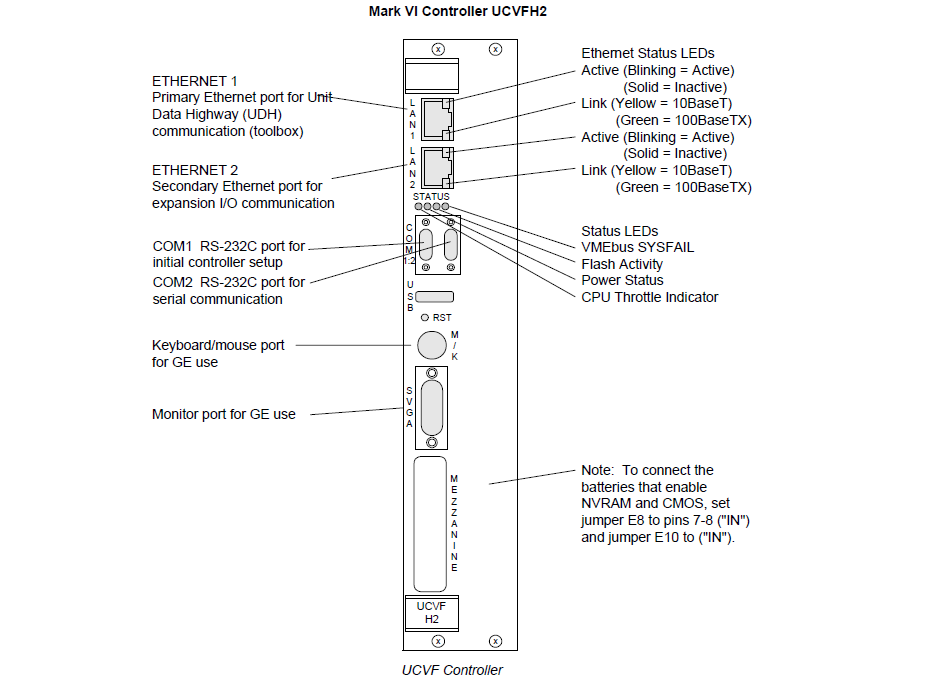

Dimensional Drawing – IS215UCVFH2A

FREQUENTLY ASKED QUESTIONS:
1.What is Power Requirements UCVFH2??
+5 V dc, 6 A typical, 7 A maximum
+12 V dc, 200 mA typical, 400 mA maximum
-12 V dc, 2.5 mA typical


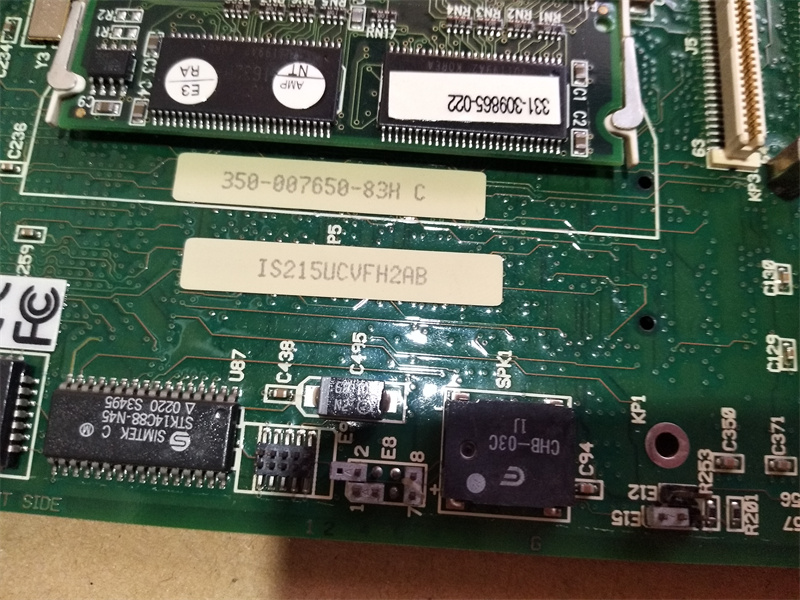

2.What's Memory of IS215UCVFH2A?
32 MB DRAM
16 or 128 MB Compact Flash Module
256 KB Advanced Transfer Cache
