IS220PPDAH1A With IS200JPDSG1A GE MKVIe, PDM System Feedback Pack

Description:

The Mark VIe Control PPDA Power Distribution System Feedback Module, Cat. No. IS220PPDAH1A is intended to be used with accessory control power distribution board Cat. No. IS200JPDSG1A

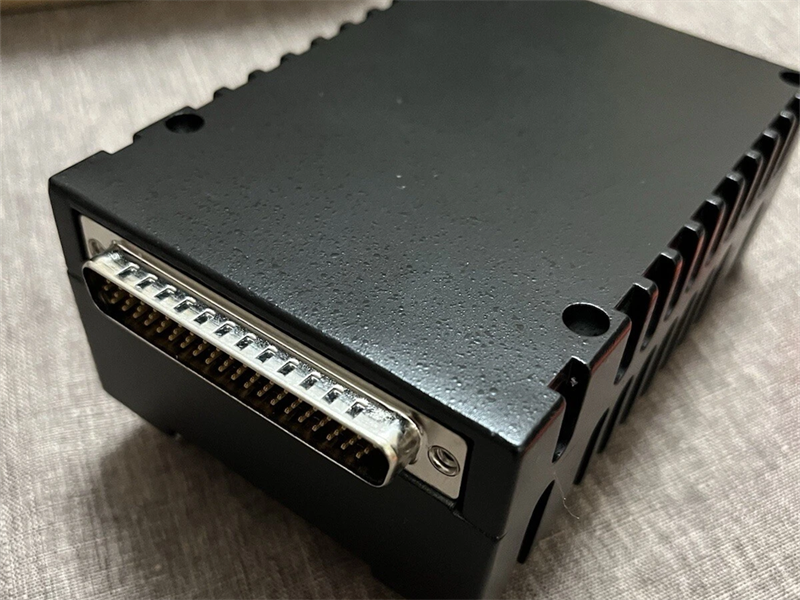

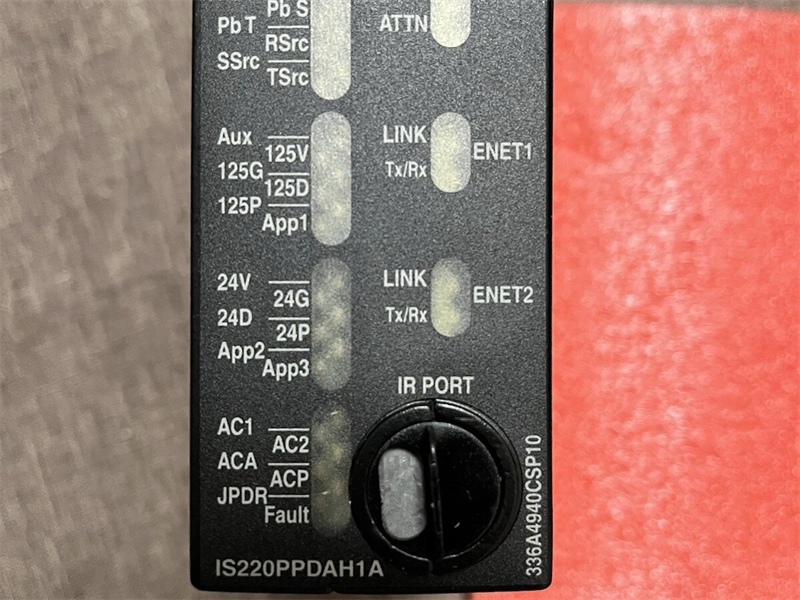

IS220PPDAH1A is a Power Distribution System Feedback Board manufactured and designed by General Electric as part of the Mark VIe Series used in distributed control systems. The Power Distribution System Feedback (PPDA) I/O pack can receive inputs from as many as six power distribution boards or as many as six sets of feedback signals. It offers the controllers a second redundant Ethernet interface while adjusting the board feedback signals. In order to identify the power distribution boards hooked into the PPDA feedback, electronic IDs are used in a plug-and-play design. By populating the IONet output with this data, connected boards can subsequently receive accurate feedback.

The Mark VIe Control Power Distribution Module's JPDS, JPDM, JPDG, or JPDC 28 V de control power distribution board serves as the host for the PPDA I/O pack (PDM). 50-pin ribbon cable jumpers wired pin to pin 1 are used to connect other boards. The PPDA receives one feedback group from each board.

The PPDA I/O pack includes one of the following compatible BPPx processor boards:

• There is a BPPB processor board inside the PPDAHIA.
• The ControlST software package V04.07 and later is compatible with the functionally compatible BPPC processor board found within the PPPDAHIB.
• The JPDB, JPDE, and JPDF feedback signals are compatible with the PPDA I/O pack.

• Mount the selected terminal board firmly.
• Directly connect the JAI terminal board connectors to the PPDA I/O pack. The JPDG, JPDS, JPDM, or JPDC 28 V de control power distribution board is where the PPDA I/O pack is mounted.
• Using the threaded screws next to the Ethernet ports, mechanically secure the I/O pack. The studs slip into a mounting bracket made for the particular style of the terminal board. It is important to position the bracket such that the DC-62 pin connector connecting the I/O pack and the terminal board is not subjected to right-angle forces. In the course of the product's service life, the adjustment should only be necessary once.
• Depending on how the system is set up, connect one or two Ethernet wires. Either port can be used to use the I/O pack. If twin connections are employed, it is customary to link ENETI to the network related to the R controller.
• Connect the pack's connector to a power source to turn on the battery. The I/O pack includes a built-in soft-start feature that limits current inrush when power is applied, so it is not essential to unplug the cable before connecting it.
• If necessary, set up the I/O pack using the ToolboxST program. Consult the section
• Ribbon cables should be connected from connection P2 on JPDG, JPDS, JPDM, or JPDC to additional core boards supplying data to PPDA.

Frequently Asked Questions:

1.What is GE Mark VIe IS220PPDAH1A?
IS220PPDAH1A is a Power Distribution System Feedback developed by GE and used in Distributed Control Systems.

2.How to Check Price and Availability For Power Distribution System Feedback?
Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

3.How are Boards Packaged For Shipment from Topteng Technology Trading Co.,Ltd?
Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.

Datasheet Link:

IS220PPDAH1A GE MKVIe, PDM System Feedback Pack PDF Datasheet
