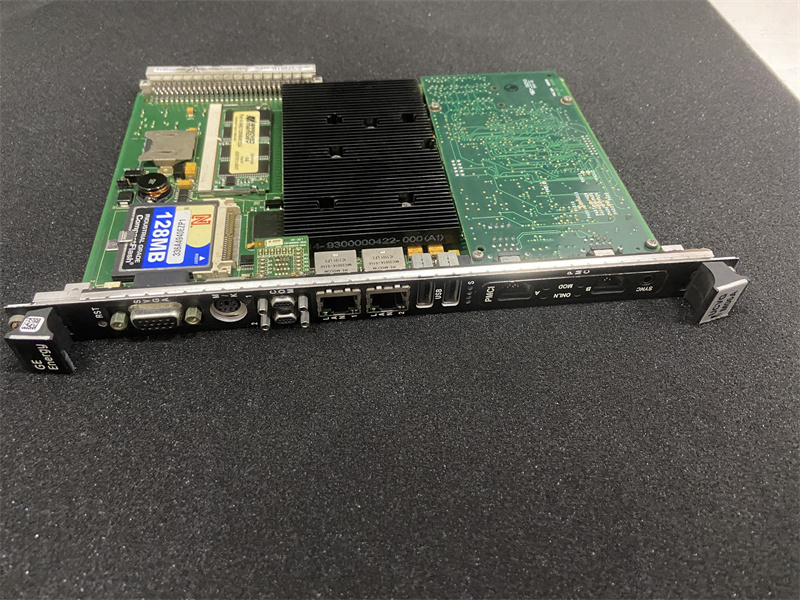

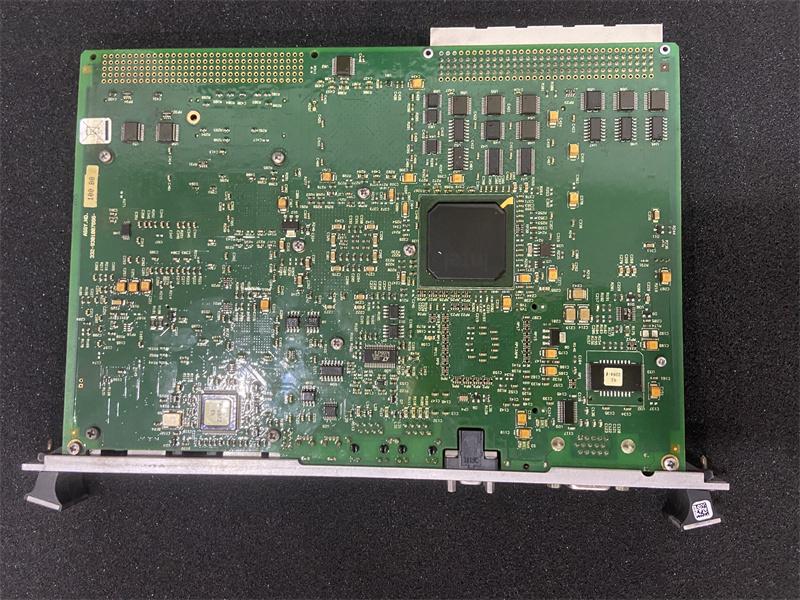

IS415UCVGH1A GE IS215UCVGM06A MKVI, VME Processor Control Card

Description:

The UCVG is a single-slot board using an Intel® Ultra Low Voltage Celeron™ 650 MHz processor with 128 MB of flash memory and 128 MB of SDRAM. Two 10BaseT/100BaseTX (RJ-45 connector) Ethernet ports provide connectivity. The first Ethernet port allows connectivity to the UDH for configuration and peer-to-peer communication.

The second Ethernet port is for use on a separate IP logical subnet and can be used for Modbus or private Ethernet Global Data (EGD) network. This Ethernet port is configured through the toolbox. The controller validates its toolbox configuration against the existing hardware each time the rack is powered up.

Note A separate subnet address allows the controller to uniquely identify an Ethernet port. IP subnet addresses are obtained from the Ethernet network administrator (for example, 192.168.1.0, 192.168.2.0).

Features:

• Easy Operation and Configuration

The panel provides an intuitive operator interface and user-friendly menus, allowing users to easily configure and control the drive.

• Real-Time Control

 Provides real-time data processing and control to meet stringent industrial automation requirements.

• Safety and Reliability

Equipped with protection functions such as overcurrent, overvoltage, and undervoltage, it ensures safe motor operation and prevents accidents.

• Scalability

Supports a variety of expansion modules and function cards for more advanced functionality and scalability.

• Integrated Communications

Facilitates seamless integration with other Mark Vl components, enabling efficient data exchange and system coordination.

• High Availability

 Designed to support critical processes, it ensures system reliability even under heavy loads.
Specifications:
SPECIFICATIONS:
Part Number: IS415UCVGH1A
Product Type: Controller Board
Series: Mark VI
Number of Channels: 6

Power Supplies: 200-250Vac
Operating Temperature: 0°C to 70°C
Operating System: QNX
Microprocessor: Intel Ultra Low Voltage Celeron 650 MHz
Memory: 128 MB SDRAM
Frequently Asked Questions:
1.Which three communication ports connect operators to engineering interfaces?
-Ethernet connections to the UDH for HMI and other control equipment communication.
-RS-232C setup connection through the COM1 port.
-RS-232C connection for COM2 port-based communication with distributed control systems (DCS).

2.What does this IS415UCVHH1A conformal PCB coating type entail?
This IS415UCVGH1A conformal style of PCB coating is a thin layer of basic daily wear and tear protection that enevelops the entirety of this IS415UCVGH1A product's base circuit board in a thin insulatory layer.

3.What are the related products of IS215VPROH2B?

IS215UCVGM06A/ IS415UCVGH1A
