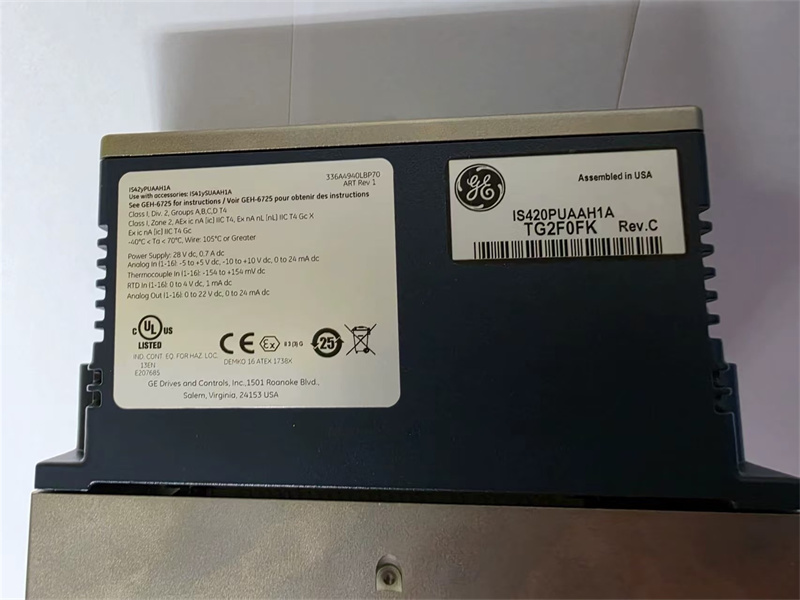

IS420PUAAH1A With IS410SUAAH1A GE MKVIe Universal I/O Pack

Description:

IS420PUAAH1A is an universal I/O pack designed and developed by GE. It is a part of GE Mark VIe control system. The module maintains the same high level of reliability and availability as other Mark VIe control system products. Customer savings include fewer panels/footprint and variations for replacement parts.

Features

• It is compatible with ControlST versions 7.02.00C and later.
• The PUAA enables users to use fewer panels and have a smaller system footprint by providing black sections that can be independently wired, enabling channel-by-channel commissioning. The module has sixteen analog Simplex channels.
• The frame rate is 10ms. Auto-reconfiguration is possible. The unit can be hot-swapped for a replacement. It is intended to operate in temperatures ranging from -40 to 158 degrees Fahrenheit with relative humidity ranging from 5% to 95%. Within the specified temperature range, the normal scan time is 5 ms and the measurement accuracy is better than 0.1%.

The IS420PUAAH1A is designed for use with ControlST version 7.02.00C or later.

The IS420PUAAH1A allows users to use fewer panels and have a smaller footprint for their system by offering black sections that can be independently wired, which allows for channel-by-channel commissioning. The module has sixteen Simplex analog channels. These can be configured individually as the following:

1. Thermocouple I/O
2. RTD I/O
3. Voltage Input
4. 4-20 mA current input
5. 0-20 mA current output
6. Pulse accumulator
7. Digital input

The IS420PUAAH1A supports a frame rate of 10ms.  Auto-reconfiguration is supported. The unit is hot-swapped replacement supported. It is designed to operate in temperatures ranging from -40 to 158 degrees Fahrenheit in 5% to 95% relative humidity, non-condensing. Normal scan time is 5 ms and measurement accuracy is better than 0.1% within the specified temperature range.

Frequently Asked Questions:

1.What is the Electrical data supply of IS420PUAAH1A?
28VDC 0.7A

2.Whats's the Analog data of IS420PUAAH1A?
05+5VDC,-10-+10VDC

0-2VDC
