Manufacture |
EMERSON/EPRO |
|
Model |
KJ3203X1-BA1 |
| PN No. |
KJ3203X1-BA1 |
| Catalog | Delta V |
|
Description |
DI 32-Channel 24 VDC Dry Contact Card |
| Origin | U.S.A./Germany |
| HS CODE |
85389091 |
| Dimension |
10*6*2 (CM) |
| Weight | 0.2 kg |
Description:

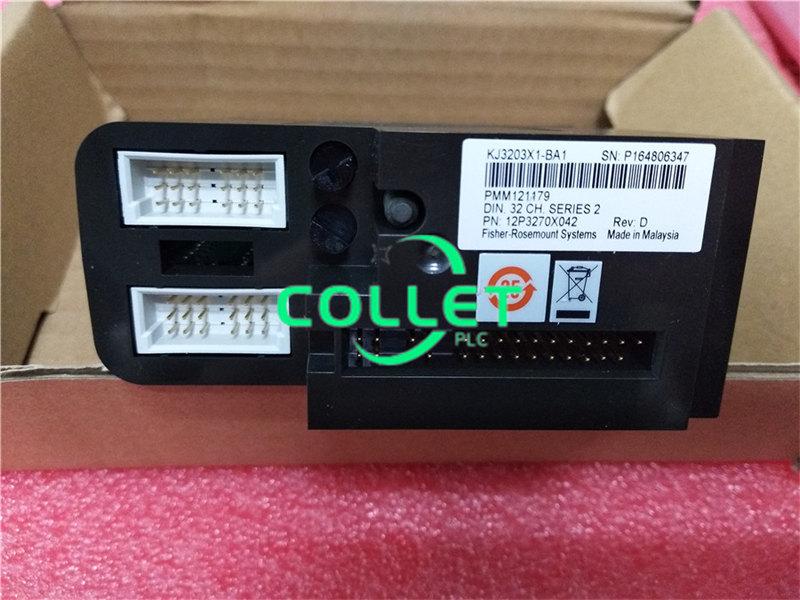

KJ3203X1-BA1 is a DI 32-Channel 24 VDC Dry Contact Card for the DeltaV system.
Power Specifications:
Local Bus Power: 12 VDC at 75 mA
Bussed Field Power: 24 VDC at 150 mA
Field Circuit: 24 VDC at 5 mA/Channel
Environmental Specifications:
Ambient Temperature: -40°C to +70°C
Shock: 10g ½ Sinewave for 11msec
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative: Humidity 5 to 95% Non-Condensing IP 20 Rating
Terminal Block key Position: B3
Datasheet Link:
KJ3203X1-BA1 Emerson DI 32-Channel 24 VDC Dry Contact Card PDF datasheet
