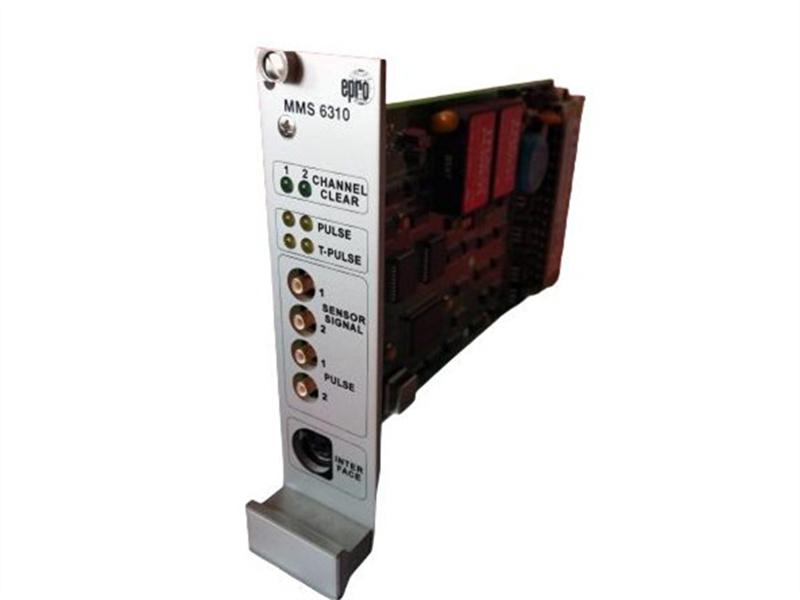

MMS6310 EMERSON Dual Channel Key- pulse Monitor

Description:

The Emerson EPRO MMS6310 is a dual-channel key-pulse monitor designed for critical machineryprotection within the Emerson MMS 6000 system. It monitors speed, rotation direction, and keyphasorsfrom rotating shafts using magnetic pickups or pulse generators.

Parameters:
Model Number:MMS6310
Channels: 2
Input signals: Magnetic pickups, pulse generators
Speed range: Wide range depending on application
Outputs: Digital alarm outputs, speed data
Communication: RS 232 and RS 485 interfaces
Input Signal Types: Key pulses,proximity switches,encoders
Input Signal Frequency: Up to 20 kHz
Speed Measurement Range:0.01 to99,999 rpm
Position Measurement Range:0to 99,999.99revolutions
Accuracy: +0.1% of full scale
Resolution: 0.01rpmor.1revolution
0utput Signals: Analog(4-20 mA)，digital(NPN/PNP)，relay
Power Supply: 24VDC

Features:

• Dual-Channel Monitoring

Simultaneously monitor two independent channels, making it ideal forapplications with multiple rotating shafts,ensuring comprehensive monitoring and control

• Wide Range of Input Signals

Accepts various input signals, including key pulses, proximityswitches,and encoders, offering flexibility and compatibility with diverse sensor types

• Hioh Accuracy

Provides precise measurement of speed and position, even at low speeds, ensuringaccurate monitoring and control of critical machinery parameters

• Easy to Use

Featuring a user-friendly interface and clear display, the MMS 6310 is easy toconfigure and operate,simplifying setup and enhancing usability for operators

• Keyphasor Monitoring

Analyzes keyphasor signals for precise shaft position and timing critical tomachine operation.

• Alarm Outputs

Triggers alarms for overspeed, underspeed, and zero speed conditions to preventequipment damage.

Datasheet Link:

MMS6310 EMERSON Dual Channel Key- pulse Monitor  PDF Datasheet
