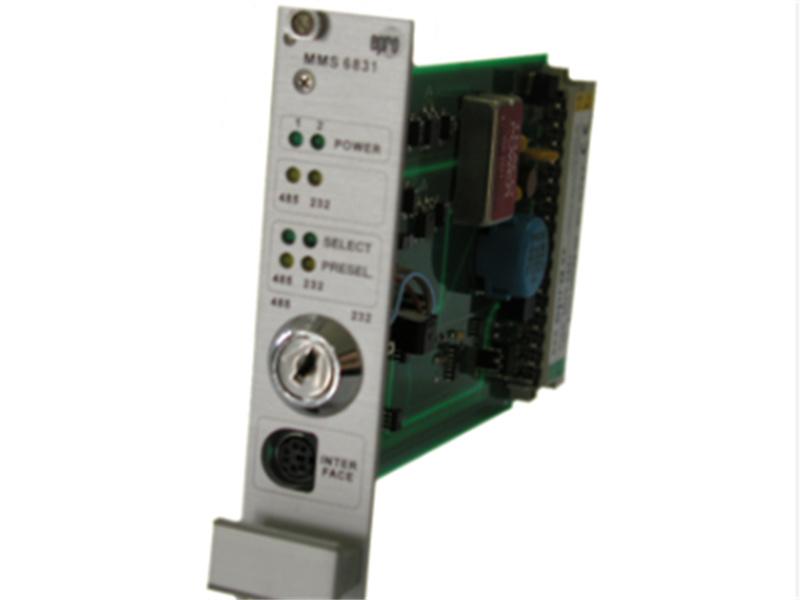

MMS6831 EMERSON high-performance communication interface module

Description:

The MMS6831 is an RS485 communication unit manufactured by EPRO, Germany. The module has RS485 input capabilities and can output data to a PC via an RS232 interface or transmit data to a distributed control system (DCS) via an RS485 interface. It can transmit characteristic values, module waveform data, and physical quantity information such as module status and alarm status.

Parameters:
Product Type:Interface Card
Manufacturer:EPRO
Model:MMS6831
Application:Industrial Automation
Connectivity:RS-485
Data Transfer Rate:Up to 1 Mbps
Operating Temperature:-20°C to +70°C
Power Consumption:Max 5W
Certification:UL, CE, CSA
Storage and transportation environment requirements: -40 to 85°C.
Permissible relative humidity: 0 to 90%, non-condensing.
Vibration range: 0 to 15 mm, 10 to 55 Hz.
Acceleration: 19.6 mm/s², 55 to 150 Hz.
Peak acceleration: 98 m/s².
Rated impact duration: 16 ms.

Features:

• Communication Interface

Supports RS485 input and RS232 output.

• Data Output

 Can send data to a PC or DCS.

• Transmission Content

Transmittable physical quantities include characteristic values, module waveform data, module status, and alarm status.

Datasheet Link:

MMS6831 EMERSON high-performance communication interface module PDF Datasheet
