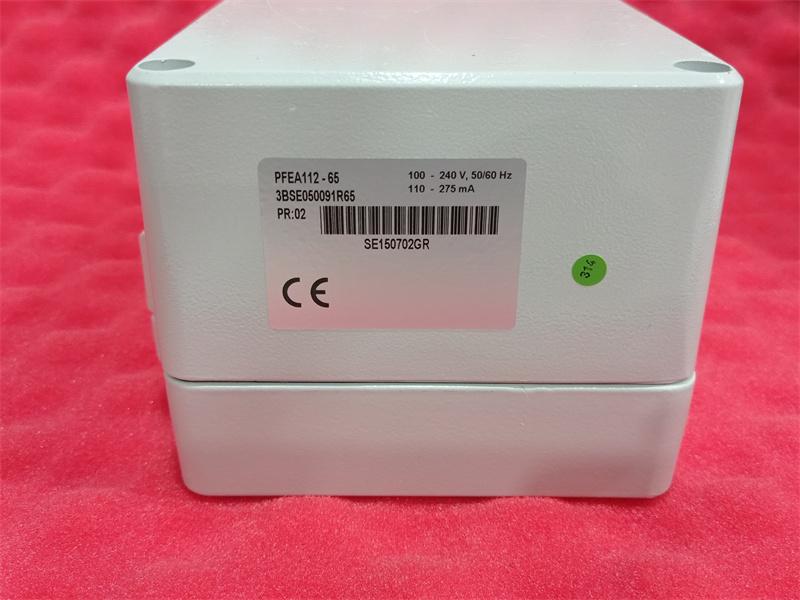

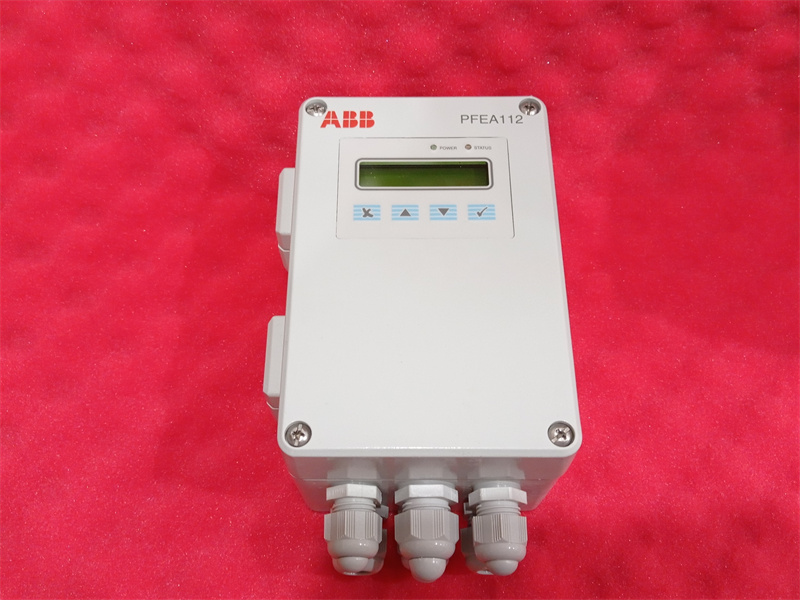

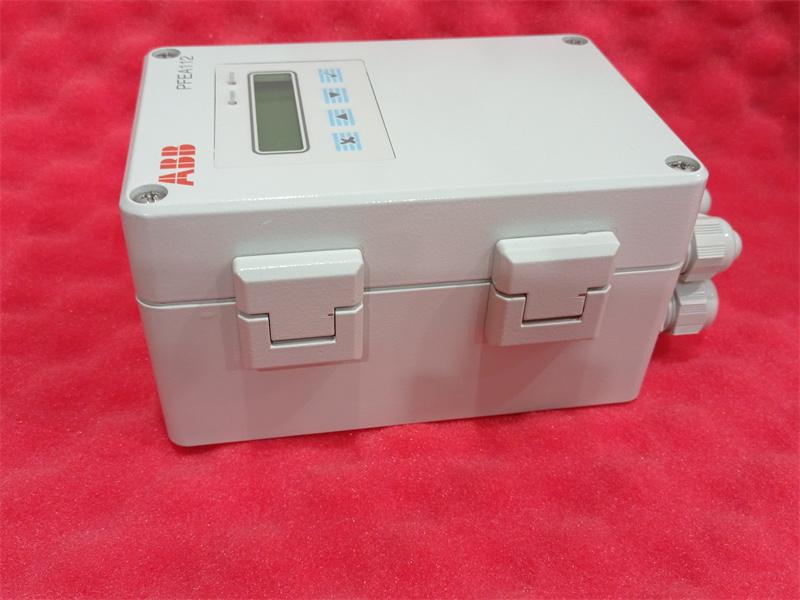

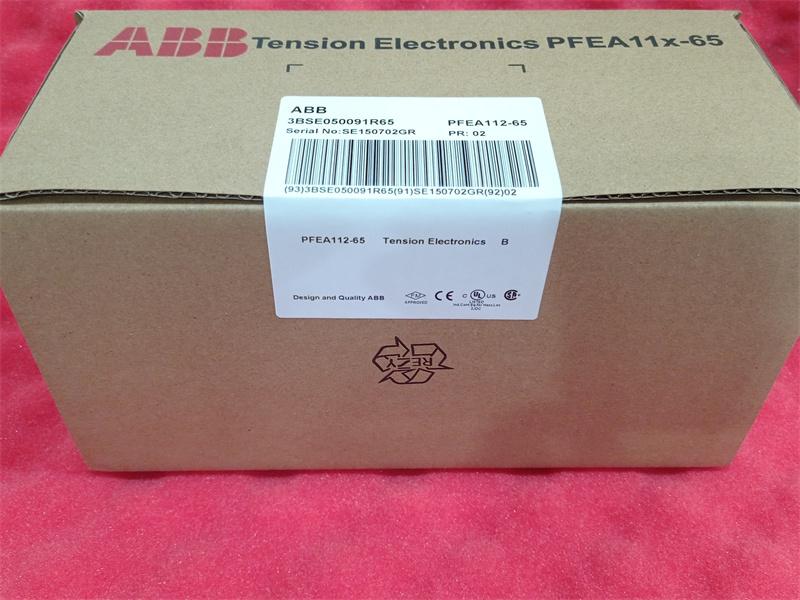

Manufacture |
ABB |
|
Model |
PFEA112-65 |
| PN No. |
3BSE050091R65 |
|
Catalog |
PFT100 |
|
Description |
Tension Electronics |
| Origin | Sweden |
| HS CODE |
85389091 |
| Dimension |
32*22*8 (CM) |
| Weight | 1 kg |
Description:
The ABB-PFEA112-65-3BSE050091R65 module, part of ABB's Process Automation System (PAS) product line, is a high-performance, multifunctional data acquisition module. It converts analog and digital signals from various field devices into digital signals and transmits them to a higher-level controller via an RS485 or Ethernet interface. This module is widely used in industrial automation, power systems, environmental monitoring, and other fields.
Parameters:
Product ID: 3BSE050091R65
ABB Type Designation: PFEA112-65
Measuring range: 45 Hz to 65 Hz
Setpoint: 50 Hz
Accuracy: ±0.2% FS
Response time: ≤0.5 s
Output contacts: 1 NO, 1 NC
Contact rating: 250 V AC/DC, 10 A
Operating temperature: -20°C to 55°C
Protection rating: IP67
Number of interfaces: Typically one or two Ethernet ports.
Interface type: RJ45 8P8C connector.
Transmission rate: 10/100 Mbps (auto-sensing), or 100 Mbps.
Features:
- Receiving Instructions
Receives instructions such as production tasks, motion program calls, and I/O signals from the PLC, SCADA system, or host computer.
Provides real-time feedback to higher-level systems regarding production status, fault information, output counts, and process data (such as force control data and visual inspection results).
Enables precise collaboration with other equipment, such as robots, AGVs (Automated Guided Vehicles), and CNC machine tools.
Supports remote access, program monitoring, and diagnostics, significantly improving maintenance efficiency.
- Communication Interfaces
The controller typically features multiple communication interfaces for data exchange and communication with other equipment or the host control system. These interfaces can utilize standard digital communication protocols such as RS-232 or RS-485.
The controller typically features a display and operation panel, allowing the user to monitor tension control status in real time and set and adjust parameters.
The ABB PFEA112-65 may have programmable functionality, allowing the user to customize settings and control strategies based on actual needs.
ABB's products generally undergo strict quality control and testing to ensure their high reliability and stability, thus meeting the requirements of industrial production.
Datasheet Link:
PFEA112-65 ABB 3BSE050091R65 Tension Electronics Pdf Datasheet
