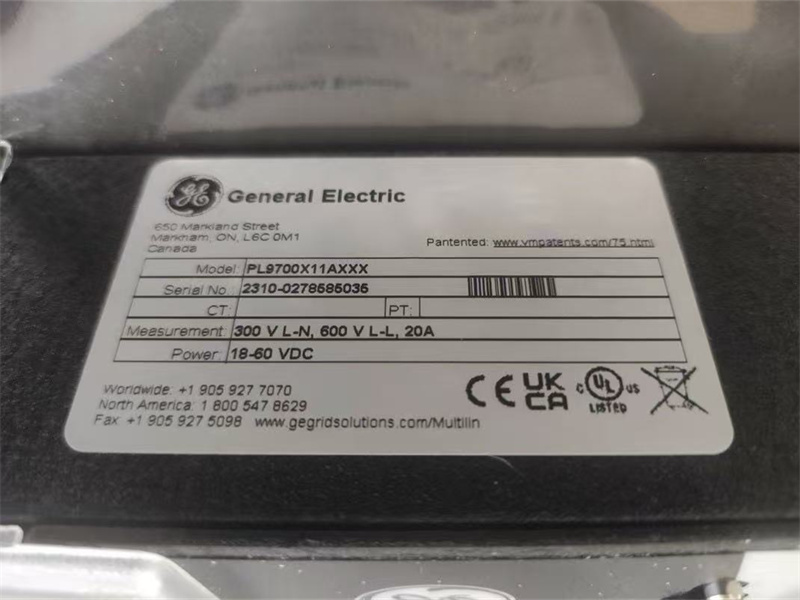

PL9700X11AXXX(PL9700-X-1-1-A-X-X-X) GE High Performance Power Quality Metering

Description:

PL9700X11AXXX(PL9700-X-1-1-A-X-X-X) GE High Performance Power Quality Metering with Advanced Logging and Communications

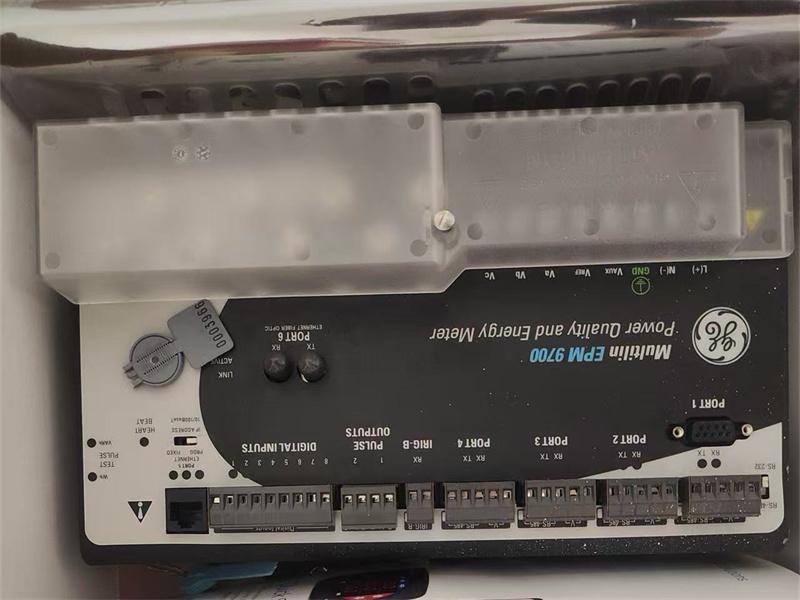

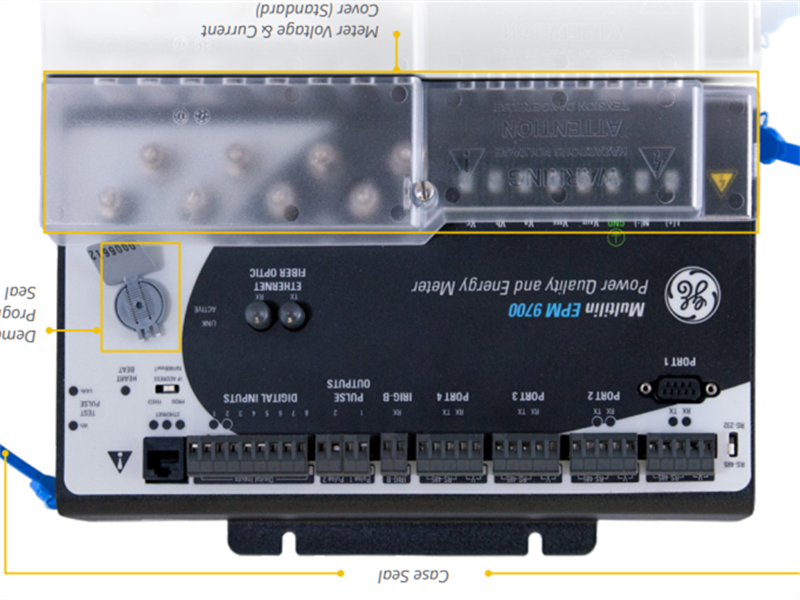

The Multilin™ EPM 9700 is a high performance power quality meter with advanced logging capabilities and flexible communication options. As a member of GE’s EPM meter family, the EPM 9700 provides a comprehensive picture of power quality and consumption for metered points within an electrical system, empowering users to make power related analysis and decisions quickly and effectively, as well as recording data for accurate reconciliation.

The versatile transducer and optional display installation, along with comprehensive and innovative metering and communication features, makes the EPM 9700 ideal for utility, industrial and commercial power quality applications.

The EPM 9700 is also an enhanced, direct retrofit upgrade replacement for the EPM 9450/9650.

Key Benefits
• Ideal for revenue and power quality monitoring with high resolution waveform recording (up to 1024 samples/cycle) and high accuracy 0.06% watt-hour energy metering with demand and time of use capture
• Improved metrology uses high and low gain sensors for high 0.06% accuracy as well as installation flexibility using both 1A and 5A secondary CTs
• Large 1.2GB logging memory makes it possible to log years of captured data
• Easy integration with standard 6 ports (4 serial/2 Ethernet) of flexible communications options and protocol support for simultaneous Modbus and DNP3 communications
• Post Installation upgradable for future requirements with modular communications external I/O and software option functionality upgrades
• Separate meter unit and optional display for flexible and easy installation
• Direct upgrade for EPM 9450/9650 with same wiring/cutout for meter unit/display installation

Applications
• Power quality alarming/event capture for utility or industrial event investigation/reconciliation, ensuring uptime and predictive maintenance for critical power quality sensitive assets utility substation, data centers, manufacturing, hospitals
• Revenue energy billing or reconciliation (demand, time of use) and for utility or industrial applications
• High speed data capture and control in applications such as generation or renewables
• Specialized utility/industrial power quality reporting for Class A IEC 61000-4-30 Ed. 3, IEC 61000-4-15 Flicker, IEC 61000-4-7 Harmonics and EN50160 standards

Advanced Monitoring and Metering
• 0.06% Energy Accuracy (ANSI 0.2% Accuracy Class)
• Harmonics to the 511th order voltage, current, 127th order in real time
• Up to 1024 samples/cycle based measurements
• Up to 1.2 GB of logging memory with default preconfigured logging of 142 essential parameters
• Updated IEC 61000-4-30 Class A Edition 3 Power Quality Measurement and EN50160 Reporting Support

Advanced Communications and Control
• 6 standard communications ports supporting serial (RS232, RS485); Ethernet(RJ45, ST Fiber Optic independent ports,unique IP)
• Support for Modbus, DNP 3.0 protocols
• Easy system integration with standard pulse outputs and digital inputs as well as expandable external analog, digital and relay outputs

User Friendly with Low Commissioning Effort
• Advanced Web Server for data visualization and waveform Analysis
• Automated logging architecture to capture default logging values
• Separate meter unit and optional 3 line P40NPLUS LED display for easy and cost effective installation
• Direct retrofit upgrade for EPM 9450/9650

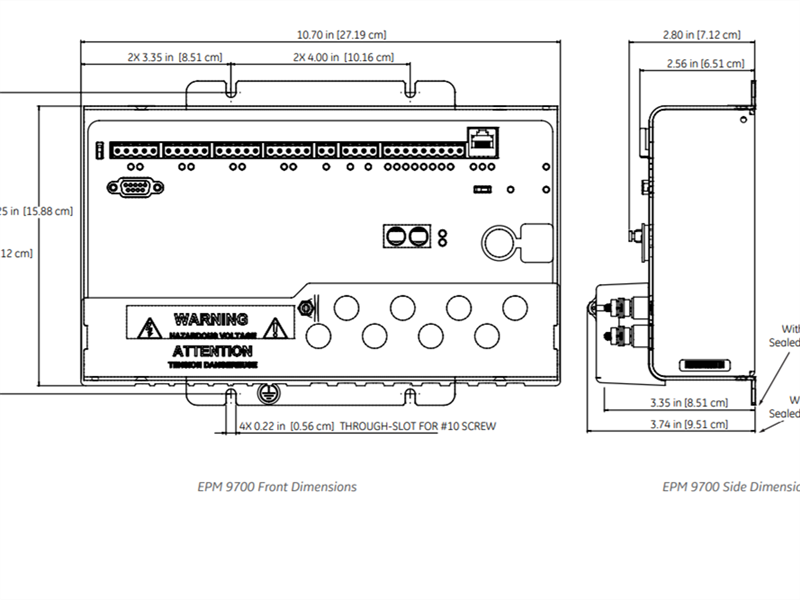

Dimensional Drawing – EPM 9700 Meter Base

FREQUENTLY ASKED QUESTIONS:
1.What is VOLTAGE INPUT RANGE of PL9700X11AXXX?
• (20 to 720) V AC
• Pickup voltage: 5 V AC

2.What's CONTROL POWER REQUIREMENTS of CONTROL POWER REQUIREMENTS:?
•Option 0: Universal (100-240) VAC @50/60 Hz or (100-240) VDC
• Option 1: 18 to 60 VDC
• Burden: 20 VA max w/o I/O or display; 40 VA max with I/O and display

Datasheet Link:

PL9700X11AXXX(PL9700-X-1-1-A-X-X-X) GE High Performance Power Quality Metering PDF Datasheet
