Manufacture |
ABB |
|
Model |
PM150V08 |
| PN No. |
3BSE009598R1 |
|
Catalog |
AC410 |
|
Description |
Processor Module |
| Origin | Sweden |
| HS CODE |
85389091 |
| Dimension |
23*10*22(CM) |
| Weight | 2.85 kg |
Description:

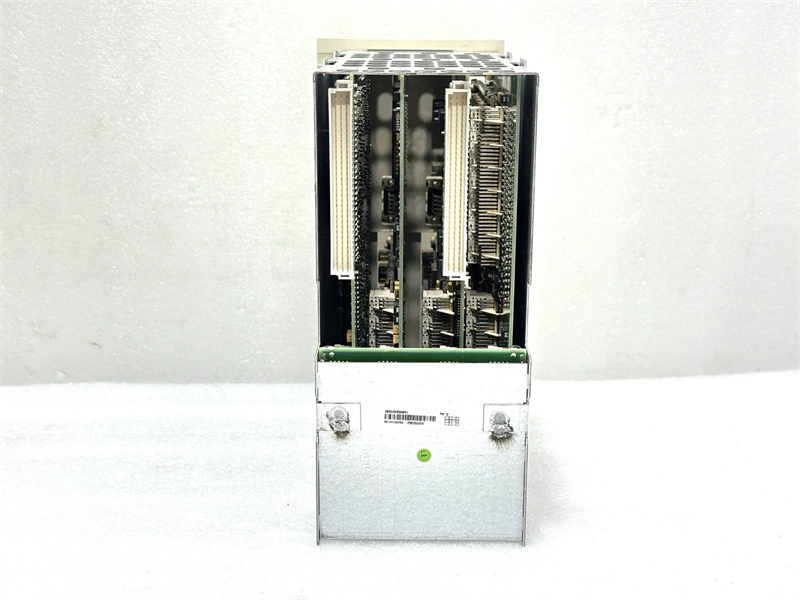

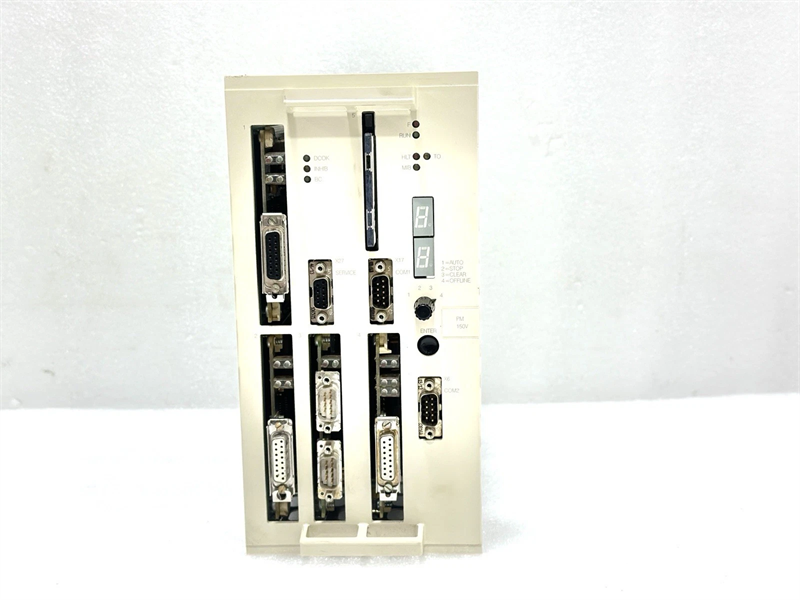

The Safeguard 410 consist of two identical branches. For each branch the processor module and S100 I/O cards are fitted into the same central S100 I/O sub-rack. The processor module used are named PM150V08 and has the following characteristics:

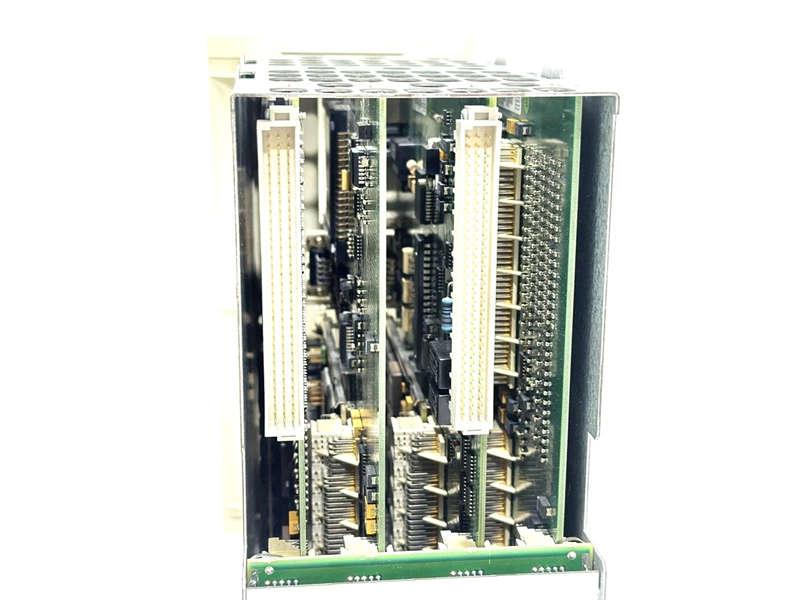

1. The CPU board contains a Motorola MC68020 processor and dynamic 8 MB read/write memory (RAM) with ECC (Error Correction Circuit). The memory houses the system software as well as the user application.
2. One slot for flash memory Program Card holding the Safeguard system software which contain the following:
a. Basic version: QC01-BAS11, QC01-LIB11, QC01-OPF11 and OC05-BAS11
b. Options available: QC01-LIB12, QC01-UDP11, QC05- CEM11, QC05-FIE01, QC05-GIS11, QC05-FIA11
3. Two CS513 sub-modules for redundant MasterBus 300 connection

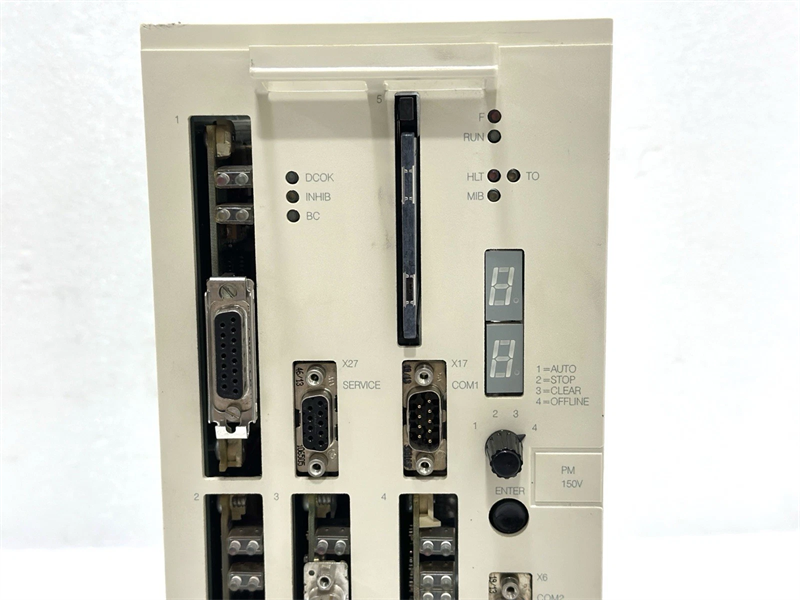

4. Two RS-232-C ports dedicated for printer and MasterView 320
5. One port dedicated for connection of Advant Station 100 Series Engineering Stations
6. Two free slots for sub-modules
7. Direct access to up to 15 S100 I/O cards located in the Central S100 I/O together with the Safeguard 410 processor module
8. Direct access to Fireguard, Gasguard and Autronica addressable fire/gas detector systems.
Package including:
1 pcs PM151
1 pcs PM152
1 pcs PM153
1 pcs PM154
1 pcs CI541V01
1 pcs CI570
1 pcs CS513
1. The CPU board contains a Motorola MC68020 processor and dynamic 8 MB read/write memory (RAM) with ECC (Error Correction Circuit). The memory houses the system software as well as the user application.
2. One slot for flash memory Program Card holding the Safeguard system software which contain the following:
a. Basic version: QC01-BAS11, QC01-LIB11, QC01-OPF11 and OC05-BAS11
b. Options available: QC01-LIB12, QC01-UDP11, QC05- CEM11, QC05-FIE01, QC05-GIS11, QC05-FIA11
3. Two CS513 sub-modules for redundant MasterBus 300 connection
4. Two RS-232-C ports dedicated for printer and MasterView 320
5. One port dedicated for connection of Advant Station 100 Series Engineering Stations
6. Two free slots for sub-modules
7. Direct access to up to 15 S100 I/O cards located in the Central S100 I/O together with the Safeguard 410 processor module
8. Direct access to Fireguard, Gasguard and Autronica addressable fire/gas detector systems.
Package including:
1 pcs PM151
1 pcs PM152
1 pcs PM153
1 pcs PM154
1 pcs CI541V01
1 pcs CI570
1 pcs CS513
Features and benefits
- Input Current / Voltage: ±13 mA; 24 V DC or 5 V DC
- Key Functions: Direction detection using a secondary speed input and built-in overspeed trip logic.
- Outputs: Solid-state (24 V DC) and dry contact (60 V DC) trip signal outputs.
- Isolation: Individually opto-isolated speed inputs and solid-state outputs.
Frequently Asked Questions:
1.Does the customer arrange for the inspection before the goods are shipped?
Confirmed acceppted this issue
2.What is the payment term?
Only wire transfer
3.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
PM150V08 ABB 3BSE009598R1 Processor Module 8 MByte PDF Datasheet
