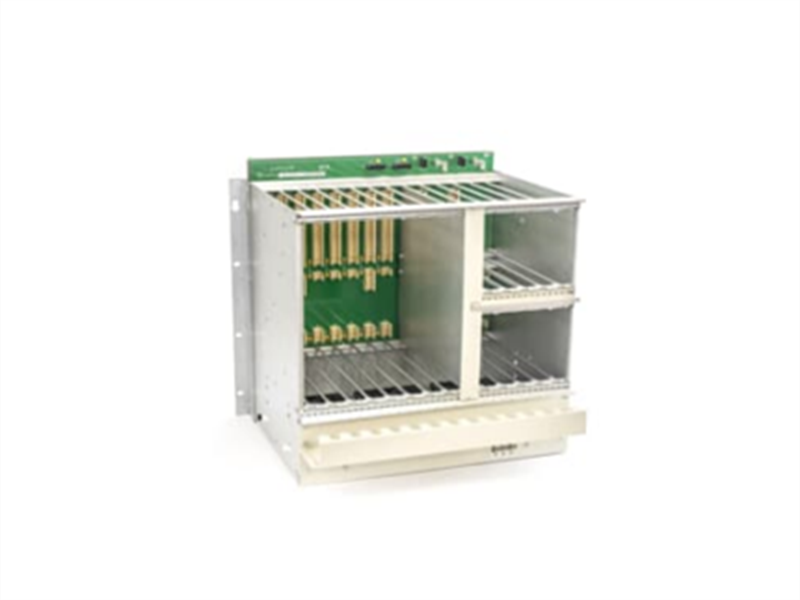

RF533 ABB 3BSE014227R1 Backplane

Description:

The ABB RF533 (Part No. 3BSE014227R1) is a 12-slot subrack featuring an integrated BB510 backplane,purpose-built for the Advant Controller 450 series. It provides both mechanical housing andelectrical distribution for core control and I/0 modules in distributed industrial automationsystems.

Additional Information

Parameters:

Product Name: RF533

Product Type: Subrack with integrated backplane
Slots: 12 SU (Subrack Units)
Operating Voltage: 24 V DC
Power Rating: Up to 240 V DC (system dependent)
Current Rating: 3.6 A
Mounting: Rack-mounted (standard 19-inch format)
Protection Class: IP20
Country of Origin: Sweden / Germany / Finland
OperatingTemperature: -40°C to +85°C

Features:

• Modular Housing

Supports processor, 1/0, and communication modules in a centralized rack

• Signal Distribution

BB510 backplane routes data, control signals, and power across modules

• Robust Construction

Ensures vibration resistance and mechanical reliability in industrialsettings

• Redundancy Support

Enables dual-channel configurations for fault-tolerant applications

• Protocol Compatibility

Interfaces with Profibus DP, Modbus RTU, and more via controller modules

Datasheet Link:

RF533 ABB 3BSE014227R1 Backplane PDF Datasheet
