RLC16 Vibration 200-570-000-111 Machinery Protection Relay Card

Item NO.:
RLC16
Payment:
T/T
Market Price:
$2580
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
2
Product weight:
0.3 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	RLC16
PN No.	200-570-000-111
Catalog	NIL
Description	Relay Card
Origin	Switzerland
HS CODE	85389091
Dimension	26.212.52 (CM)
Weight	0.3 kg

Description:

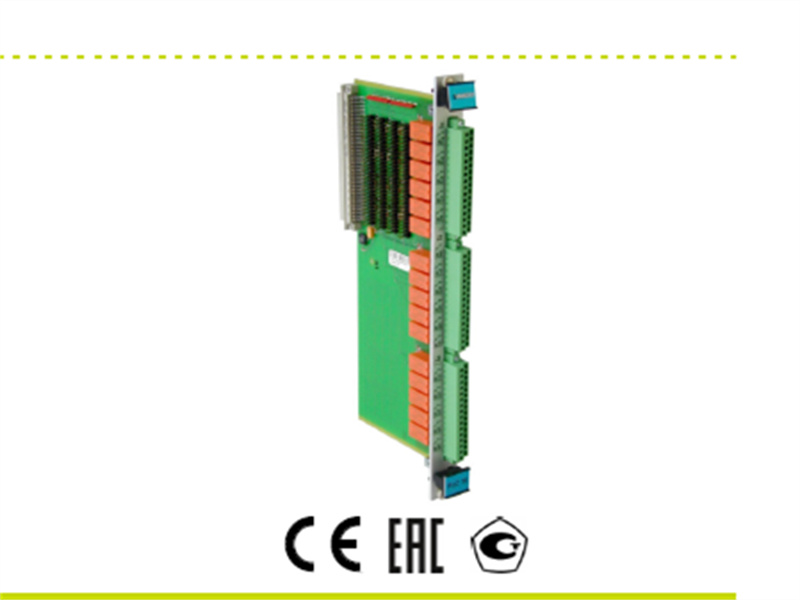

The RLC16 relay card is designed for use in the VM600 series of machinery protection systems and condition and performance monitoring systems, from Meggitt’s Vibro-Meter® product line. It is an optional card, for use when the four relays on the IOC4T input /output card are insufficient for the application and additional relays are required.

The RLC16 is installed in the rear of a VM600 rack (ABE04x or ABE056) and connects directly to the rack backplane via a single connector.

The RLC16 contains 16 relays with change-over contacts. Each relay is associated with 3 terminals on a screw-terminal connector accessible at the rear of the VM600 rack.

The relays are controlled by open-collector drivers under software control. Jumpers on the RLC16 card allow the selection of relay normally energized (NE) or normally de-energized (NDE).

For further information on the use of RLC16 cards in general, refer to the VM600 machinery protection system (MPS) hardware manual and the VM600 MPSx software manuals.

FEATURES

• From the Vibro-Meter® product line
• Relay card with screw-terminal connectors
• 16 relays with change-over contacts
• Relay driver inverter logic (jumper selectable)
• Low contact resistance
• Low capacitance
• High through power
• Live insertion and removal of cards (hot-swappable)
• Conforms to EC standards for EMC

BLOCK DIAGRAM

RLC16 Drawings

Ordering Number:

Type	Designation	Ordering number (PNR)
RLC16	Different versions of the VM600 relay card:
	Standard version	200-570-000-1Hh
	– Separate circuits version	200-570-000-2Hh

Frequently Asked Questions:
1.What's Contact arrangement of RLC16?
1x COM, 1x NC and 1x NO contact/relay.
All relay contacts are available on J1, J2 and J3.

2.What‘s Maximum breaking capacity of RLC16?
1250 VA
