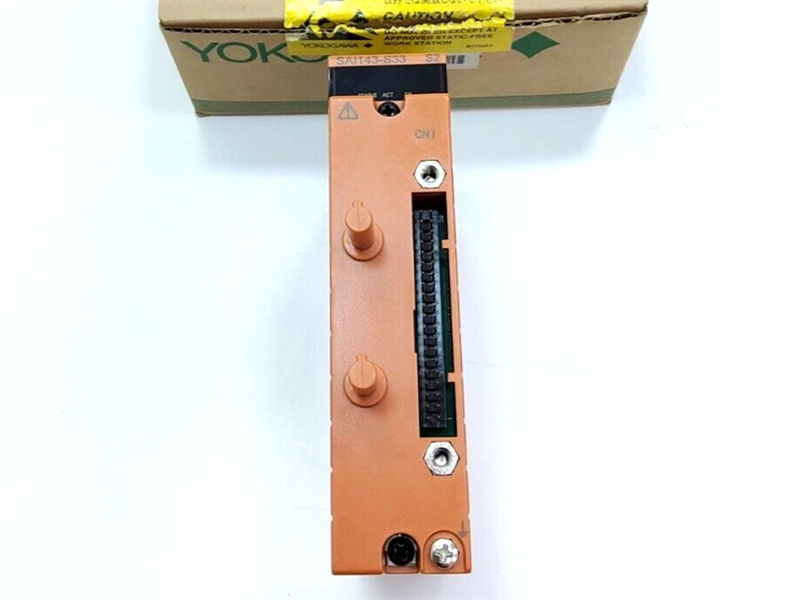

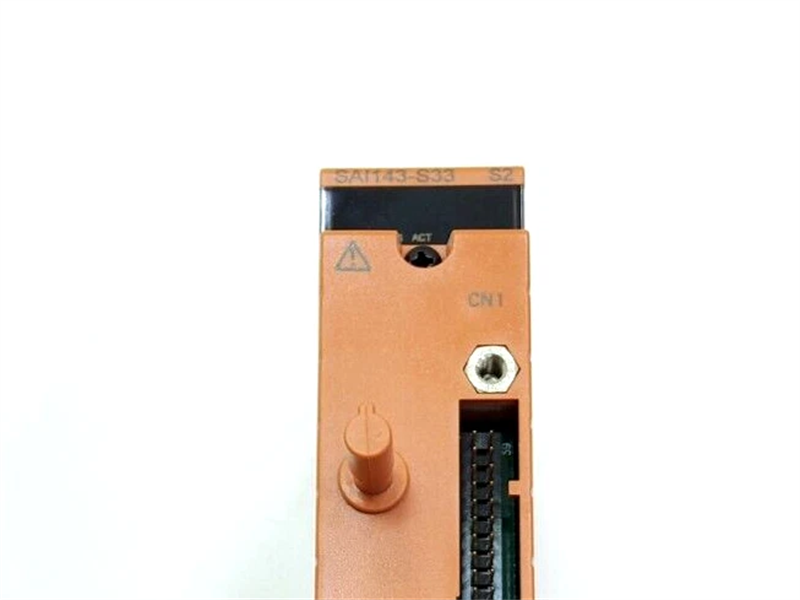

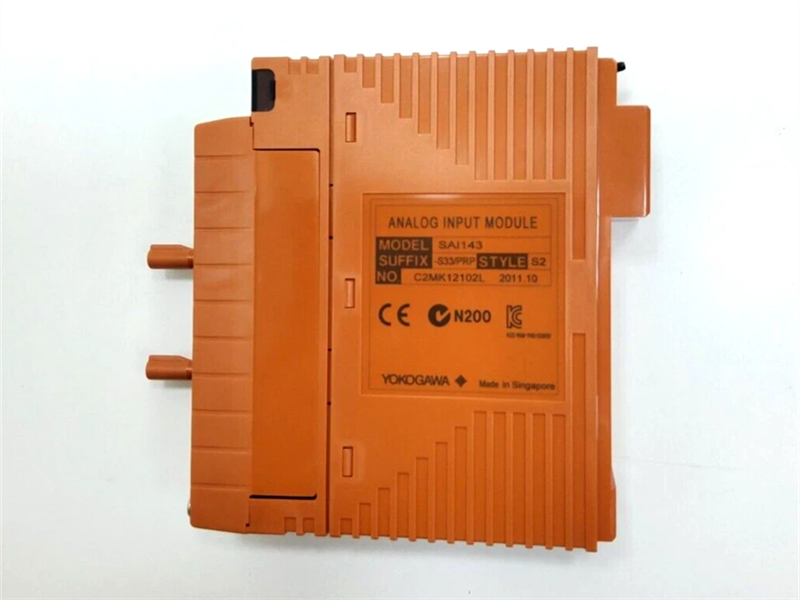

SAI143-S33 Yokogawa Analog I/O Modules

Description:

Current Input Module
This module inputs 4 to 20 mA signals from the field.
The SAI143 can be made dual redundant

FEATURES
• High performance and low power consumption modular controller
• Memory with ECC.
• FCN-RTU can be used wide temperature range and high altitude place.
• Analog and digital I/Os adequate for gas/oil wellhead control built in CPU module
• Four serial ports for plural communications built in CPU module
• Up to eight additional I/O modules (with NFBU200)
• Wide voltage range (10 to 30 VDC input) power supply module (NFPW426)
• Power supply module can be duplexed (NFBU200 with NFPW444)
• Low heat dissipation eliminates the need for a fan
• A wealth of RAS features — CPU self-diagnostics, temperature monitoring, I/O diagnostics, and more
• Additional I/O modules (except CPU embedded I/Os) hot-swappable

Specifications:
Model SAI143 (*1)
Number of input channels 16-channel, module isolation (*5)
Rated input range 4 to 20 mA
Permissible input range 0 to 25 mA

Rated accuracy

SAI143-S : ±16 µA (Input range 1 to 23 mA)
SAI143-H : ±16 µA (Input range 0.05 to 23 mA) (*3) (*4)
Data update frequency 40 ms
Temperature drift ±16 µA/10 °C
Weight Approx.

0.34 kg (For pressure clamp terminal block or MIL cable)
Approx. 0.39 kg (With signal cable interface adapter)
External connection
Pressure clamp terminal
MIL cable
Dedicated signal cable
Support PRM Available (SAI143-H)

Frequently Asked Questions:

Q1: What is the primary function of the NFPW444-50?
FCN-RTU Low Power Autonomous Controller Hardware systems.

2.What is the payment term?
Only wire transfer

3.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

SAI143-S33 Yokogawa Analog I/O Modules PDF Datasheet
