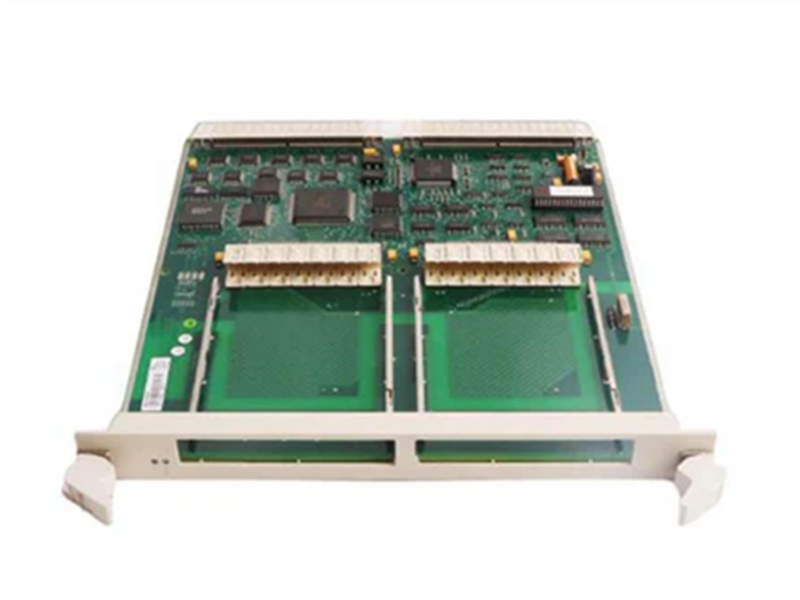

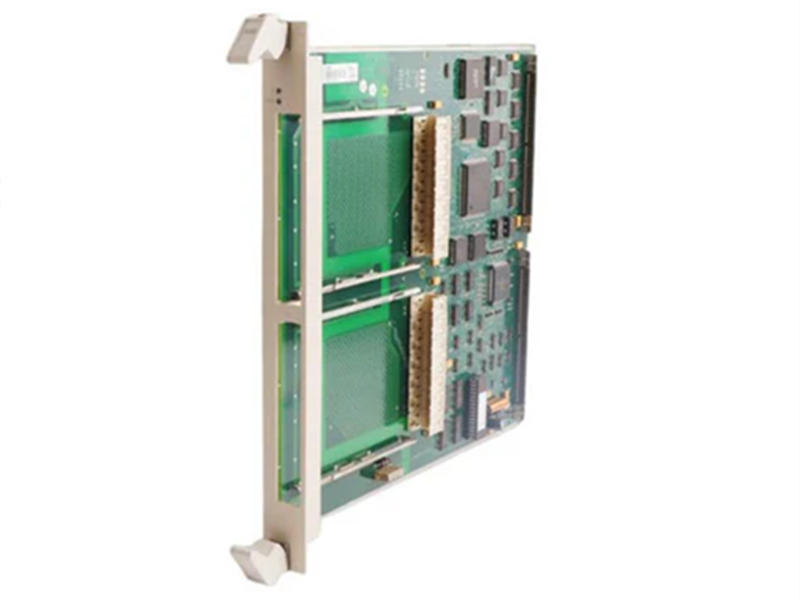

SC520 ABB 3BSE003816R1 Submodule Carrier

The 3BSE003816R1 is an ABB SC520 Submodule Carrier with a local CPU,supporting MB300 and MB300E systems. It also offers an option for a coatedmarine-classified unit (SC520M).It designed for advanced communication within ABB automation systems. It supports MB300 and MB300Ecommunication protocols and is suitable for demanding industrial environments, including marineapplications.

It is a modularplatform that can be used to add additional functionality to the system, such ascommunication modules, I/O modules, and motion control modules. The SC520 iscompatible with the SC510 submodule carrier, so it can be used to upgrade existingsystems.

Parameters:

Product ID:3BSE003816R1
Model: SC520
Product Type: Communication_Module
Catalog Description: Submodule Carrier incl. local CPU
System Support: MB300, MB300E communication networks
Alternative Version: SC520M (3BSE016237R1) - coated marine classified unit

Operating Temperature Range:5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range:-40°C - 60°C (-40°F - 140°F)
Operating Relative Humidity Range: 8% - 90% (non-condensing)
Non Operating Relative Humidity Range: 5% - 95% (non-condensing)
Power Efficiency:91%
Total Output Power and Input: 200W with Input 100 - 240Vac
AC Input Frequency: 50-60Hz
Features:

• Modular Design

Employs a modular design, allowing users to easily insert different functional modules as needed.

• Flexible Configuration

System functionality can be customized by inserting different modules to meet various application requirements.

• High Reliability

Utilizes high-quality components, ensuring high reliability.

• Standardized Interface

Complies with industry standards, facilitating integration with other devices.
-Supports MB300 and MB300E modules.
-Built-in local CPU enhances processing power.
-Compatible with marine coating and certification equipment.
-Exempt from RoHS Directive 2011/65/EU under specific conditions.

Datasheet Link:

SC520 ABB 3BSE003816R1 Submodule Carrier PDF Datasheet
