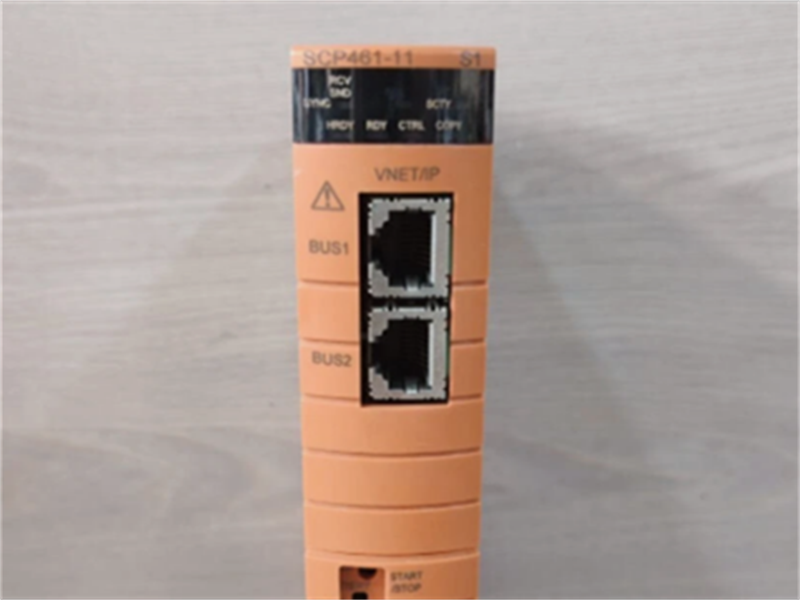

SCP461-11 S1 Yokogawa Processor Input Digital Module 16-Channel 300 mA 24 V DC Central Processing Unit Module

Description:

The YOKOGAWA SCP461-11 S1 is a high-performance, programmable signal conditioner module designed for industrial automation and control systems.

It belongs to the SCP400 series and is engineered to provide precise signalconditioning, ensuring reliable data acquisition and control. This module iscapable of handling various input types, including voltage, current, andthermocouple signals, making it versatile for different industrialapplications. The SCP46l-11 S1 is known for its robust design, high accuracy,and ease of integration into existing systems. It is widely used in industriessuch as manufacturing, energy, and process control where precise signalprocessing is crucial.

Specifications:

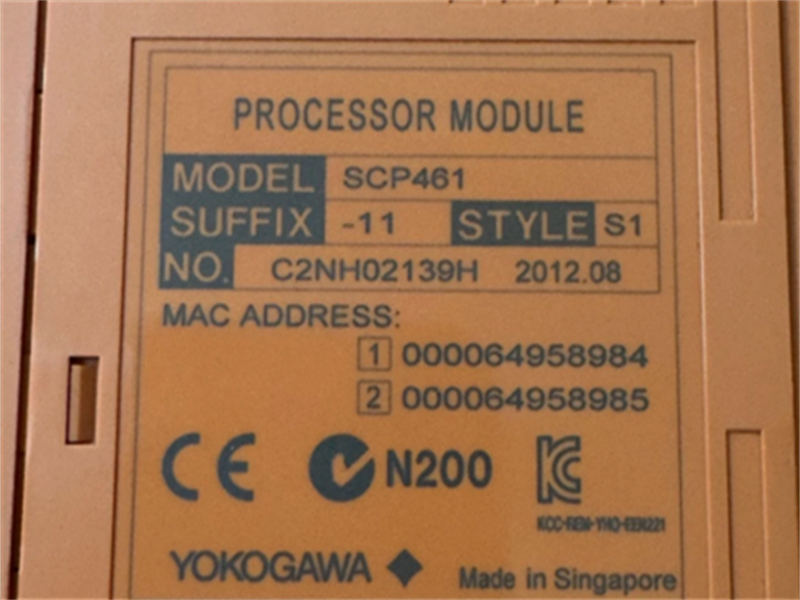

Product Name: SCP461-11 S1
Processor: 32-bitType: Central Processing Unit(CPU) Module
Processor Power: Ensures efficient real-time data processing for control applications.
Memory Protection: The application program stores in flash memory, while operation data stores in NVRAM.
Safety Integrity Level: Achieves SIL 3 for high safety standards.
Module Configuration: Supports dual-redundant configuration for enhanced reliability.
Communication Flexibility: Compatible with various protocols,enabling diverse device connectivity.
Operating Temperature Range: -10C to 60C
Storage Temperature Range: -20C to 70C
Input Types: Voltage, Current, Thermocoupl
Input Range: Voltage:100mV to10V, Current:4-20mA
Output Range:Voltage: 0-10V, Current:4-20mA
Accuracy: t0.1%o of full scale
Response Time: 250 ms
Power Supply:24V DC
Isolation Voltage: 1500V A

Features:

• High Accuracy

Ensures precise signal conditioning with minimal error.

•  Multi-Input Capability

Supports various input types such as voltage,current, and thermocouples.

• Programmable

Easily programmable to suit specific applicationrequirements.

• Robust Design

Built to withstand harsh industrial environments.

• Compact Size

Space-efficient design for easy installation.

• Isolation

Electrical isolation between input, output, and power supply forsafety and signal integrity.

• LED Indicators

Status LEDs for power, input, and output conditions.

Datasheet Link:

SCP461-11 S1 Yokogawa Processor Input Digital Module 16-Channel 300 mA 24 V DC Central        Processing Unit Module PDF Datasheet
