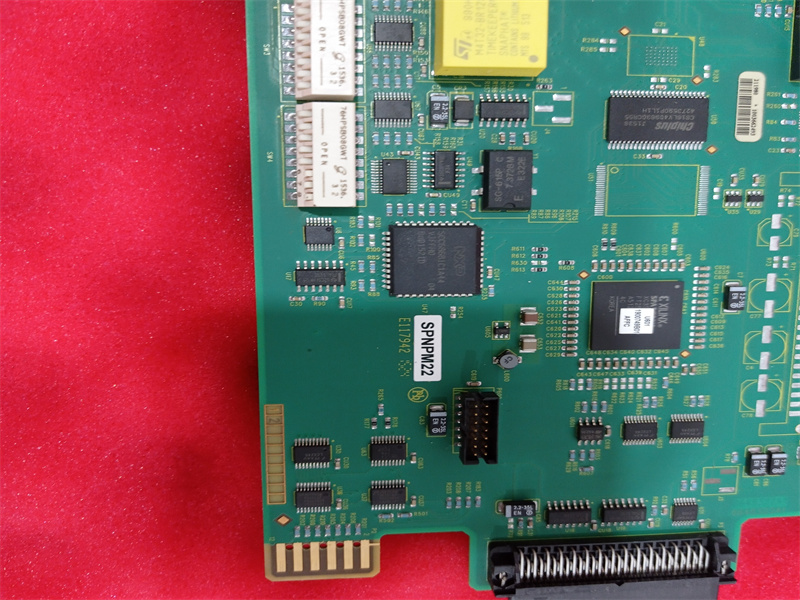

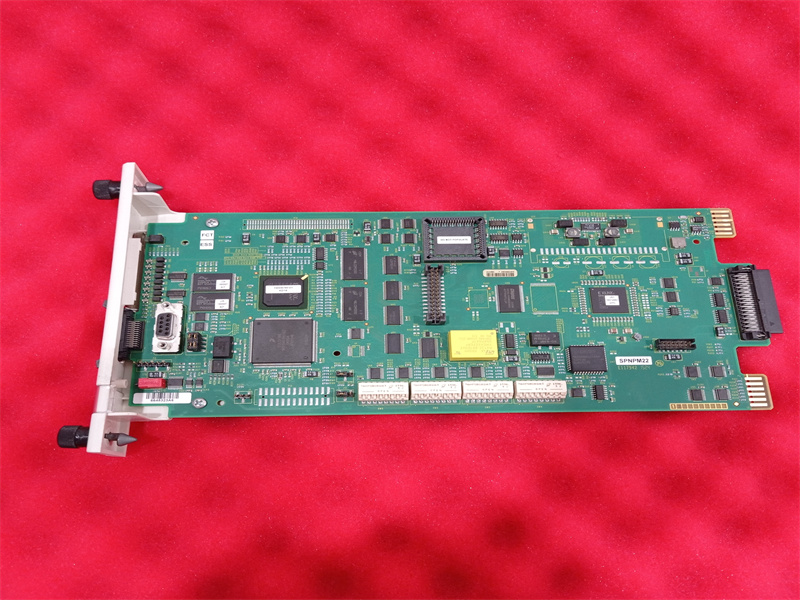

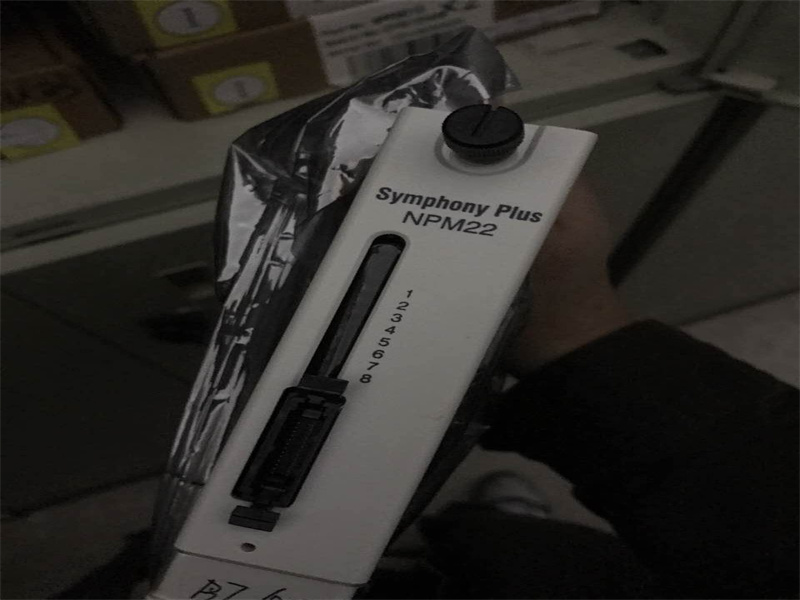

SPNPM22 ABB Network Processing Module

Description:

The ABB SPNPM22 network processing module is the gateway between Cnet and Controlway. It holds the Harmony control unit (HCU) database and directs the communication process between the modules residing on Controlway and the SPNIS21 module.
Features：

• High-speed communication

• Various communication protocols

 This module supports various communication protocols such as Profibus DP, DeviceNet, CANopen and Ethernet, which enables it to be seamlessly integrated into various industrial automation systems.

• Flexible configuration

 users can adjust the processor frequency, cache size and other parameters according to specific needs to optimize performance.

• High reliability

SPNPM22 adopts high-quality components and strict manufacturing process, which has high reliability and stability and is suitable for harsh industrial environment.

• Security features

The module is equipped with advanced security functions to protect key data from network threats and comply with industry standards and regulations.
Parameters:
Channels: 8
Resolution: 16-bit
Accuracy: ±0.1% FS
Isolation: Channel-to-channel
Current input: ≤250Ω (4-20mA)
Voltage input: ≥100kΩ
Common-mode rejection ratio: ≥120dB
Operating temperature: -25°C to +70°C
Power consumption: 1.5W
Operating voltage: typically 220V
Operating temperature range: -20°C to +60°C
Storage temperature range: -40°C to +85°C

Datasheet Link:

SPNPM22 ABB Network Processing Module PDF Datasheet
