Manufacture |
ABB |
|
Model |
TB850 |
| PN No. |
3BSC950193R1 |
|
Catalog |
AC800M |

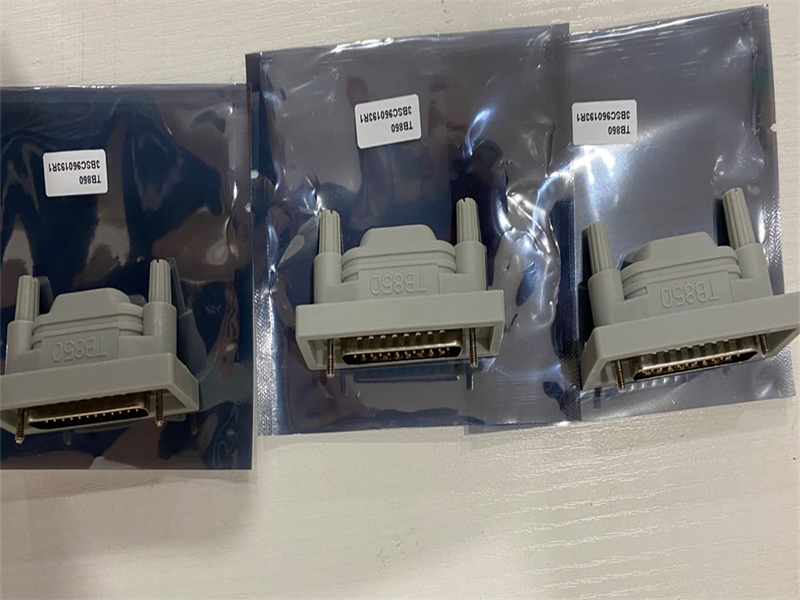

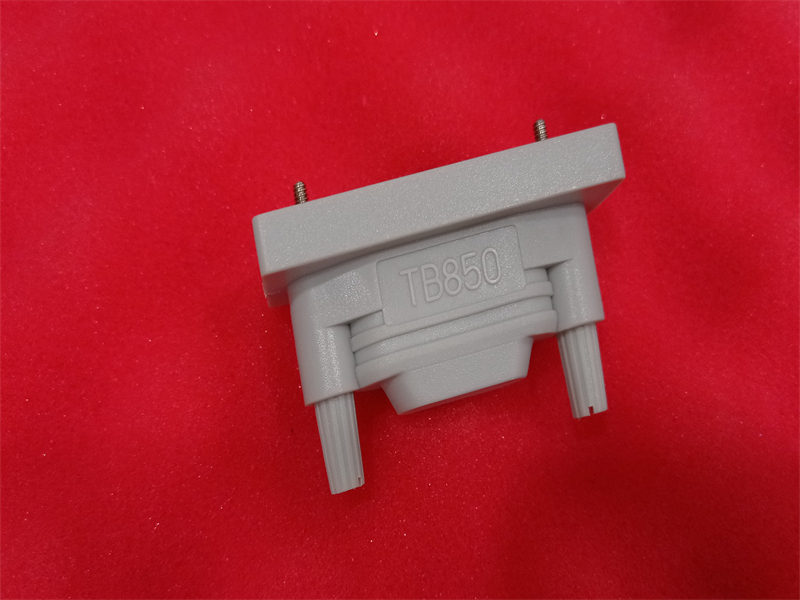

| Description | CEX-Bus Terminator |
| Origin | Sweden |
| HS CODE |
853890 |
| Dimension | 5.5*1.6 *5 (CM) |
| Weight | 0.04 kg |
Description:
The ABB TB850 is a module for industrial automation systems, part of the ABB Advant-800xA system. It can be used as an analog expansion module to expand the capacity of analog input and output signals, monitoring and controlling process variables such as temperature, pressure, and flow. It can also serve as a CEX bus terminator to prevent signal reflection and interference, ensuring stable signal transmission.
Parameter:
ProductID:3BSC950193R11
ABB Type Designation:TB8501
Catalog Description:TB850 CEX-Bus Terminator
Long Description: Eauipped wth a 25-pin DB25P male connector and screw fixine,A TB850 CEX-Bus terminator must alwavs be insta led on the last unit on the CEX bus.
Product Type: Prefabricated Cable
Input Voltage: 220V AC.
Output Voltage: 0-10V DC.
Rated Current: 5A.
Rated Power: 50W.
Operating Temperature Range: -10°C to 50°C.
Applications:
Monitors and controls equipment and processes involving analog signals such as temperature, pressure, and flow.
Expands the capabilities of process control systems in process industries such as the chemical, petroleum, and pharmaceutical industries.
- Power Systems
Monitors analog signals from generators, transformers, and other electrical equipment.
Monitors and controls parameters such as temperature and humidity within buildings.
Monitors environmental parameters such as air quality and water quality.
Monitors and controls analog signals from production equipment.
Expands the measurement and control capabilities of analog signals.
Datasheet Link:
TB850 ABB 3BSC950193R1, AC800M, CEX-Bus Terminator PDF Datasheet
