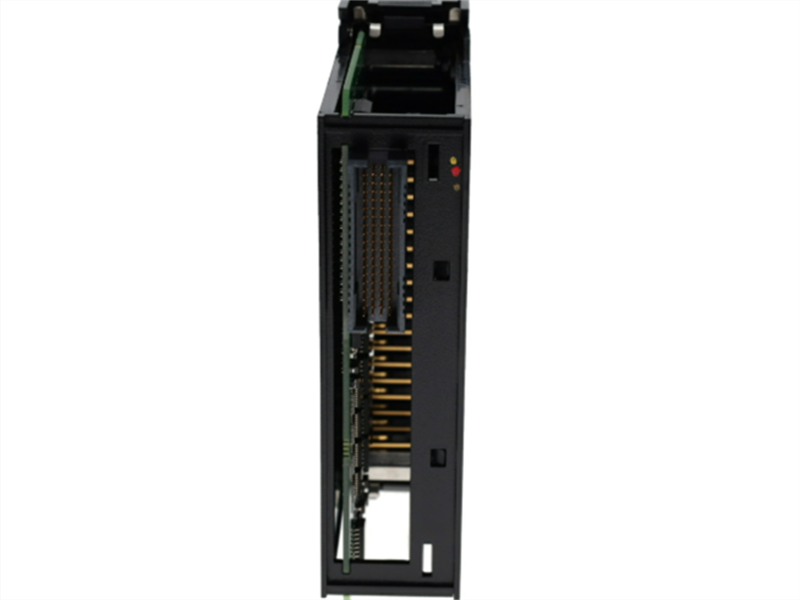

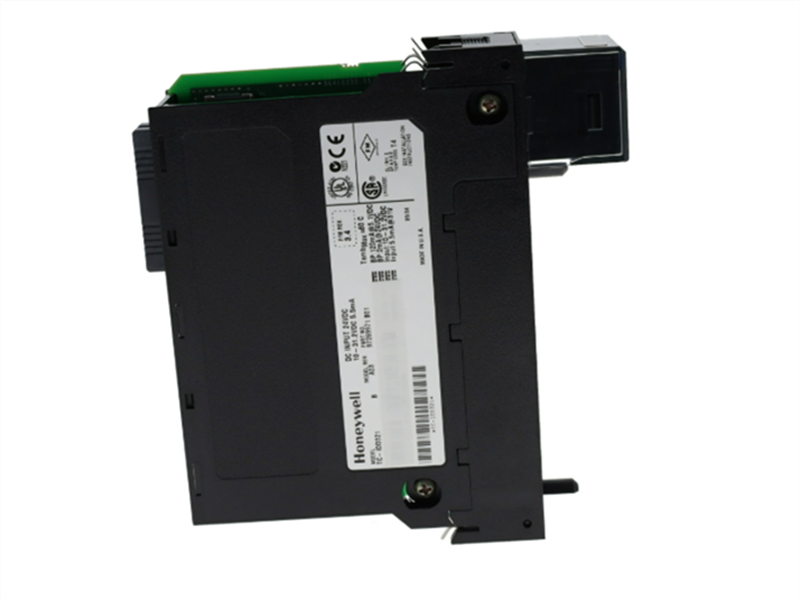

TC-IDD321 Honeywell 32-Point Discrete Input Module

Description:

     The Honeywell TC-IDD321 is an Experion LS I/O module designed for industrial control systems, providing 32 digital input points for reliable signal processing

    The Honeywell PLC TC-IDD321 Input Module is specifically engineered for industrial environments requiring high performance and reliability. It features an advanced controller design optimized for seamless integration into existing systems, enhancing operational efficiency.

    Crafted with durability in mind, this module is built to withstand harsh environmental conditions, ensuring consistent performance even under extreme temperatures and humidity levels. Its robust construction guarantees a long lifespan and minimal maintenance requirements.

Specifications:

Number of Inputs: 32 (16 points/common)
Input Voltage Range: 10-31.2 VDC @ 60°C all channels
Nominal Input Voltage: 24 VDC
On-State Current (Minimum): 2 mA
Off-State Voltage (Maximum): 5V
Off-State Current (Maximum): 1.5 mA
Input Compatibility: IEC Type 1+
Temperature Range:-40°C to +70°C
Enclosure Type:IP65

Features:

• Multi-Voltage Output

Powers various modules within Honeywell chassis systems

• Wide Input Range

Supports global voltage standards for flexible deployment

• Compact Design

Fits easily into control cabinets and rack systems

• Industrial Durability

Built for continuous operation in harsh environments

• Integrated Protection

Includes fuse protection for enhanced safety

Datasheet Link:

TC-IDD321 Honeywell 32-Point Discrete Input Module PDF Datasheet
