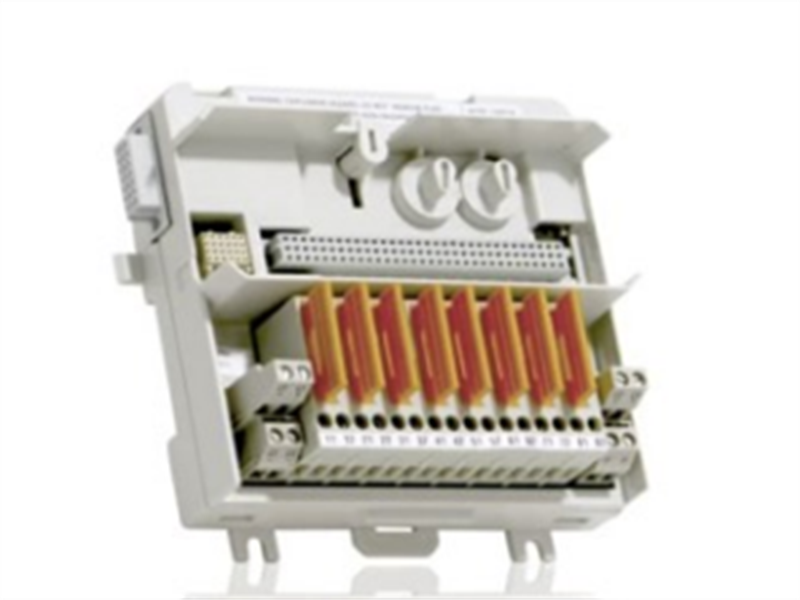

TU835V1 ABB 3BSE013236R1 Extended MTU Terminal Block Module

Description:

The TU835/TU835V1 is a versatile 8-channe, 50V Extended Module Termination Unit MTU) designed foruse with A88 s800 /0 systems. The maximum rated voltage is 50V and maximum rated current is 2 A per channel.

The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be released with a screwdriver.

Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. it conects field wiring to lo modulesand distributes the ModuleBus to the next MTu.With a robust DIN rai mounting system and mechanical keying, it ensures secure and easy configuration.ldealfor applicationsrequiring reliable signal distribution and power connections in industrial environments.

Parameters:
Article number: 3BSE013236R1
Connection: Terminal block
Channels:8
Voltage: 50 VMounting: Both directions
Operating temperature: 0 to +55°C(+32 to +131°F)
Maximum current per l/O channel: 2 A
Maximum current process connection: 8 A
Dielectric test voltage: 500 V a.c.
RStorage temperature: -40 to +70°C(-40 to +158°F)
Relative humidity: 5 to 95%,non-condensing
Protection class:lP20

Features：

-Up to 8 channels of field signals and process power connections.
-Each channel has one fused transducer power terminal and one signal connection.
-Process voltage can be connected to 2 individually isolated groups.
-Connections to ModuleBus and I/O modules.
-Mechanical keying prevents insertion of the wrong I/O module.
-Latching device to DIN rail for grounding.
-DIN rail mounting.
