Manufacture |
ABB |
|
Model |
TU890 |
| PN No. |
3BSC690075R1 |
|
Catalog |
S800 |
|
Description |
compact MTU |
| Origin | Sweden |
| HS CODE |
85371098 |
| Dimension |
19.4*5.8*6.4 (CM) |
| Weight | 0.17 kg |

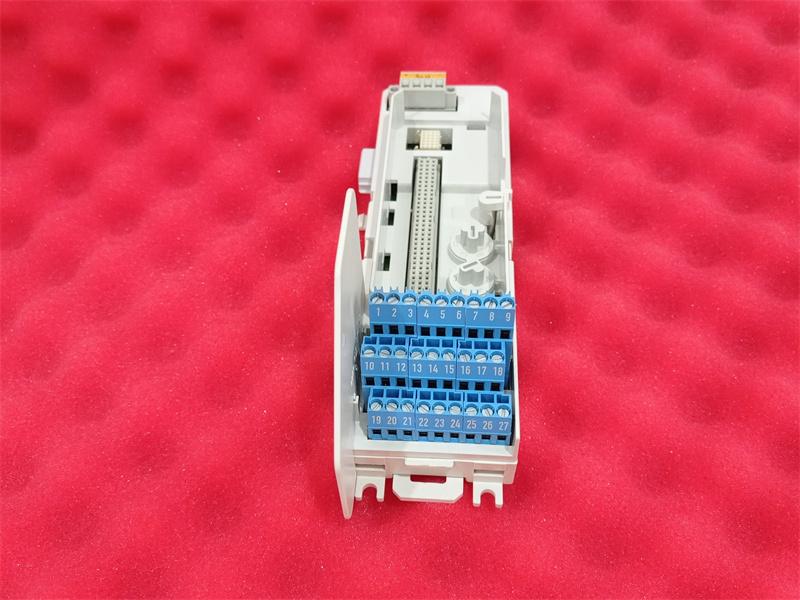

Description:
The TU891 is a compact MTU for the S800 I/O. The MTU is a passive unit used for connection of the field wiring and power supply to the I/O modules. It also contains a part of the ModuleBus. The TU891 MTU has gray terminals for field signals and process voltage connections. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel, but these are primarily constrained to specific values by the design of the I/O modules for their certified application.
The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
Features and benefits
Frequently Asked Questions:
1.What Acceptable wire sizes of TU890?
Process Connector:
Solid 0.2 - 4 mm²
Stranded 0.2 - 2.5 mm², 24 - 12 AWG
Recommended torque 0.5 - 0.6 Nm
Power supply connector:
0.25 - 2.5 mm², 24 - 14 AWG
Recommended torque 0.5 - 0.6 Nm
2.What is Maximum current per I/O channel of TU890?
AI890, AI893, AI895, AO890, AO895, DI890, DO890
Datasheet Link:
TU890 ABB 3BSC690075R1 compact MTU PDF Datasheet
