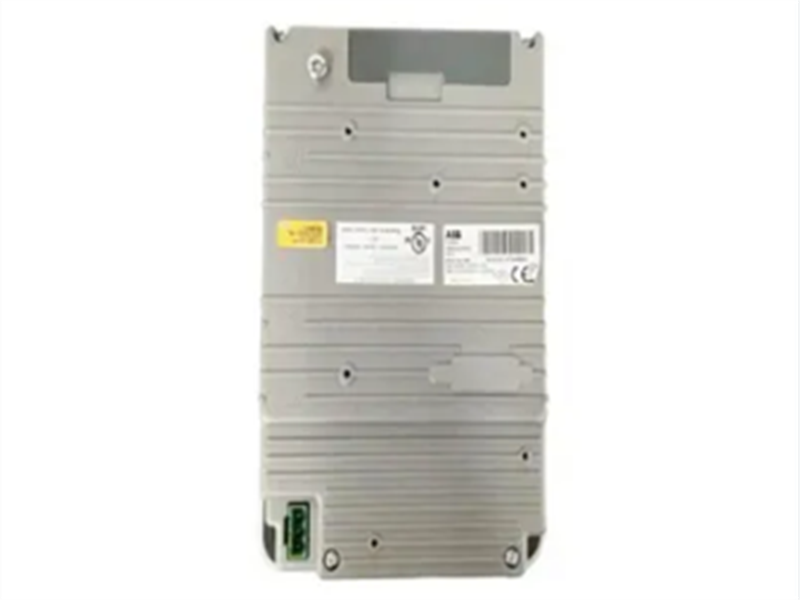

UFC092AV1 ABB AC 800PEC power supply and interface module

Description:

The UFC092AV1 is a power supply and interface module/backplane/adapter module in the ABB AC 800PEC / AC 800PEC High Performance control system.

It belongs to the UFC series control unit card and is commonly used in power converters, drives, and excitation systems.

Specifications:
Model Number: UFC092AV1
Operating Voltage: 24 VDC / 48 VDC
Applicable Systems: AC 800PEC, PEC800, UFC Control Platform
Structure: Card-mount / Rail-mount / Backplate mounting
Isolation: Electrical isolation between channel and system
Operating Temperature: -10°C ~ +60°C
Protection: Industrial-grade EMC, suitable for high-interference environments

FEATURES:

• System Power Supply Distribution

Provides stable operating power for the controller, I/O, and communication interfaces.

• Backplane Bus Interface

Enables interconnection of data, address, and control buses between cards.

• Signal Transfer and Isolation

Transfers, filters, and protects external signals from internal control systems.

• Fault Monitoring and Status Indication

Indicates normal power supply, fault status, and communication status.

• Redundancy Support

Some versions support power redundancy to ensure uninterrupted system operation.
