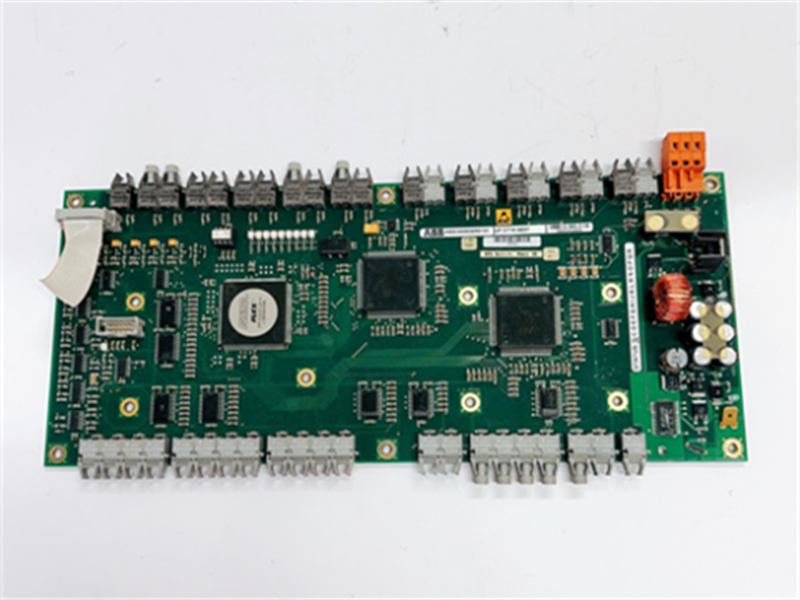

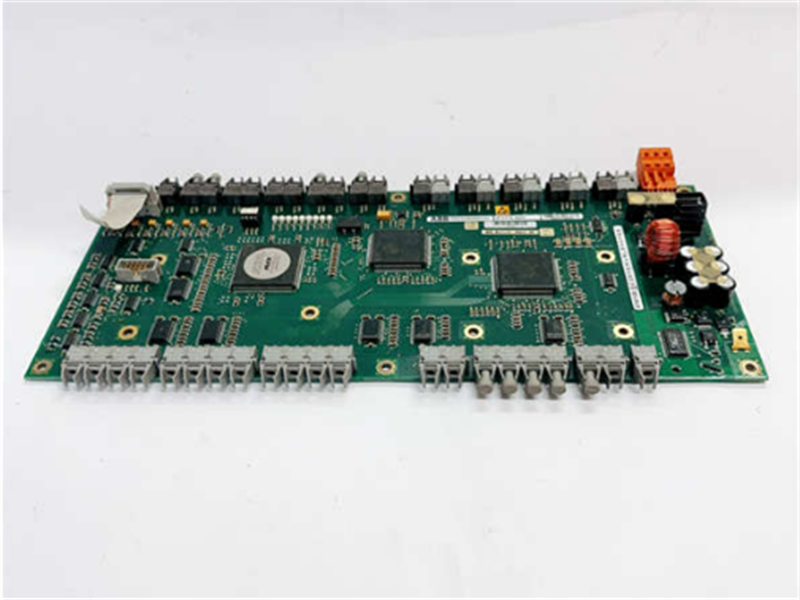

UFC718AE01 ABB HIEE300936R0101 Inverter motherboard

Description:

The ABB UFC718AE01 HIEE300936R0101 is an industrial control module manufactured by ABB.

It is a very popular industrial automation product, widely used in various industrial control and automation applications, such as PLCs, HMIs, and robot control systems. As an important component of ABB's automation systems, this module plays a crucial role in industrial production processes. Its design aims to provide efficient and reliable signal processing and control functions to meet the high demands of modern industrial automation for flexibility and precision.

It is primarily used for the conversion and transmission of different signals. It has multiple input/output interfaces, capable of receiving and sending various types of signals, such as analog signals, digital signals, and pulse signals. Simultaneously, the UFC718AE01 communication module supports multiple communication protocols, such as PROFIBUS, Modbus, and Profinet, enabling communication and data transmission with various types of PLCs and industrial control equipment.

Furthermore, the UFC718AE01 input/output module also features multiple protection functions, such as short-circuit protection, overload protection, and undervoltage protection, effectively ensuring the safety of equipment and circuits. It also has the advantages of easy installation, high reliability and long service life, and is widely used in various industrial control and automation fields.

Parameters:

Operating Temperature: -10℃~70℃
Storage Temperature: -20℃~85℃
Humidity: 5%-95% (non-condensing)
Protection Rating: IP20
Power Supply Voltage: 24V DC or other voltages, depending on the specific model.
Input/Output: Number of digital inputs/outputs, number of analog inputs/outputs, accuracy, etc.
Communication Interface: Supported communication protocols (such as Modbus, PROFINET, etc.).
Input Voltage: 24V DC
Communication Ports: Ethernet, RS-232, RS-485
Number of Control Loops: 8 independent PID loops
Input Signal Types: Analog: 4-20mA, 0-10V DC (compatible with temperature/pressure sensors); Differential: ±5V DC, ±20mA (high-precision flow measurement)
Output Signal Types: Digital Output: 8 channels (relay/transistor type, for signal triggering and switching); Analog Output: 4 channels (4-20mA, for stepless adjustment of actuators)
PID Control Performance: Proportional Coefficient (P): 0.1-1000; Integral Time (I): 0.1-3600s; Derivative Time (D): 0-1000s; Supports conventional PID, adaptive PID, and cascade control
Data Processing Speed: Adjustment cycle 10ms/time (ensuring rapid response to parameter deviations)
Features:

• Modular Design

The modular design makes this product easy to install, maintain, and expand.

• Multifunctionality

Integrates multiple functions, such as digital input/output, analog input/output, and communication interfaces, to meet various control needs.

• High Reliability

Uses industrial-grade components, ensuring high reliability and stability.

• Flexible Configuration

Software configuration allows for various control functions and parameter settings.

• Powerful Communication Capabilities

Supports multiple communication protocols for easy communication with other devices.

• Multi-channel Control Integration

A single module supports 8 independent PID loops, simultaneously managing multiple process parameters (such as temperature, pressure, and liquid level in the same boiler). Compared to single-loop modules, this reduces the number of devices, lowers cabinet space requirements, and reduces procurement costs.

• High-precision adjustment capability

A 10ms adjustment cycle and adaptive PID algorithm enable rapid response to parameter fluctuations, making it particularly suitable for applications with extremely high process precision requirements, such as semiconductor manufacturing and pharmaceuticals. It can control parameter deviations within a very small range.

• High safety level

Certified by IEC61508 SIL 2, meeting the functional safety requirements of hazardous industries such as oil and gas and chemicals, effectively preventing safety accidents caused by control failures.

• Intelligent diagnostic function

Real-time acquisition of data such as channel status, actuator wear levels, and sensor signal quality, uploaded to the SCADA system, supporting predictive maintenance and reducing the probability of sudden failures.

• ABB ecosystem compatibility

Perfectly compatible with ABB AC 800M PLC and Control Builder M configuration software, requiring no additional driver development, simplifying parameter configuration, calibration, and firmware update processes, and lowering the maintenance threshold.
