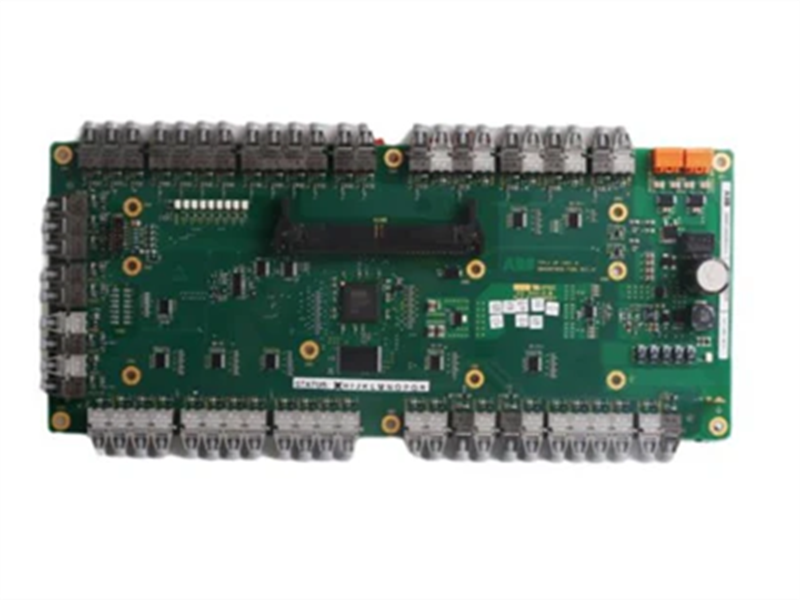

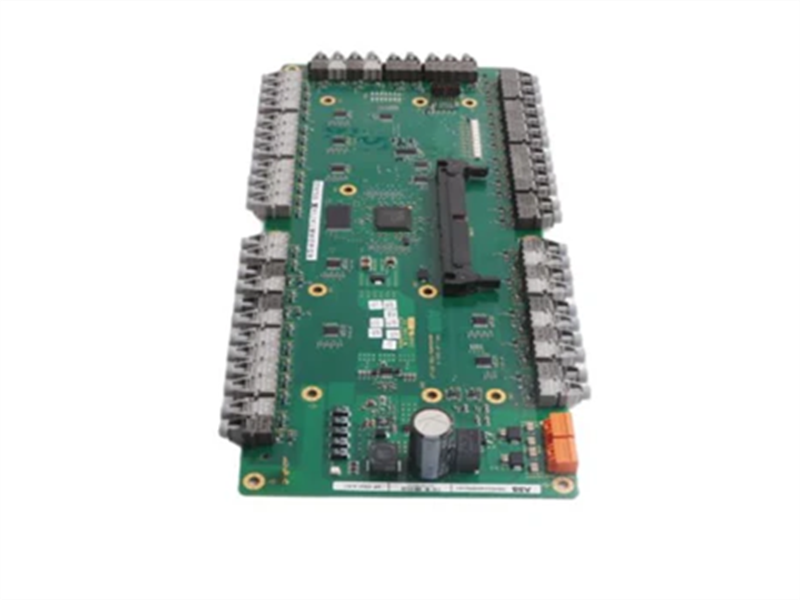

UFC921A101 ABB 3BHE024855R0101 Interface Board

Description:

The ABB 3BHE024855R0101 UFC921A101 is an interface board that is part of the ABB Advant Master process control system. It is typically used as an internal component of frequency converters or other industrial equipment.

Frequency converters control motor speed by converting alternating current (AC) to direct current (DC) and then back to AC at different frequencies, allowing the motor to operate at various speeds.

It is used to connect the Advant Master controller to other devices on the Masterbus 300 communication network. This interface board supports up to 16 Masterbus 300 nodes and can be used to connect a variety of devices, including analog and digital inputs/outputs, temperature sensors, and motor controllers. The interface board is hot-swappable, meaning it can be replaced without shutting down the system.

It provides comprehensive control capabilities, seamlessly integrating a wide range of field devices and actuators into the PLC system. The robust design and advanced features of this control board make it ideal for demanding industrial applications.

Parameters:

Part Number: 3BHE024855R0101

Description: Interface Board
Input Voltage: 200-240 V AC
Output Voltage: 0-500 V DC
Output Current: 0-20 A
Frequency Range: 0-650 Hz
Storage Temperature Range: -25°C to +70°C
Humidity Range: 5% to 95%RH (non-condensing)
Features:

• High Reliability

Utilizes industrial-grade design and components, ensuring high reliability and stability for long-term stable operation.

• Powerful Functionality

Integrates multiple functions, enabling complex control logic.

• Easy Maintenance

Supports online diagnostics and troubleshooting, facilitating maintenance and repair.

• High Reliability

ABB products are renowned for their high reliability, suitable for the demanding requirements of industrial environments.

• Customized Design

This module is likely customized for a specific inverter model, offering high adaptability.

• High Performance

Capable of handling high-speed data transmission and complex control logic.

• Modular Design

Modular design facilitates installation, maintenance, and upgrades.

• Industrial-Grade Performance

Operates stably in harsh industrial environments.
-Supports Masterbus 300 communicationInterfaces between the Advant Master controller and other devices on the Masterbus 300 networkSupports up to 16 Masterbus 300 nodes
-Can be used to connect a variety of devices, including analog and digital inputs and outputs,temperature sensors, and motor controllers
-Hot-swappable
-Conformal coated for harsh environments

Datasheet Link:

UFC921A101 ABB 3BHE024855R0101 Interface Board PDF Datasheet
