Woodward 8200-226 Servo Position Controller

Description:

Description

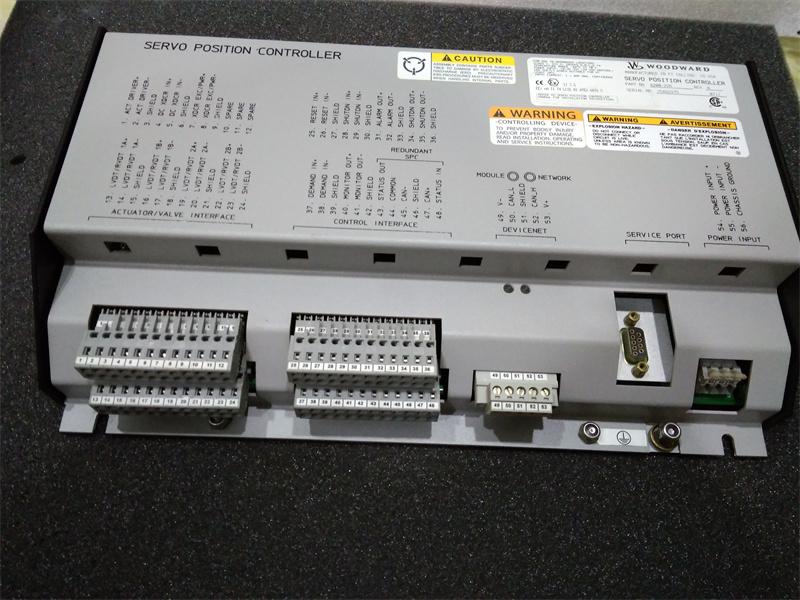

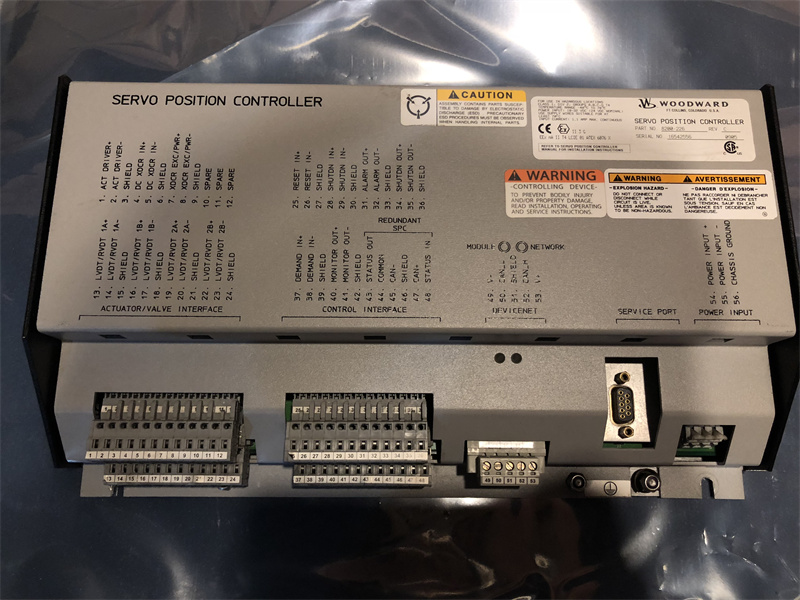

The Woodward SPC (Servo Position Controller) is a field‑programmable servo‑valve driver that controls one integrating or proportional servo‑valve. It accepts position demand signals from CANOpen, DeviceNet, or 4‑20 mA analog input, and accurately positions the valve using feedback from one or two (redundant) AC devices or one DC device (LVDT/RVDT). Integral excitation and signal conditioning are provided for LVDT/RVDT sensors.

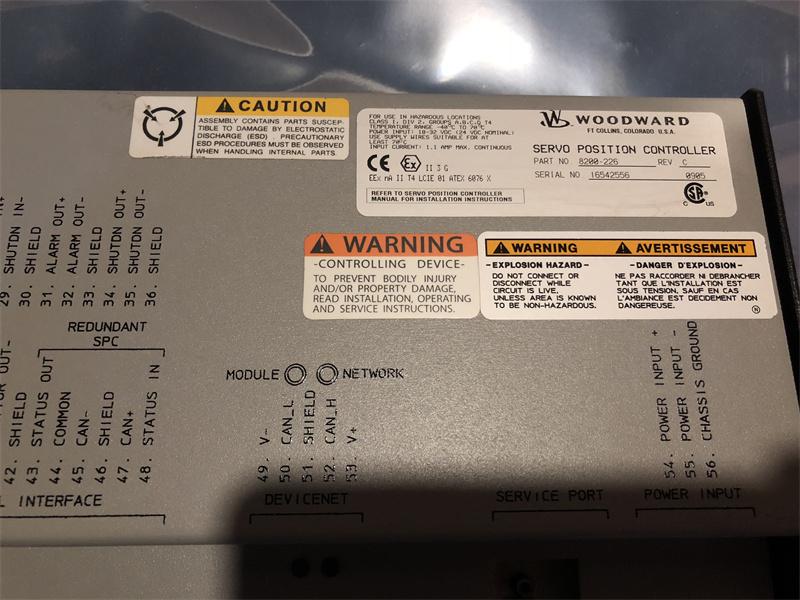

The SPC is configurable via a Windows‑based service tool, allowing users to configure, autocalibrate, dynamically adjust, and manually stroke the servo. Autocalibration greatly simplifies setup and reduces installation time. The unit is bulkhead‑mounted, rated IP20, and certified for hazardous locations (Class I, Division 2, Groups A‑D, T4; Zone 2 IIC T4). It includes protection and alarm indication for communication timeouts, input out‑of‑range, feedback open‑wire, position error, internal faults, actuator open/short, and driver overcurrent.

Features

• Digital control via CANOpen or DeviceNet; analog backup via 4‑20 mA

• Accepts redundant command signals and redundant feedback signals (auto‑switch on failure)

• Compatible with AC (LVDT/RVDT) or DC feedback signals

• Integral LVDT/RVDT excitation and signal conditioning

• 4‑20 mA position readout

• Sulfur‑resistant conformal coating

• Hard‑wired shutdown input and relay driver output

• Autocalibration for easy setup

• Field configurable and service tool support (online/offline configuration)

Applications

• Steam turbine hydraulic fuel valve control

• Gas turbine fuel valve positioning

• Industrial servo‑valve control requiring high accuracy and redundancy

• Heavy industrial environments (power generation, oil & gas, marine)

Quality Assurance
100% brand new original. 1‑year warranty. In stock for fast delivery (1‑3 days).
