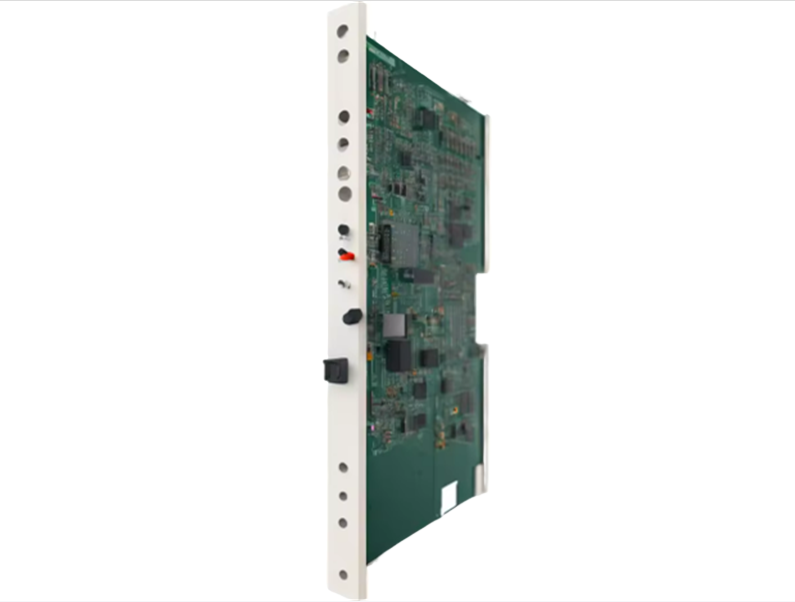

YPQ101E ABB YT204001-FS Advanced Connection Unit for Analog Input Board

Description:

  The ABB YPQ101E is a high-performance connection unit engineered to facilitate the seamless integration of analog sensors into complex industrial control systems. Designed with robust materials, this unit ensures reliable operation under varying environmental conditions, enhancing system stability and efficiency.

Features:

• Communication with HART Devices

Analog I/O modules (with HART communication capabilities) communicate with field devices and store analog data and HART variables in the input/output image area of the communication module.

• Error Detection and Reporting

Analog input module errors (such as ASI module errors) are reported to the controller via FC 215 and FC 216. When an error is detected, the controller can continue execution or enter error mode, depending on the configuration.

• Channel Expansion

Certain connection unit models can expand the physical connection points of an AI card to more channels, increasing density.

• Loop Power

This unit can provide loop power to a two-wire transmitter, enabling operation.

• Status Indication

The unit may include an LED indicator or fuse status indicator to facilitate quick fault diagnosis (e.g., a blown fuse in a channel).

• Standardized and Simplified Wiring

The use of predefined connection units standardizes field wiring and maintenance, reducing human wiring errors and improving system reliability and engineering efficiency.

Parameters：
Product Name: YPQ101E
Number of Input Channels: 8Operating Temperature:-20°C to +70°C
Material:High-grade, corrosion-resistant alloy
Connection Ports:4 Analog Input Channels
Data Transfer Rate:Up to 1 Mbps
Power Consumption:Low power draw for energy efficiency
Humidity: Typically 5% to 95% relative humidity
