Manufacture |
ABB |
|
Model |
086370-001 |
| PN No. |
086370-501 |
| Catalog | Smart Platform 1200 |
| Description |
Power Supply Card |
| Origin | U.S.A. |
| HS CODE |
85371098 |
| Dimension |
36*38*6 (CM) |
| Weight | 3.5 kg |

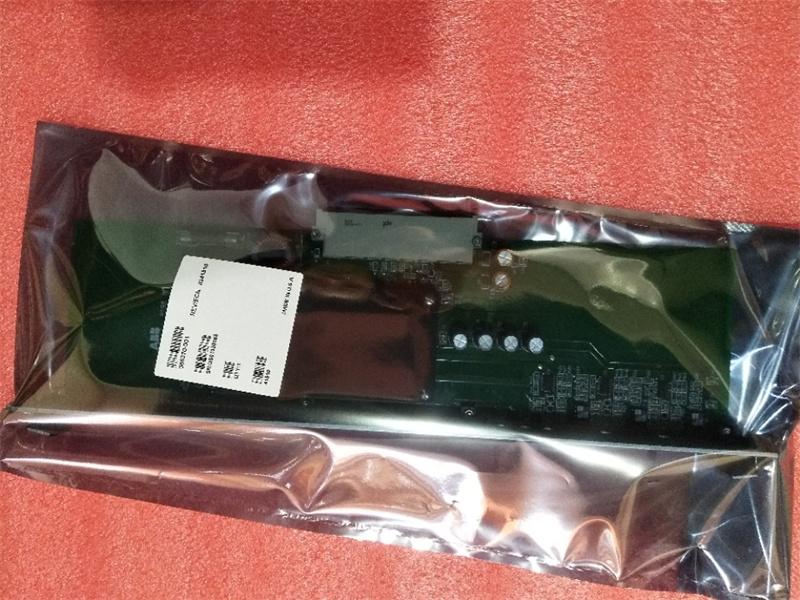

Description:
ECPSR Module & Smart Platform 1200
1. Component Identification
-
Part Name: ECPSR (Environmental Control / Power Supply / Relay) Module
-
Part Number (P/N): 086370-001
-
System Integration: Located within the AccuRay Smart Processing Center (ASPC) electronics enclosure.
2. Module Functions & Monitoring
-
Power Distribution: Distributes DC power to the ASPC, sensors, and accessories.
-
Environmental Control: Monitors and manages the internal environment of the electronics chassis.
-

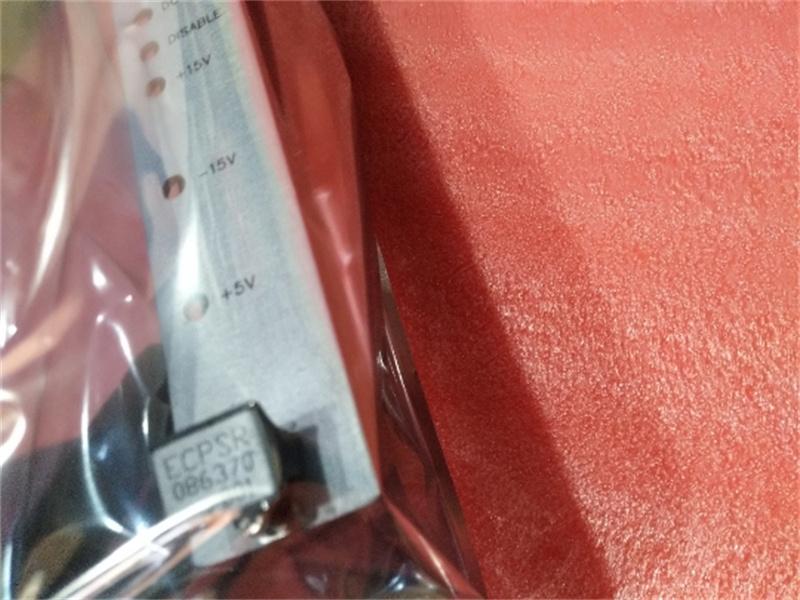

Status Indicators (LEDs):
-
DC IN: Indicates 24 VDC main power presence.
-
DISABLE: Lights up if the -12 VDC supply is out of specification (causes module shutdown).
-
Voltage Rails (+15V, -15V, +5V): Status LEDs confirm these voltages are within the required tolerance (typically ±0.4V for 15V lines).
-
3. System-Level Specifications (SP1200)
-
Maximum Weight: 4.5 Metric Tons.
-
Maximum Trim Width: Up to 10.2 meters (400+ inches).
-
Power Input (SPDC): 200/208/220/230/240 VAC, 50/60 Hz, 10 KVA.
-
Operational Temperature: Standard design up to 50°C (requires ASPC Severe Environment Enclosure for higher temperatures).
Frequently Asked Questions:
Q1: What is the primary function of the ECPSR module (086370-001) in the Smart Platform 1200?
A: The ECPSR module serves as the central hub for power management and safety monitoring within the ASPC. It provides critical DC voltage regulation (+5V, ±15V) for the system's sensors and electronic boards, while also monitoring environmental safety conditions. If a critical voltage (like -12V) falls out of range, the module will trigger a "Disable" state to protect the system.
Q2: How can a technician troubleshoot a power failure using the ECPSR module?
A: Technicians should first inspect the LED array on the front of the module. A normal state is indicated when all voltage LEDs (+15V, -15V, +5V) are illuminated. If the "DISABLE" LED is on, it indicates a power fault (specifically the -12V rail). Additionally, the module works with the Backplane (e.g., P/N 086345-004) to interface with external safety switches like the air-flow switch or paper break detectors.
Q3: Is the 086370-001 / ECPSR module compatible across all Smart Platform generations?
A: Compatibility depends on the system's backplane and sensor configuration. For instance, platforms using "Smart Color" or "ReflectionPlus" sensors require a specific backplane (086345-004) and 14-pin connectors. While the ECPSR is a standard component of the SP1200 series, users should verify the version (e.g., 086370-001) against their specific system's spare parts list to ensure matching voltage thresholds and connector pinouts.
