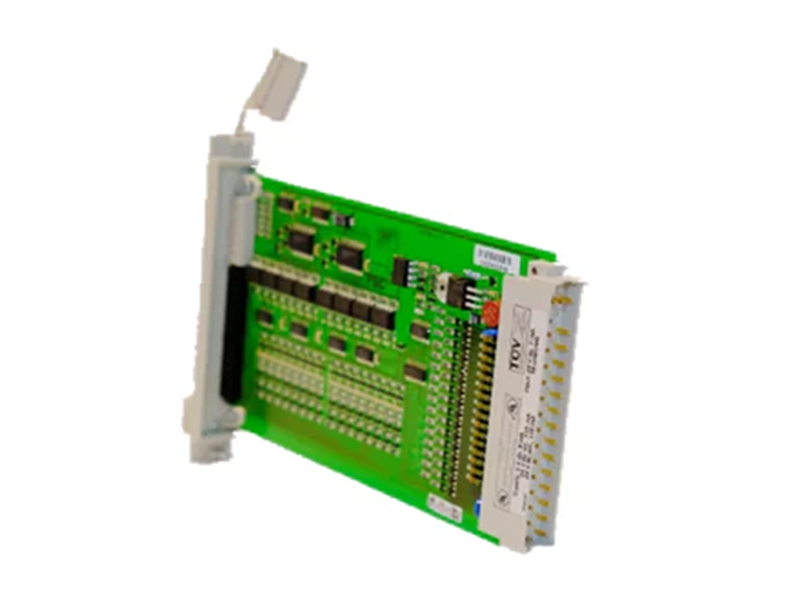

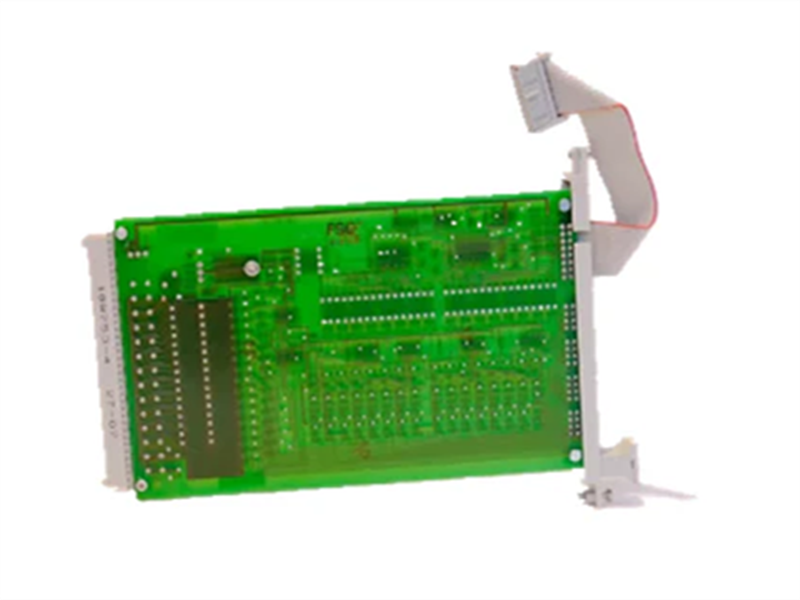

10101/2/1 Honeywell FSC Fail-safe Digital Input Module

Description:

The Honeywell 10101/2/1 is a fail-safe digital input module with sixteen 24Vdc digital input channels. It is designed for use in safety-critical applicationswhere failures must be detected and responded to quickly and reliably.It ensures relloble signoal detection,logliclevelintegrty, and crosstalk resistance for critical safety applications.

Specifications:

Product No. : 10101/2/1

Input voltage:24 Vdc
Input current: 7 mA at 24 Vdc
Input HIGH:> 15 Vdc
Input LOW:<9Vdc(l<2 mA)
Input delay: typically 10 ms
Power requirements: 5 Vdc 8mA,24 Vdc int.110 mA, 24 Vdc ext. 110 mA (input currents)
Ripple content (on 5 Vdc):< 0.5 Vp-p (0-360 Hz)
Space requirements: 4 TE, 3 HE (= 4 HP, 3U)
Operating temperature range: -20 to 60 degrees Celsius
Storage temperature range:-40 to 85 degrees Celsius
Humidity: 0 to 95% RH, non-condensing

Features:

• Fail-safe design

The input stage of the module is of a 'fail-to-safe' nature. This means that acomponent failure results in a de-energized input signal to the processor, which is the safecondition in a normally energized system.

• High accuracy

The module has an accuracy of 0.1%, making it ideal for applications whereprecise measurement is required.

• Wide measurement range

The module has a measurement range of 0 to 100 Vdc, making it suitable for a wide variety of applications.

• Durable construction

The module is constructed from rugged materials that can withstand harshenvironmental conditions.

• Easy to use

The module has a simple and straightforward user interface,making it easy to set upand use.

• Fail-safe Design

Ensures secure and reliable input signal detection

• Multi-channel Capacity

Supports 16 digital input channels for flexible system integrationIndustrial Compliance: Certified with CE, TUV, and UL approvals

• Compact Form Factor

Requires minimal rack space (4 TE,3 HE)

• Stable Performance

Low ripple content and tested for signal integrity.

Datasheet Link:

10101/2/1 Honeywell FSC Fail-safe Digital Input Module  PDF Datasheet
