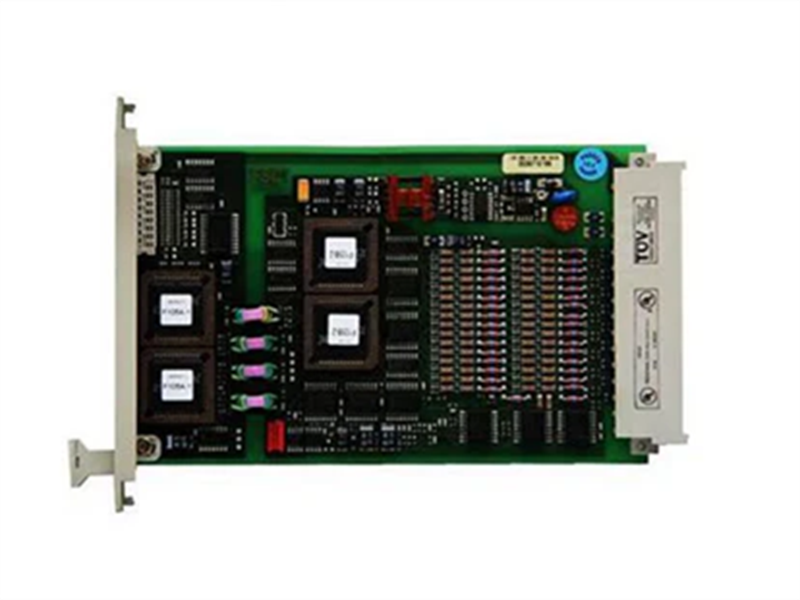

10105/2/1 Honeywell Analog Input Module

Description:

The Honeywell 10105/2/1 is a fail-safe high-density analog input module (24Vdc, 16 channels) that is part of the Honeywell FSC series of programmablelogic controllers (PLCs).

Designed for 24 vDc operotion with16 input chonels,I supports sdre ond preclse onolog.silgnolacquisition and is compatible with various field signal conversion setups using FTA-T-14 or 10105/A/l modules.

It is designed to provide high-accuracy, reliableanalog input measurements for a variety of industrial applications.

Specifications:

Product No. : 10105/2/1

Approvals: CE; TÜV, UL approvals pending
Safety class: AK1-6 (AK6 in redundant mode)
Software versions: = 500
Space requirements: 4 TE, 3 HE (= 4 HP, 3U)
Power Power requirements: 5 Vdc 35 mA ; 24 Vdc 35 mA
Number of input channels: 16
Input range: 0 to 4.1 V
Input resistance: > 1 MOhm
A/D converter: 12-bit
A/D converter inaccuracy: ± 1 LSB
Module inaccuracy: < 0.25%
Absolute max. input signal: ± 36 Vdc
Crosstalk between channels: > 60 dB*

Features:

• Fail-safe design

The module's outputs are fail-safe, meaning that they will go to a safe state in theevent of a fault or power failure.

• RFil/EMl immunity

The module is designed to be immune to radio frequency interference (RFl) andelectromagnetic interference (EMl).

• High-density design

Packs 16 analog input channels into a compact footprint, saving valuable rackspace.

• Wide input range

Accepts analog input signals from 0 to 4.1 V, compatible with various sensorsand transmitters.

• High accuracy

Features a 12-bit A/D converter with module inaccuracy of less than 0.25% for precise signal measurement.

• Rugged construction

Built to withstand harsh industrial conditions, with an operating temperaturerange of -40 to 70C and IP67 rating for dust and water resistance.

Datasheet Link:

10105/2/1 Honeywell Analog Input Module PDF Datasheet
