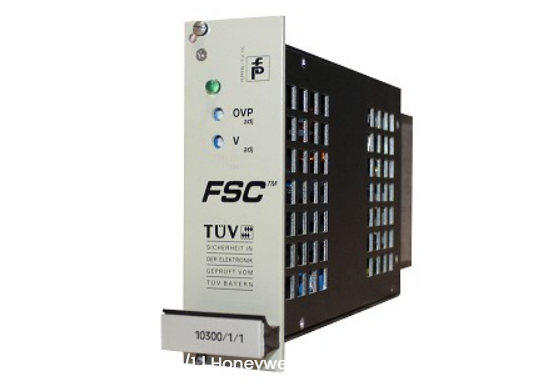

10300/1/1 Honeywell Converter Module

Description:

Honeywell Advanced Analog Input Boards are electronic modules used in industrial control systems. Their primary function is to convert analog signals (such as voltage, current, and temperature) from sensors or other devices into digital signals for processing and analysis by control systems such as PLCs or DCSs. These modules typically feature high precision, high reliability, and multi-channel operation, and are widely used in process control, automation, and other fields.

Specifications:

Product No. : 10300/1/1

Current: < 3.9A at 24 Vdc
Voltage:24 Vdc(-15%...+30%)
Inrush current: < 18 A
Ambient temperature: 0C to 60C (32F to 140F)
Output voltage: 5 Vdc with overvoltage protection
Ripple content: < 40mVp-p(at full load)
Output current:12Aat0C to 45C(32F to113F)8A at0Cto 60C(32F to140F)
Hold-up time: O ms
Output voltage setting (V adj): 5.00 Vdc
Overvoltage protection (OVP adj): 5.75 Vdc
Efciency: 70%

Features:

• Fail-safe design

The module's outputs are fail-safe, meaning that they will go to a safe state in theevent of a fault or power failure.

• RFil/EMl immunity

The module is designed to be immune to radio frequency interference (RFl) andelectromagnetic interference (EMl).

• High-density design

Packs 16 analog input channels into a compact footprint, saving valuable rackspace.

• Wide input range

Accepts analog input signals from 0 to 4.1 V, compatible with various sensorsand transmitters.

• High accuracy

Features a 12-bit A/D converter with module inaccuracy of less than 0.25% for precise signal measurement.

• Rugged construction

Built to withstand harsh industrial conditions, with an operating temperaturerange of -40 to 70C and IP67 rating for dust and water resistance.

Datasheet Link:

10300/1/1 Honeywell Converter Module PDF Datasheet
