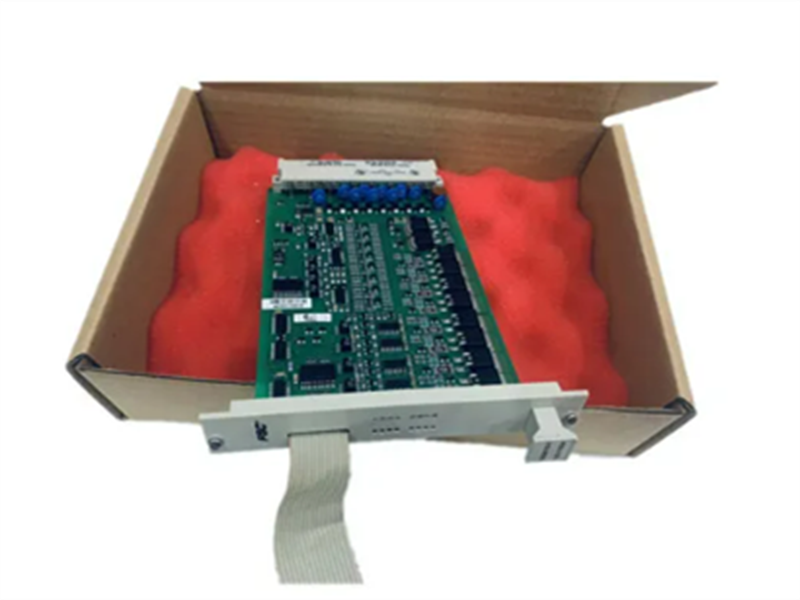

10205/2/1 Honeywell Fail-Safe Analog Output Module

Description:

The Honeywell 10201/2/1 is a fail-safe digital output module designed for use in a variety ofindustrial control applications.Providing reliablecontrol for loads up to 13 W.

 It provides eight independent output channels that can be configuredfor either Form A or Form C operation. The module is powered by a 24 VDC supply and can handle amaximum load current of 0.55 A per channel.Each output includes a suppression diode for handling inductive loads,ensuring fail-safe operation.

Specifications:

Product No. : 10205/2/1

Approvals: CE, TÜV, UL
Space requirements: 4 TE, 3 HE (= 4 HP, 3U)
Power Power requirements: 5 Vdc 30 mA
24 Vdc 65 mA + 30 mA for each active output
Output Number of output channels: 2
voltage; 0V 1 and 0V 2 interconnected)
D/A converter: 12-bit
Off current: < 0.05 mA
maximum output voltage: 30 Vdc
External powering (passive):
maximum: 40 Vdc
minimum voltage drop: = 7.5 V
WDG input current: 0.5 mA

Features:

• Fail-safe design

The module's outputs are fail-safe, meaning that they will go to a safe state in theevent of a fault or power failure.

• RFil/EMl immunity

The module is designed to be immune to radio frequency interference (RFl) andelectromagnetic interference (EMl).

• High-density design

Packs 16 analog input channels into a compact footprint, saving valuable rackspace.

• Wide input range

Accepts analog input signals from 0 to 4.1 V, compatible with various sensorsand transmitters.

• High accuracy

Features a 12-bit A/D converter with module inaccuracy of less than 0.25% for precise signal measurement.

• Rugged construction

Built to withstand harsh industrial conditions, with an operating temperaturerange of -40 to 70C and IP67 rating for dust and water resistance.

Datasheet Link:

10205/2/1 Honeywell Fail-Safe Analog Output Module  PDF Datasheet
