Manufacture |
Bently Nevada |
|
Model |
3500/40M-02-00 |
| PN No. |
126615-01 |
|
Catalog |
3500 |
|
Description |

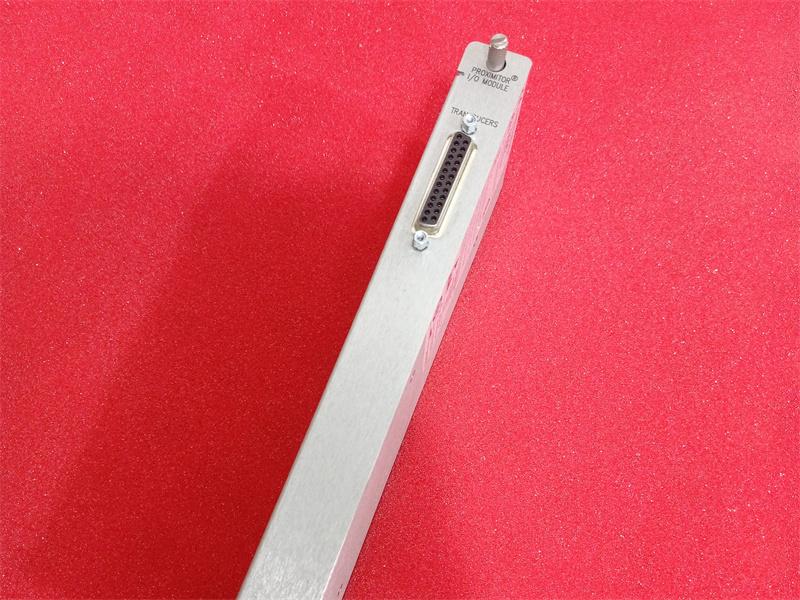

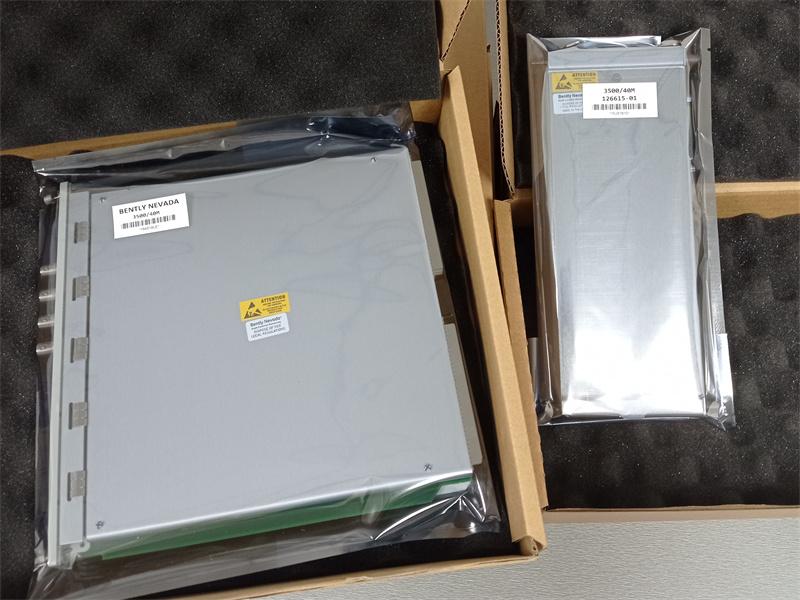

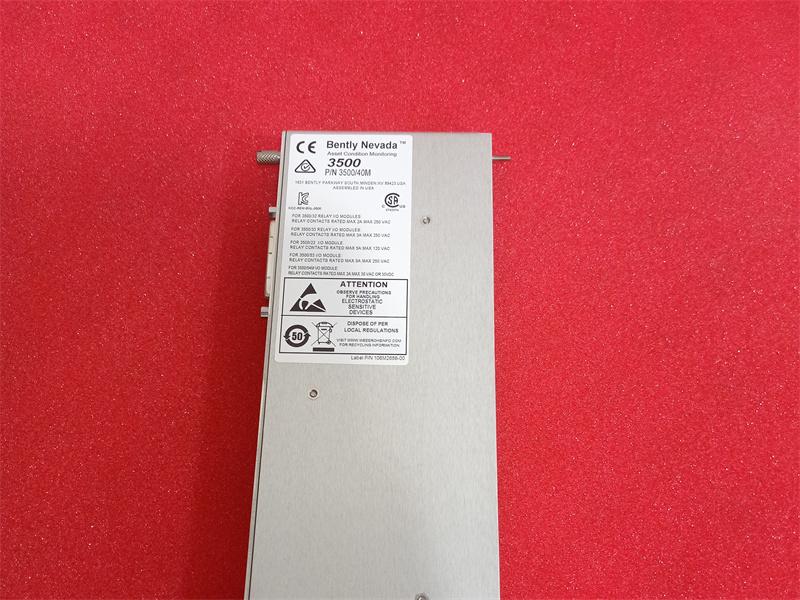

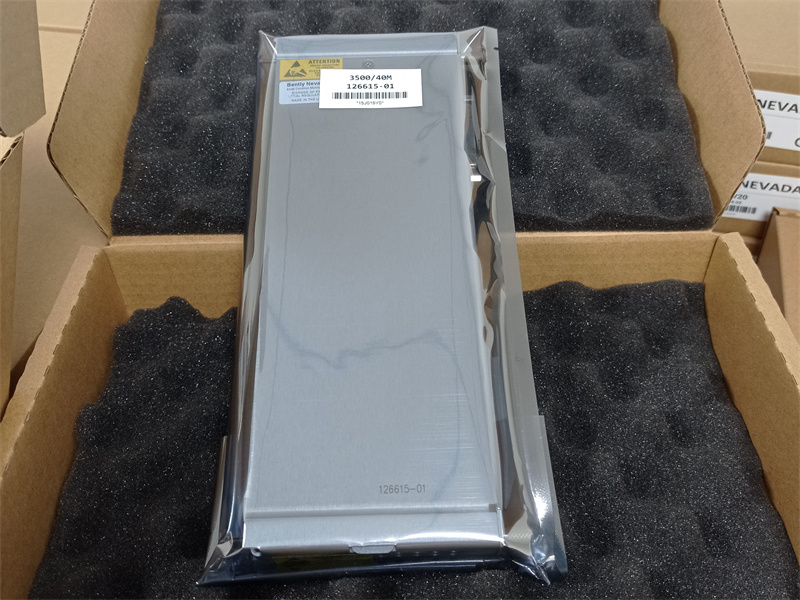

Proximitor I/O Module with Internal Barriers and Internal Terminations |
| Origin | U.S.A. |
| HS CODE |
85389091 |
| Dimension |
24*10*2.4 (CM) |
| Weight | 0.2 kg |
Description:
The 3500/40M Proximitor Monitor is a four-channel monitor that accepts input from Bently Nevada proximity transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms. The user can program each channel of the 3500/40M with the 3500 Rack Configuration Software to perform any of the following functions:
- Radial vibration
- Eccentricity
- REBAM
- Thrust position
- Differential expansion
The primary purpose of the 3500/40M Proximitor Monitor is to provide the following:
- Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
- Essential machine information for both operations and maintenance personnel
Each channel, depending on configuration, typically conditions its input signal to generate various parameters called static values. You can configure alert setpoints for each active static value and danger setpoints for any two of the active static values.
Ordering Considerations
General
The 3500/40M Module requires the following (or later) firmware, and software revisions:
3500/01 Software – Version 2.50
3500/02 Software – Version 2.20
3500/03 Software – Version 1.21
When ordering I/O Modules with External Terminations the External Termination Blocks and Cable must be ordered separately for each I/O Module.
External Termination Blocks cannot be used with Internal Termination I/O Modules.
Internal Barrier I/O Modules
Consult the 3500 Internal Barrier specification sheet (document 141495) if the Internal Barrier Option is selected.
REBAM
The REBAM channel type requires the following (or later) firmware, and software revisions:
3500/40M Module Firmware – Revision 2.1
3500/01 Software – Version 3.30
3500/02 Software – Version 2.40
3500/03 Software – Version 1.40
DM2000 Software-Version 3.40.
Requires the M version of the 3500 Proximitor Monitor.
Proximitor Monitor
3500/40M-AA-BB
A: I/O Module Type
01
Proximitor I/O Module with Internal Termination
02
Proximitor I/O Module with External Terminations
03
Proximitor I/O Module with Internal Barriers and Internal Terminations
B: Hazardous Area Approval Option
00
None
01
CSA / NRTL / C (Class 1, Division 2)
02
ATEX / IECEx / CSA (Class 1, Zone 2)
Spare
|
176449-01 |
3500/40M Proximitor Monitor |
|
125680-01 |
Proximitor I/O Module with Internal Terminations |
|
126615-01 |
Proximiotr I/O Module with Extrnal Terminations |
|
135489-04 |
Proximitor I/O Module with Internal Barriers and Internal Terminations |
|
149716-01 |
TMR Proximitor I/O Module with External Terminations |
|
143488 |
3500/40M Monitor User Guide |
|
00580434 |
Internal I/O Module connector header, Euro style, 8-pin |
|
00502133 |
Internal I/O Module connector header, Euro style, 12-pin |
Frequently Asked Questions:
1.What is Direct filter of 3500/40M-03-00 135489-04?
User-programmableSingle-pole4 Hz to 4000 Hz or1 Hz to 600 Hz
2.What's Gap filter of 3500/40M-03-00 135489-04?
-3 dB at 0.09 Hz
