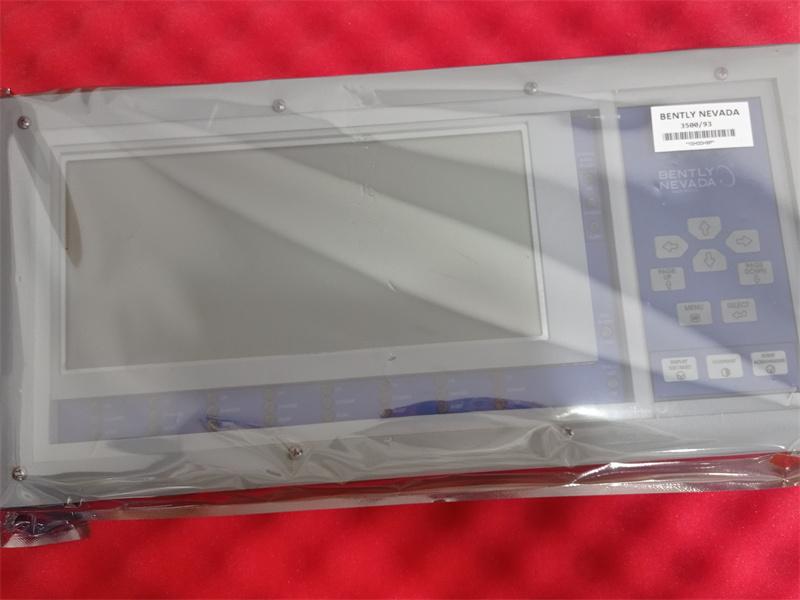

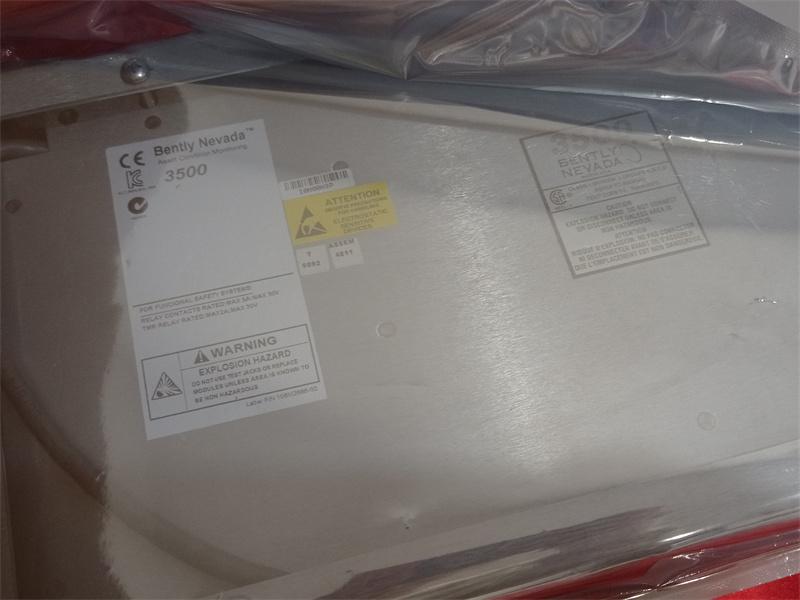

135785-01 System Display Unit 3500/93 Bently Nevada

Description:

Product Model:
Bently Nevada 3500/93 135785-01

Product Type:
3500/93 Display Unit, non backlighted

System Compatibility:
Bently Nevada 3500 Machinery Protection System

Input Voltage:
20–30 VDC (24 VDC nominal)

Application:
Designed to provide regulated internal power for Bently Nevada 3500 racks and installed monitoring modules.

Installation:

• Installed inside a 3500 rack

• Requires compatible Power Input Module (PIM)

• Supports single or dual (redundant) power supply configuration

Operating Environment:
Industrial control and machinery protection applications, including oil & gas, power generation, and rotating equipment monitoring systems.

Condition:
Available as replacement or spare part for existing 3500 systems.

The 3500/93 System Display is designed to meet the requirements of American Petroleum Institute (API) Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection System information residing in the rack including:

    System Event List
    Alarm Event Lists
    All Channel, Monitor, Relay Module, Keyphasor* Module or Tachometer Module data

The 3500/93 System Display is configured using 3500 Rack Configuration Software. The display can be mounted in any of four ways:

1. Face Mounting – display installs directly over the front panel of any full size 3500 rack using a special hinged support. This permits access to the rack’s buffered output connectors and user-interface buttons and switches without disconnecting or disabling the display.

Note: For this mounting option only, the Display Interface Module (DIM) must be installed in slot 15 (right-most slot) of the rack. The Face Mounting option is not compatible with the 3500 Mini-rack.

2. 19-inch EIA Rack Mounting – display is mounted on 19-inch EIA rails and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).

3. Panel Mounting – display is mounted in a panel cutout located in the same cabinet or up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).

4. Independent Mounting – display is mounted flush against a wall or panel and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).

FAQ

Q1: What is indication from 3500/46M 176449-06 Front Panel LEDs?

OK LED--Indicates when the 3500/46M Hydro Monitoris operating properly

TX/RX LED--Indicates when the 3500/46M Hydro Monitor is communicating with other modules in the 3500 Rack.

Bypass LED--Indicates when the 3500/46M Hydro Monitor is in Bypass Mode.

Q2: What's Input Impedance with I/O module?

10 kΩ for Prox/Accel3.5 MΩ for Velomitor

Q3: Is this module compatible with existing 3500 systems?

Yes. This power supply is fully compatible with all standard Bently Nevada 3500 racks and monitoring modules, making it suitable for both new installations and replacement of existing DC power supplies.

Q4: Does this model support redundant power configurations?

Yes. The 3500 system allows dual power supplies to be installed, providing redundancy for applications where continuous operation and system reliability are critical.

Q5: Is any software or configuration required after installation?

No additional software or firmware configuration is required. Once properly installed, the module operates automatically as part of the 3500 system.

Q6: What is this product typically used for?

It is commonly used in machinery protection and condition monitoring systems, including turbines, compressors, pumps, and other critical rotating equipment.

Please select the correct power supply type and approval option according to your system configuration.

Ordering Information – 3500/46M Hydro Monitor

System Display

3500/93-AXX-BXX-CXX-DXX
A: Mounting Option:
    0 1 System Face Mount (DIM must be installed in slot 15, I/O module not included)
    0 2 19-inch EIA Rack Mount (I/O module included)
    0 3 Panel Mount (I/O module included)
    0 4 Independent Mount (StainlessSteel Housing, I/O module included)
    0 5 Back-lighted System Face Mount (DIM must be installed in slot 15, I/O module included, external power supply required)
    0 6 Back-lighted 19-inch EIA Rack Mount (I/O module included, external power supply required)
    0 7 Back-lighted Panel Mount (I/O module included, external power supply required)
    0 8 Back-lighted Independent Mount (Stainless Steel Housing, I/O module included, external power supply required)
B: Mounting Distance/Cable Type:
    0 0 No Cable Required
    0 1 10 Foot (3 metres) Cable (PVC)
    0 2 50 Foot (15.24 metres) Cable (PVC)
    0 3 50 Foot (15.24 metres) Cable (Teflon®)
    0 4 100 Foot (30.5 metres) Cable (PVC)
    0 5 100 Foot (30.5 metres) Cable (Teflon)
C: External Power Supply:
    0 0 None
    0 1 115 Volt AC
    0 2 230 Volt AC
    0 3 ATEX External Supply
D: Agency Approval Option:
    0 0 None
    0 1 CSA/NRTL/C
    0 2 ATEX/CSA (Class 1, Zone 2)

Our company offers the entire range of 3500 series power supplies with immediate availability. We maintain extensive stock—including both current and discontinued models—and welcome your inquiries.

Datasheet Link:

135785-01 System Display Unit 3500/93 Bently Nevada PDF Datasheet
