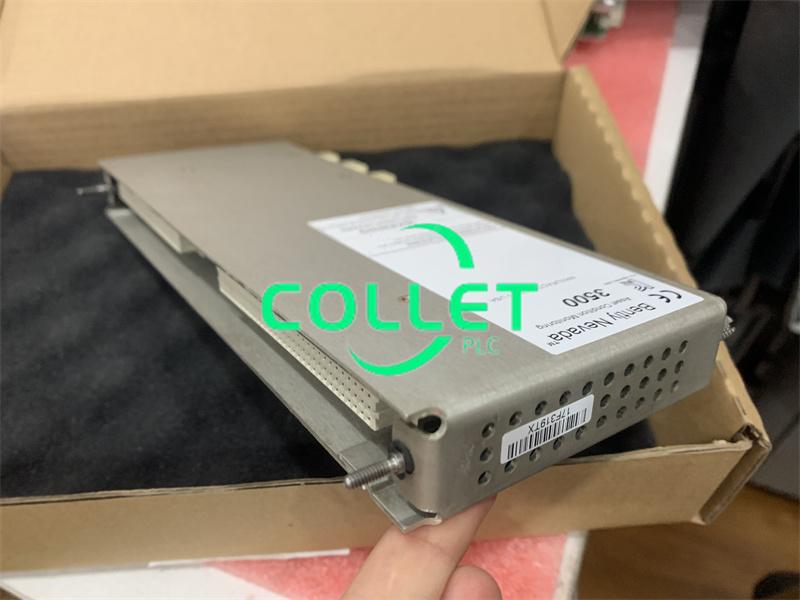

136719-01 BENTLY NEVADA I/O Module

Description:

The BENTLY NEVADA 136719-01 Earthing I/O Module is an intrinsically safe (IS) earthing module that provides the IS earth connection through the 3500 system backplane. It is used to protect transducer systems from hazardous area installations. The module requires a dedicated I/O module position and precludes the use of this monitor position for other 3500 System modules. This limits a standard 19-inch rack to 13 monitor positions.

The 136719-01 Earthing I/O Module is compatible with the 3500 Machinery Protection System and provides a convenient and cost-effective solution for installing all types of transducer systems within a hazardous area. Unlike external barriers, 3500 Internal Barriers are an integral part of the 3500 System and will not degrade the system’s performance.

Features:

• Compatibility

Compatible with various monitor modules such as the 3500/25, 3500/42, 3500/50, and others.

• Application

Designed to install an Intrinsically Safe (IS) Earthing Module in each rack containing internal barriers.

• Communications

The BENTLY 136719-01 module supports remote communication interfaces, enabling convenient data exchange and control with a remote master station. It offers a variety of communication interfaces, including LAN, serial, and digital I/O, to meet the communication needs of diverse systems.

• Rich Control and Protection Functions

It supports 4-channel relay module configurations, with each relay output independently programmable to execute the required voting logic. This configuration allows the module to flexibly address diverse and complex control requirements and ensure stable system operation.

• High Reliability and Stability

Utilizing high-quality materials and advanced manufacturing processes, it can operate stably and long-term in harsh industrial environments. The module's design also incorporates ease of installation and maintenance, enabling users to easily deploy and maintain the system.
SPECIFICATIONS:
Part Number: 136719-01

Operating Temperature Range: -40'C to +85°C(-40'F to +185°F)
Relative Humidity: 0% to 95%

• Temperature Accuracy

• Phase Accuracy

• Channel Parameters

Datasheet Link:

136719-01 BENTLY NEVADA  I/O Module  PDF Datasheet
