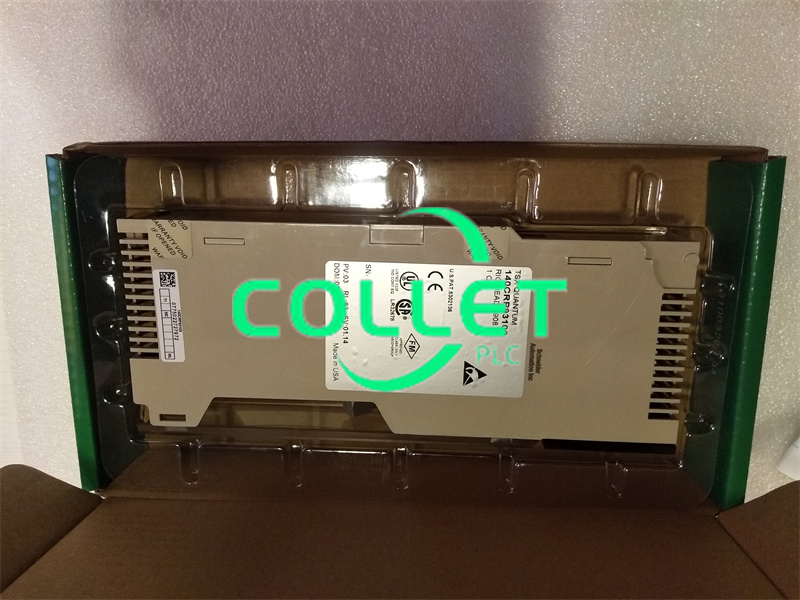

140DAI35300 Schneider Electric Modicon Quantum Discrete Input Module

140DAI35300 Schneider Electric Modicon Quantum Discrete Input Module in stock.

Item NO.:
140DAI35300
Payment:
T/T
Market Price:
$420
Product Origin:
France
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
99
Product weight:
0.91 kg

Inquiry now

product introduction

Manufacture	Schneider
Model	140DAI35300
PN No.	140DAI35300
Catalog	Modicon Quantum
Description	Ethernet network TCP/IP module
Origin	U.S.A.
HS CODE	85389081
Dimension	516.531.5(CM)
Weight	0.91kg

Description:

The Schneider Electric 140DAI35300 is a high-performance AC discrete input module designed for integration into automation systems. Packaged in a standard module, the 140DAI35300 offers advanced features and functionality to meet the needs of industries requiring precise data processing and robust operational safety.

The Schneider Electric 140DAI35300 discrete input module is a compact unit with four independent channels, all optimized for 24V AC input configurations. It effectively handles input currents of 11.1mA and 13.2mA, maintaining input impedances of 2600 ohms and 3100 ohms, respectively. The module's network frequency limit extends from 47Hz to 63Hz, adapting to various operating environments.

Specifications:
Product Name: 140DAI35300

Input Voltage: 24V DC
Communication Interface: Modbus, TCP/IP
Ethernet Input Count: 16 times
Output Count: 16

Operating Temperature: -20°C to 60°C
Network Frequency Limits: 47…63 Hz
Maximum Leakage Current: 1.9 mA
Storage Ambient Temperature: -40…85 °C
Relative Humidity: 95% (Non-condensing)
Input Current: 11.1 mA/ 13.2 mA
Input Impedance: 2600 Ohm/ 3100 Ohm
Network Frequency Limits: 47/63 Hz
Bus Current Requirement: 250 mA
Max. Power Dissipation: 10.9 W
Isolation Between Groups: 1780 Vrms
Max Leakage Current: 1.9 mA
Addressing Requirements: 2 input words
Response Time: 4.9 to 0.75 ms

Feartures:

-High-speed processing, fast response time

-Built-in diagnostics and fault detection

-User-friendly programming interface

-Rugged and durable, suitable for industrial environments

-Flexible connectivity options for seamless integration into existing systems

Frequently Asked Questions:
1.What is the purpose of the 32 LEDs on the 140DAI35300 module?
The 32 green LEDs indicate the status of each individual input channel. This helps identify active inputs and simplifies troubleshooting during maintenance.

2.What isolation ratings are provided in the 140DAI35300 module?
The module features isolation of 1780 Vrms for one minute between groups and between the groups and the bus. This high-level isolation protects the module from electrical interference and reduces the risk of faults.

3.How does the 140DAI35300 handle overvoltage conditions?
The module is designed to operate continuously at an input voltage of up to 30 V AC. In case of short-duration overvoltage events, it can withstand up to 32 V for 10 seconds and up to 50 V for one cycle, ensuring operational resilience.

Datasheet Link:

140DAI35300 Schneider Electric Modicon Quantum Discrete Input Module PDF Datasheet
