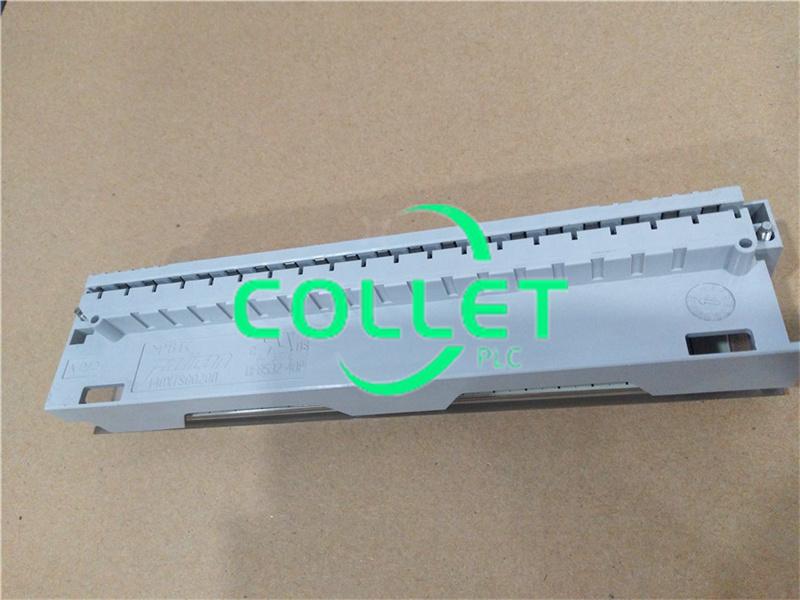

140XTS00200 Schneider Electric Modicon Quantum programmable logic controller Module

140XTS00200 Schneider Electric Modicon Quantum programmable logic controller Module in stock.

Item NO.:
140XTS00200
Payment:
T/T
Market Price:
$140
Product Origin:
France
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
99
Product weight:
0.91 kg

Inquiry now

product introduction

Manufacture	Schneider
Model	140XTS00200
PN No.	140XTS00200
Catalog	Modicon Quantum
Description	Ethernet network TCP/IP module
Origin	U.S.A.
HS CODE	85389081
Dimension	516.531.5(CM)
Weight	0.91kg

Description:

Schneider Electric's 140XTS00200 serves as a versatile terminal block within the Modicon Quantum series. This CPU module provides the processing power and memory needed to run automation programs and control industrial processes. It features a screw terminal configuration, allowing for easy and reliable connections. This block is designed with compatibility for various modules, including analog input and output modules. It also accommodates counter modules and discrete combination I/O modules for enhanced functionality.

The operational temperature limits for this terminal block range from 0°C up to 60°C, ensuring effective performance in typical industrial conditions. For storage purposes, it can withstand temperatures as low as -40°C and as high as 85°C. Additionally, the terminal block supports multifunction input modules specifically engineered for accurate time stamping, enhancing data precision in applications.

Specifications:
Product Name: 140XTS00200

Input Voltage: 24V DC
Communication Interface: Modbus, TCP/IP
Ethernet Input Count: 16 times
Output Count: 16

Operating Temperature: -20°C to 60°C
Network Frequency Limits: 47…63 Hz
Maximum Leakage Current: 1.9 mA
Storage Ambient Temperature: -40…85 °C
Relative Humidity: 95% (Non-condensing)
Input Current: 11.1 mA/ 13.2 mA
Input Impedance: 2600 Ohm/ 3100 Ohm
Network Frequency Limits: 47/63 Hz
Bus Current Requirement: 250 mA
Max. Power Dissipation: 10.9 W
Isolation Between Groups: 1780 Vrms
Max Leakage Current: 1.9 mA
Addressing Requirements: 2 input words
Response Time: 4.9 to 0.75 ms

Feartures:

Distributed expansion capability

Supports long-distance transmission of control signals and I/O data from the CPU master station to remote I/O substations via optical fiber or copper cable, breaking through the physical limitations of traditional centralized control.

High reliability transmission

Supports two transmission media, optical fiber bus and shielded copper cable, suitable for strong interference environments; bus topology supports "daisy chain" or "star" connection, and supports redundant configuration.

Strong compatibility

Adapts to the full range of Quantum series I/O modules and supports synchronous configuration with the master station CPU.

Frequently Asked Questions:
1.What distinguishes the 140XTS00200 Cable Module from other products in its category?
The 140XTS00200 Cable Module stands out for its compatibility with various Schneider Electric products such as Modicon Quantum automation systems. Designed specifically for accurate time stamping multifunction input modules, analog I/O modules, and other modules listed, it offers seamless integration and reliable connectivity within industrial setups.

2.Can the 140XTS00200 Cable Module be used in conjunction with other manufacturers' products?
While primarily designed for Schneider Electric systems, the 140XTS00200 Cable Module may also be compatible with Cable Modules from other manufacturers such as Modicon and ABB. However, compatibility should be verified based on specific application requirements and system configurations.

3.What programming languages are supported by the 140XTS00200 Cable Module?
The 140XTS00200 Cable Module supports a range of programming languages, including ladder logic, structured text, and function block diagrams. This flexibility enables engineers and programmers to create complex control algorithms and programs tailored to specific industrial processes and requirements.
