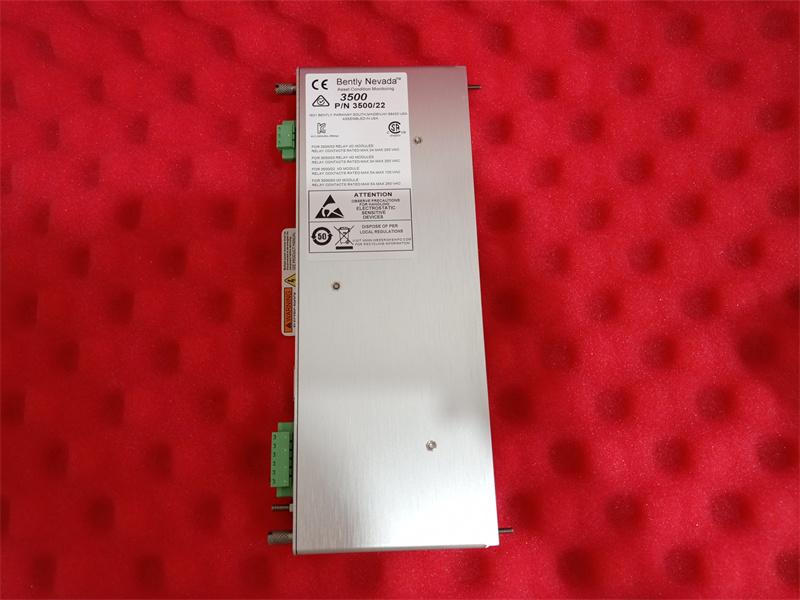

146031-01 Bently Nevada 3500/22M-01-01-00 I/O Module

146031-01 Bently Nevada 3500/22M-01-01-00 I/O Module

  • Item NO.:

    146031-01
  • Payment:

    T/T
  • Market Price:

    $350
  • Product Origin:

    U.S.A.
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    45
  • Product weight:

    0.2 kg

Manufacture
Bently Nevada
Model
3500/22M-01-01-00
PN No. 146031-01
Catalog
3500
Description
10Base-T/100Base-TX I/O Module
Origin U.S.A.
HS CODE 85389091
Dimension 24*10*2.4 (CM)
Weight 0.2 kg

Description:

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.


The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.


Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack.


Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).


I/O Module Signal Common Terminal
Both versions of the TDI I/O Module now include a 2-pin connector for connecting Signal Common to a single point Instrument Ground for the rack. When this is done, the selector switch on the side of the Power Input Module (PIM) must be slid in the direction of the arrow marked "HP" to isolate Signal Common from chassis (safety) ground.


3500 22M Dynamic Data Enabling Disk
This disk enables the number of channels of dynamic data (i.e., the ability to collect waveforms) that the TDI will support. There are two levels of dynamic data. Steady-State points are channels that collect waveform data due either to a software command or to an alarm event, and therefore support current values, scheduled waveform capture, and alarm data capture. Transient points provide all the function of a Steady-State point with the additional capability of waveform collection due to parameter variations such as machine speed.


Ordering Information

Product Description
3500/22M-AA-BB-CC

A: Transient Data Interface Type
01
Standard (use for standard monitoring applications)
B: I/O Module Type
01
10Base-T/100Base-TX Ethernet
02
100Base-FX (Fiber Optic) Ethernet
03
10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts
04
100Base-FX (fiber optic) Ethernet with gold-plated OK Relay contacts
C: Agency Approval
00
None
01
CSA/NRTL/C (Class 1, Division 2)
02
Multi (CSA, ATEX, IECEx)

Spares

288055-01
Standard Transient Data Interface Module with USB cable
123M4610*
10 foot A to B USB cable
146031-01
10Base-T/100Base-TX I/O Module
146031-02
100Base-FX (Fiber Optic) I/O Module
161580
3500/22M TDI Operation and Maintenance User Guide
164466
Network Accessories Datasheet
00580441
Connector header, internal termination, 3-position, green
00580436
Connector header, internal termination, 6-position, green
111M5777
Connector header, internal termination, 2-position, green

Frequently Asked Questions:

1.What is Function of 3500/22M-01-01-00 146031-01?

Indicates when the 3500 rack is operating normally or when a fault has been detected within the rack. User can select either an “OPEN” or “CLOSED” contact to annunciate a NOT OK condition. This relay always operates as “Normally Energized”.


2.What is Ratings of 3500/22M-01-01-00 146031-01?

Standard OK Relay is rated to 5A @ 24 Vdc/120 Vac, 120 Watts/600 VA Switched Power (maximum)
OK Relay with gold-plated contacts is rated down to 1 mA @ 1 Vdc (minimum)

3.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

146031-01 Bently Nevada 3500/22M-01-01-00 I/O Module PDF Datasheet

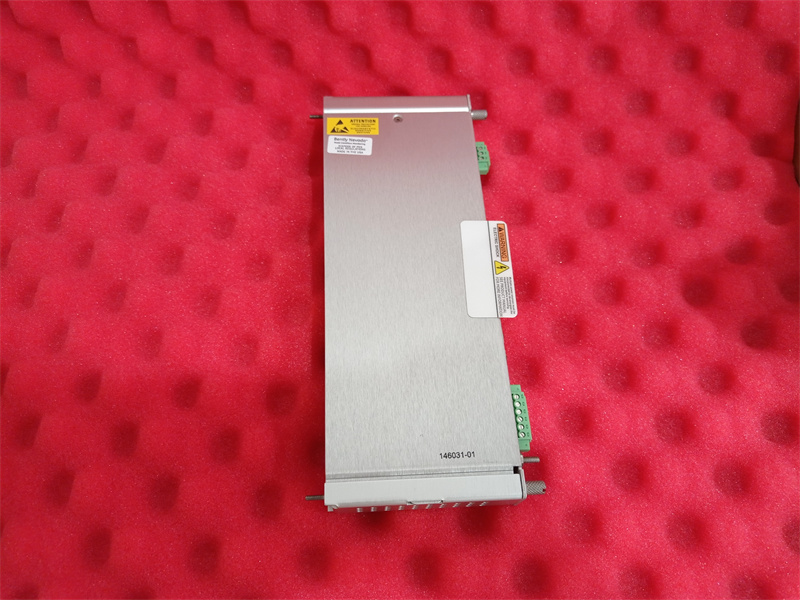

146031-01 PICTURE
