product introduction

Manufacture	Bently Nevada
Model	168905-02
PN No.	168905-02
Catalog	ADRE Sxp and 408 DSPi
Description	8-Channel Dynamic Sampler Card
Origin	U.S.A.
HS CODE	8537101190
Dimension	364110 (CM)
Weight	1.3 kg

Description:

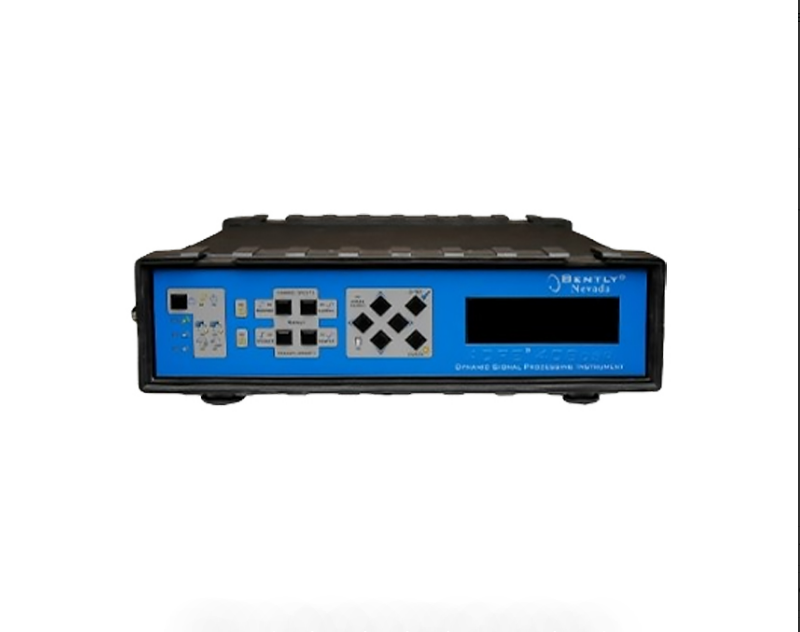

ADRE Sxp Software and the 408 DSPi (Dynamic Signal Processing Instrument) make up a highly scalable system for multi-channel signal processing and data acquisition.
Unlike other general-purpose computer-based data acquisition systems, ADRE Sxp and the 408 DSPi are specifically designed for real-time highly parallel signal processing and presentation. This extremely versatile system incorporates the functionality of many types of instrumentation, such as oscilloscopes, spectrum analyzers, filters, signal conditioners, and digital recorders into a single platform. The system is designed specifically for secure corporate network environments, allowing it to operate remotely across a LAN/WAN, or store data in full “stand-alone” mode without an additional/external computer. Additional equipment is seldom, if ever, needed. The system’s real-time display capability permits it to continuously display data independently of data being stored to permanent memory. For established ADRE system users, ADRE Sxp also supports all previous ADRE for Windows databases.
An ADRE Sxp data acquisition system consists of:

408 Dynamic Signal Processing Instrument(s).
ADRE Sxp client software, ADRE Quick Configuration software.
A computer system capable of running ADRE Sxp software.

The 408 DSPi is fully portable or can be rack mounted allowing convenient operation in test stands, on-site, or at remote locations. The 408 DSPi’s highly configurable design supports virtually all standard and non-standard input types including both dynamic transducer signals (such as those from proximity probes, velocity transducers, accelerometers, force hammers, dynamic pressure sensors), and static signals (such as process variables from transmitters and distributed control systems). For rotating machinery applications, users can provide a Keyphasor or other speed input signal (such as that from a magnetic or optical transducer) to drive synchronous sampling and order tracking. For structural analysis needs, impact testing using force hammers is supported. The system also supports multiple triggering modes for automated data acquisition, allowing you to use the system as a data or event logger without an operator present.
The Client-Server architecture allows multiple software clients to operate and simultaneously view data from single/multiple 408 DSPi systems simultaneously, permitting users to independently view data in the fundamental measurement units of their choice. Software installation and configuration are quick and easy, allowing mass configuration of multiple channels with minimal user intervention. Configuration templates and software further simplifies the process, allowing the user to install the software, produce a configuration, and begin capturing data in minutes

8-Channel Dynamic Sampling Card (168905 – AA)
The 8-channel dynamic sampling card is an extremely powerful and flexible signal processing engine. Along with the analog front-end conditioning, the user can configure most transducer inputs, with positive or negative bias, while maintaining maximum signal input range. An array of DSP processors and 24-bit ADCs provide maximum resolution. Input signals can be either AC or DC coupled, and users can independently define upper and lower input voltage levels along with full-scale range and transducer scale factor.
The sampling card can provide a variety of data depending on the configuration and user needs. Each channel can provide multiple “static” variables including:

Direct amplitude.
Bandpass amplitude.
1X and 2X Amplitude and Phase, and up to 4 additional user defined nX vectors including amplitude and phase.
Average & instantaneous gap or bias voltages.
Multiple speed values.

Adate/time stamp.
In addition to the static data, each channel can provide up to 4 user-defined dynamic waveforms. Users can configure waveforms for simultaneous Synchronous and/or Asynchronous sampling, with different sampling rates and/or frequency spans. The sampling card supports up to 2 different synchronous sampling rates simultaneously. Time-Synchronous Averaging can also be enabled for all synchronous waveforms. In addition, the card can also sample and store the raw time-continuous data for each channel. All channels within the system are always sampled simultaneously, are synchronized, and are initiated based on a set of user defined events.

Ordering Information

408 DSPi Accessories
(Accessories are ordered as separate line items.)
8-Channel Dynamic Sampler Card
168905-AA
A: Approvals
00
No Approvals
KR
Korea (safe area)
Frequently Asked Questions:
1.What is Communication of 168905-02?
Dual 1000/100Mb RJ45 Ethernet PortsProtocol-TCP/IPDHCP or Fixed IP addressingLAN/WAN compatible

2.What's Internal Cloc of 168905-02?
Battery-Backed Real-Time clock (RTC) accuracy is ± 2 seconds / month
