Manufacture |
Bently Nevada |
|
Model |
176449-09 |
| PN No. |
176449-09 |
|
Catalog |
3500/70M |
|
Description |
3500/70M Recip Impulse Velocity Monitor Module |
| Origin | U.S.A. |
| HS CODE |
8537101190 |
| Dimension |
2.6*25.6*24.4 (CM) |
| Weight | 0.85 kg |
Description:

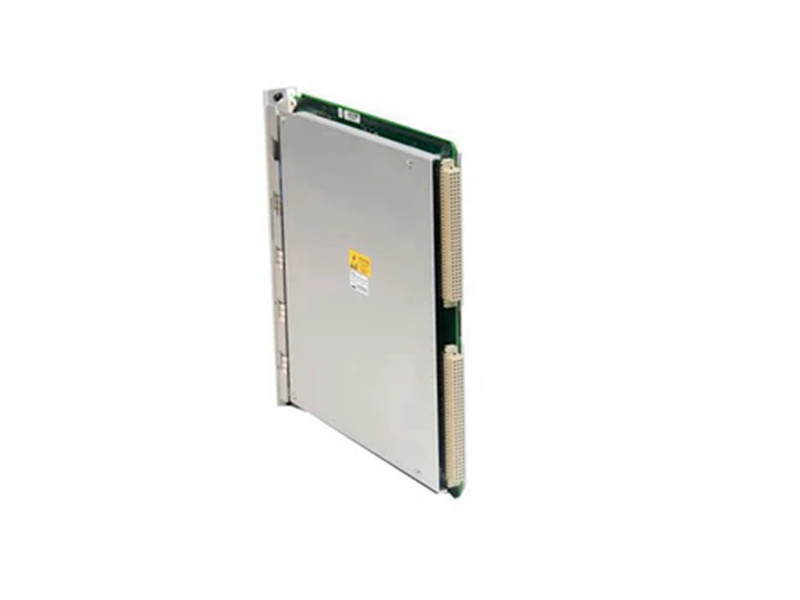

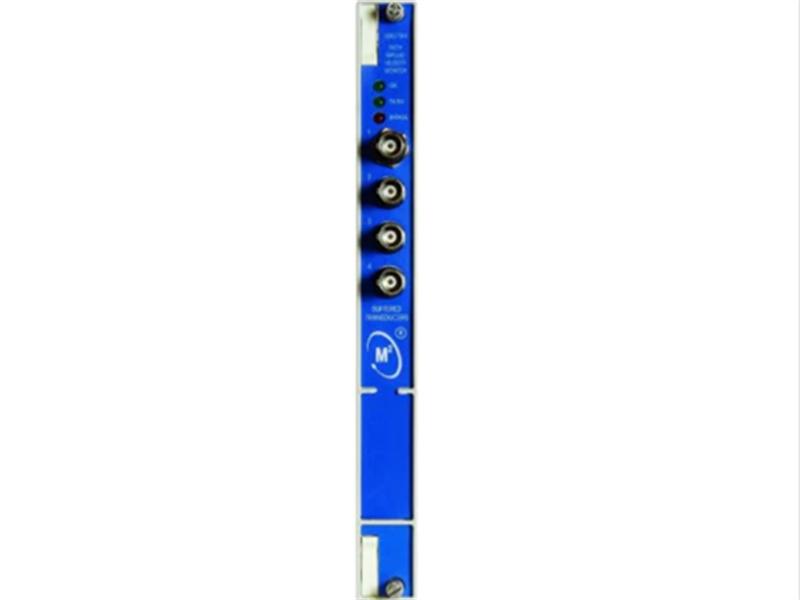

The Bently Nevada 176449-09 is a 3500/70M Recip lmpulse Velocity Monitor designed to monitorvibration in reciprocating compressors. lt provides a reliable method for detecting crankcase andcrosshead vibrations, helping ensure safe and efficient operation of the equipment. The devicefeatures four channels, each programmed in pairs, allowing it to perform multiple functionssimultaneously.
Features:
-Channels: 4 channels for monitoring
-Inputs: Accepts input from seismic transducers
-Measurement Types: Peak velocity, peak impulse, average velocity, average impulse
-Configuration Software: 3500 Rack Configuration Software
SPECIFICATIONS:
Signal Inputs: 1 to 4 proximity probe signals
Signal Range: 10 to 100 mVrms
Frequency Range: 3 to 30,000 Hz
Accuracy: +0.5% of reading
Resolution: 0.1 mils/sec
- Output signals:
-4 digital output signals (dry contact)
Alarm Relay Outputs: 4 alarm relay outputs (dry contact)
Communication Ports: RS-232, RS-485, Ethernet
Power Requirements: 120 or 240 VAC, 50/60 Hz
Operating Temperature Range: 0 to 55 °C (32 to 131 °F)
Storage Temperature Range: -20 to 70 °C (-4 to 158 °F)
Datasheet Link:
176449-09 Bently Nevada 3500/70M Recip Impulse Velocity Monitor PDF Datasheet
