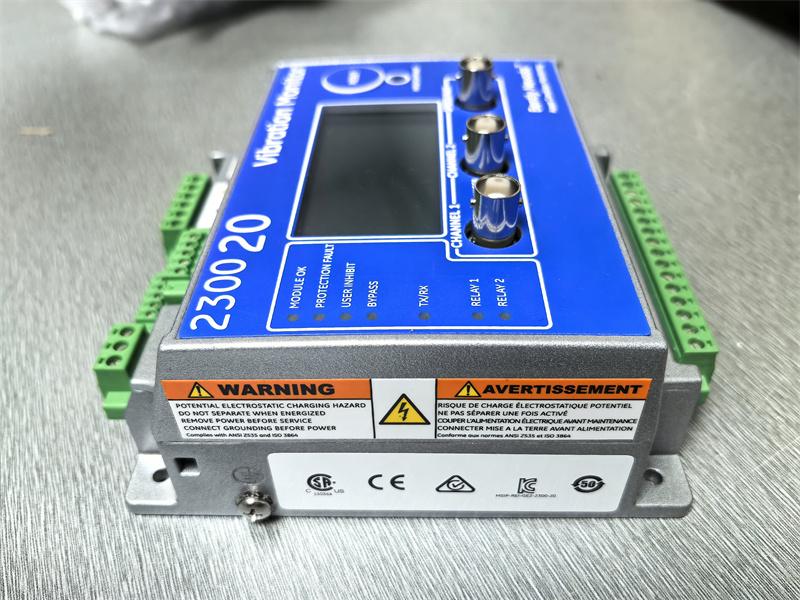

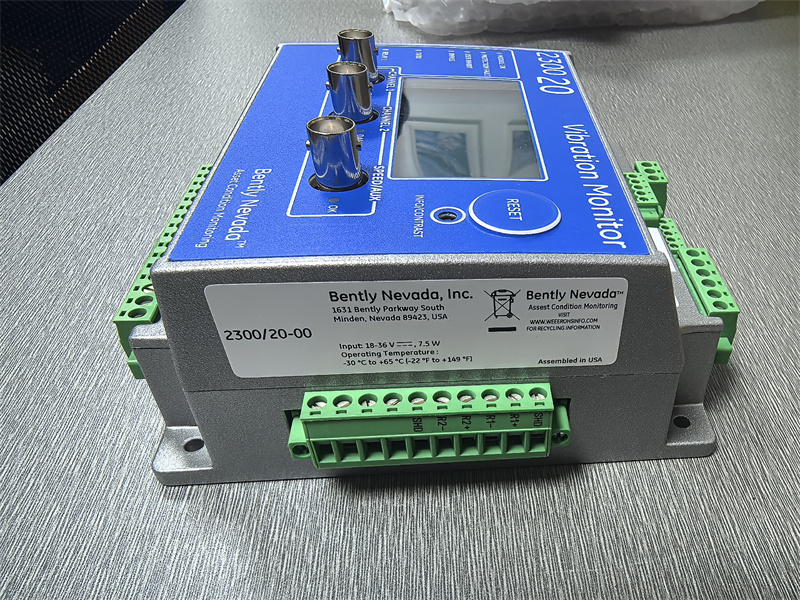

2300/20-00 Bently Nevada 2300 Series Vibration Monitor

Description:

The 2300 Vibration Monitors provide cost-effective continuous vibration monitoring and protection capabilities for less critical and spared machinery. They are specifically designed to continuously monitor and protect essential medium to low criticality machinery in a wide range of industries including: oil & gas, power generation, water treatment, pulp and paper, manufacturing, mining, cement, and other industries.

The 2300 Vibration Monitors deliver vibration monitoring and high vibration level alarming. They include two channels of seismic or proximity measurement inputs from various accelerometer, Velomitor and Proximitor types, a speed input channel for time-synchronous measurements, and outputs for relay contacts. The 2300/20 monitor features a configurable 4-20 mA output which interfaces more points to a DCS. The 2300/25 monitor features System 1 Classic connectivity for Trendmaster SPA interface which enables users to leverage existing DSM SPA infrastructure.

The 2300 Vibration Monitors are designed for using on a broad range of machine trains or individual casings where the sensor point count fits the monitor’s channel count and where advanced signal processing is desired.

Monitor Key Features

2300/20

• Two 4-20 mA outputs with internal current loop power supply.
• Continuous monitoring and protection
• Two acceleration/velocity/proximity inputs with synchronized sampling for advanced diagnostics.
• One dedicated speed channel supporting Proximity probes, Magnetic pickup and Proximity switch type sensors. l Supports process variable on all three input channels.
• Key measurements (Acceleration pk, Acceleration rms, Velocity pk, Velocity rms, Displacement pp, Displacement rms, Speed) real-time provided with alarm configuration.
• Each channel has one measurement group, and can add additional two bandpass measurements and several nX measurements (depends on the device availability).
• LCD and LED for real time value and status display.
• Ethernet 10/100 Base-T communication for configuration using Bently Nevada Monitor Configuration software (Included) with RSA encryption.
• Local contacts for positive engagement of monitor bypass, configuration lockout, and latched alarm/relay reset.
• Two relay outputs with programmable setpoints.
• Three buffered transducer outputs (including Keyphasor signal) providing short circuit and EMI protection. Buffered outputs for each signal are through BNC connectors.
• Modbus over Ethernet.
• Alarm Data Capture

Ordering Information

For the detailed listing of country and product-specific approvals, refer to the Approvals Quick Reference Guide (108M1756).

For additional technical documentation, please log in to bntechsupport.com and access the Bently Nevada Media Library.

2300 Series Vibration Monitor
2300/20-AA: Monitor with 4-20 ma Outputs
(including DIN rail mount assembly, manual and monitor configuration software)

A: Approvals Option

00 None

02 Multiple Explosive Atmosphere Certifications(ATEX/IECEx/CSA)

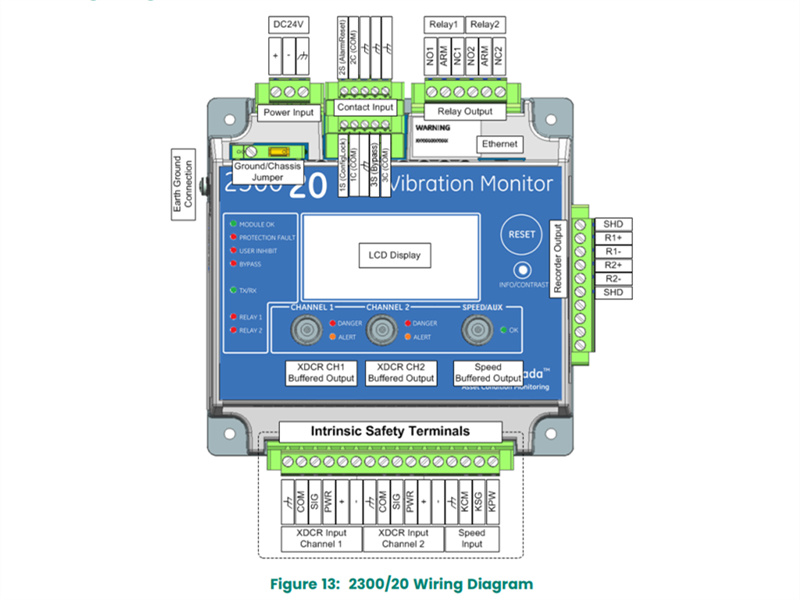

Wiring Diagram

Frequently Asked Questions:

1.What is Monitor provides 3 contact capabilities with input terminals of AS3100S2-Z2?

Configuration lock Latched alarm/relay reset function Monitor Bypass

2.What's One buried button provides 3 functions  of AS3100S2-Z2?

• Display monitor information
• LCD contrast adjustment
• Reset settings to default

Datasheet Link:

2300/20-00 Bently Nevada 2300 Series Vibration Monitor PDF Datasheet
