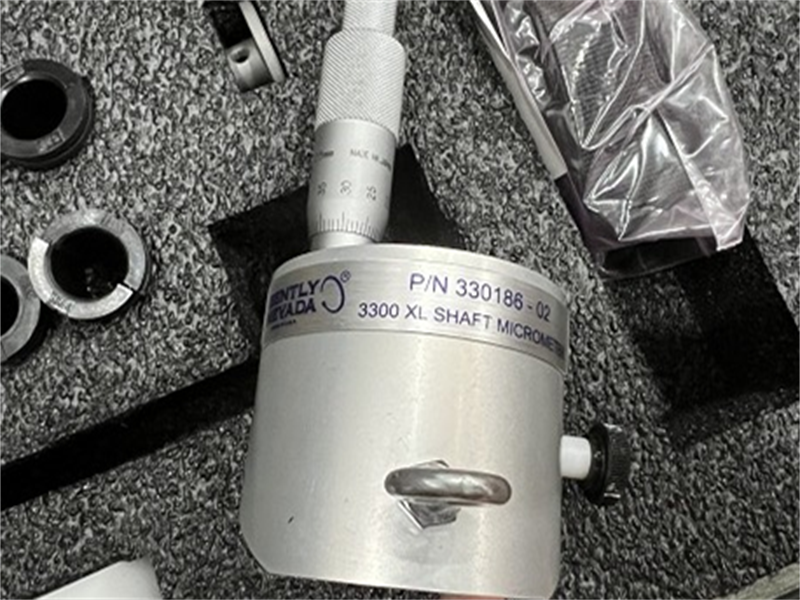

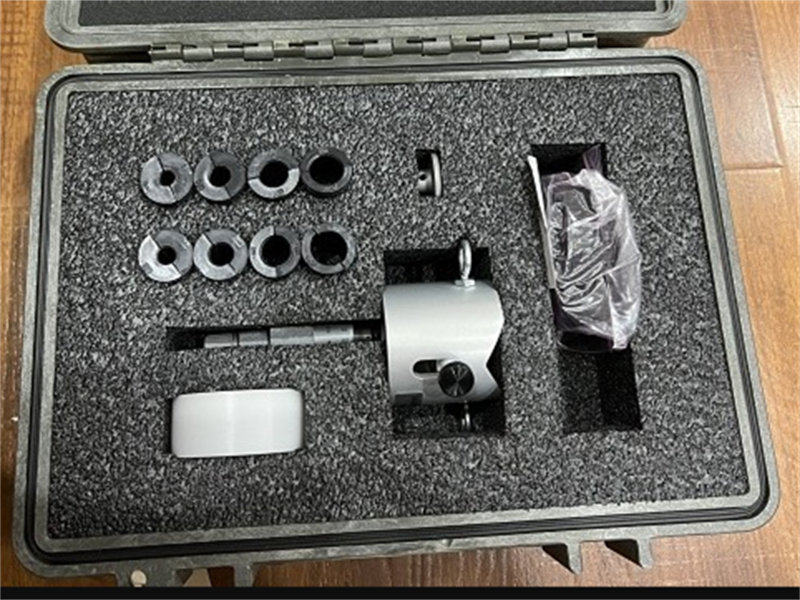

330186-02 Bently Nevada 3300XL Monitor and Transducer Verification Kits

Description:

The 3300 XL precision micrometer is ideal for performing acceptance testing of sensor systems.

They feature specified linear range, average scale factor (ASF), and incremental scale factor (ISF). Sensor systems have maximum linear deviation (DSL) and ISF tolerances, both at ambient temperature and over an extended temperature range.

The 3300 XL precision micrometer helps verify that sensor systems are functioning correctly and meet published specifications.

The probe mounting adapter secures the probe while the high-precision 4140 target button is moved towards or away from the probe tip in specific increments.

Ordering Information:

330186-AXX

A: Scale Units:

01 Micrometer in English units (0-1 in)

02 Micrometer in metric units (0-25 mm)

Note:

The 3300 shaft micrometer and precision micrometer come with probe mounting adapters for 14 inch, 3/8 inch, Vi inch, 5/8 inch, M8, M10, M14 and M16 probe thread sizes.

138751-01
3300 XL Precision Micrometer Instruction Sheet

140273-01
3300 XL Shaft Micrometer Instruction Sheet

27505-01
Target button: A replacement 4140 target button that comes standard with the 3300 XL shaft micrometer. There can be a variation of up to 5% in the average scale factor (ASF) between each target button.

136534-01
High Precision target button: A replacement 4140 target button that comes standard with the 3300 XL precision micrometer. There can be a variation of up to 0.6% in the average scale factor (ASF) between each target button.

02200218
Shaft Micrometer Strap: A replacement strap for the 3300 XL Shaft Micrometer.

49478-01
Probe mounting adapter, M5 threads.

49478-02
Probe mounting adapter, 1/4 inch threads.

49478-03
Probe mounting adapter, M8 threads.

49478-04
Probe mounting adapter, M10 threads.

49478-05
Probe mounting adapter, 3/8 inch threads.

49478-06
Probe mounting adapter, M11 threads.

49478-07
Probe mounting adapter, 1/2 inch threads.

49478-08
Probe mounting adapter, M14 threads.

49478-09
Probe mounting adapter, 5/8 inch threads.

49478-10
Probe mounting adapter, M16 threads.

Datasheet Link:

330186-02 Bently Nevada 3300XL Monitor and Transducer Verification Kits PDF Datasheet
