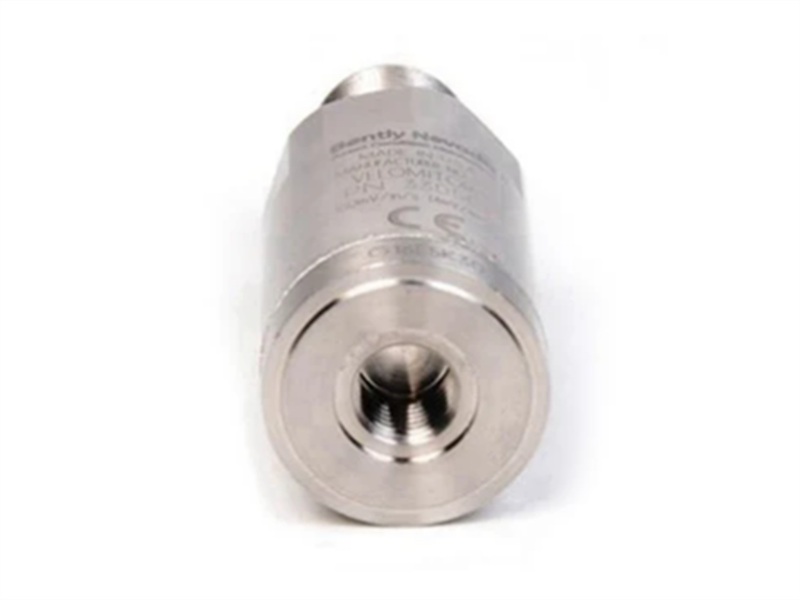

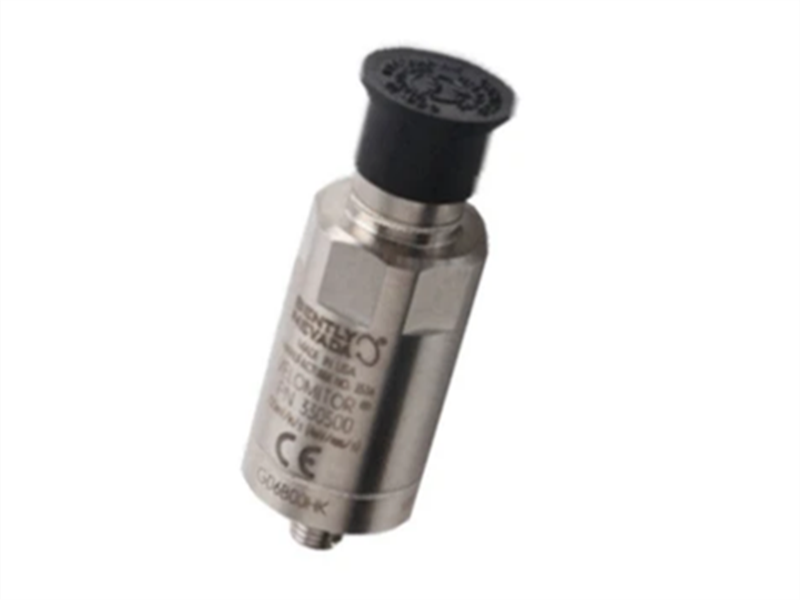

330500-02-00 Bently Nevada Velomitor Piezo-velocity Sensor

Description:

The 330500-02-00 is a Velomitor Piezo-velocity Sensor, engineered forprecision vibration measurement in industrial machinery.

The 330500-02-00 Velomitor Piezo-velocity Sensor has a wide operating range and can be used tomeasure velocity levels from 4.5 Hz to 5 kHz. It also has a high sensitivity and can detect even the smallestchanges in velocity.

This sensorintegrates piezoelectric technology to provide accurate velocity readings,making it ideal for monitoring rotating equipment such as motors,compressors, and turbines. It is designed for harsh industrial environments,ensuring long-term reliability and stability in vibration monitoringapplications.

The330500-02-00 Velomitor Piezo-velocity Sensor uses a piezoelectric element to measure velocity. Thepiezoelectric element generates a voltage proportional to the velocity of the vibration. The voltage is thenamplified and converted to a standard output signal, such as 4-20 mA or O0-10 V.

Features:

-Channels: 4 channels for monitoring

-Inputs: Accepts input from seismic transducers

-Measurement Types: Peak velocity, peak impulse, average velocity, average impulse

-Configuration Software: 3500 Rack Configuration Software
SPECIFICATIONS:
Product No.:330500-02-00
Type: Velomitor Piezo-velocity Sensor
Mounting Thread Adapter Option: M8x1
Agency Approval Option: Not required
Mounting Torque: 46 kg cm (40 in-lb)max.
Connector: 2-pin Mil-C-5015, hermetically sealed, 316L stainless steel shell
Case Material: 316L stainless steel
Operating Temperature: -54C to+121C(-65F to+250F)
Frequency Range: 4.5 to 5 kHz(t3dB)
Sensitivity: 100mV/in/s(3.94 mV/mm/s)
Dynamic Range:80 dB

Datasheet Link:

330500-02-00 Bently Nevada Velomitor Piezo-velocity Sensor  PDF Datasheet
