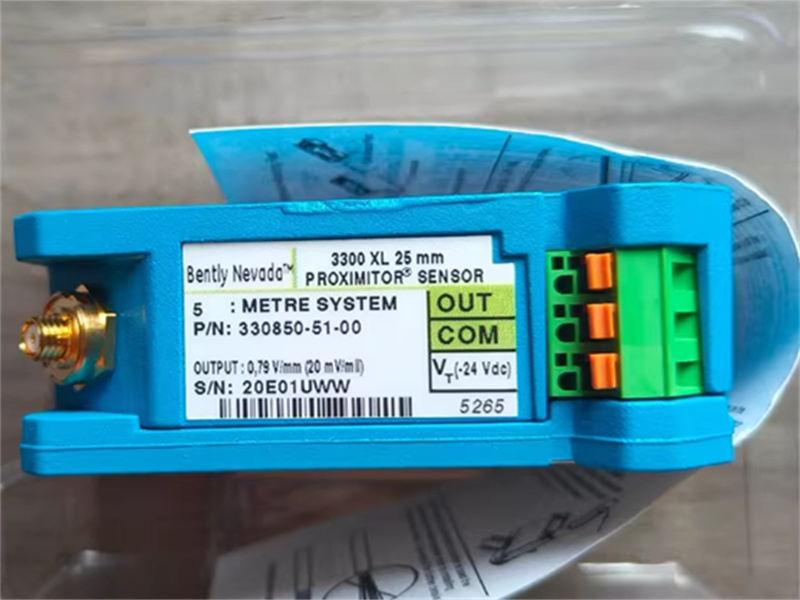

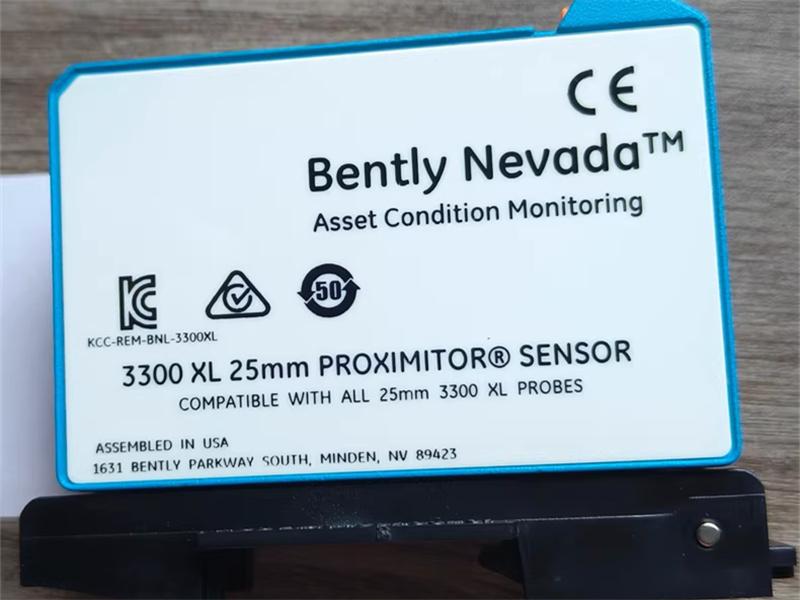

330850-51-05 Bently Nevada 3300 XL 25 mm Proximitor Sensor

Item NO.:
330850-51-05
Payment:
T/T
Market Price:
$1300
Product Origin:
U.S.A.
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
2
Product weight:
1.12 kg

Inquiry now

product introduction

Manufacture	Bently Nevada
Model	330850-51-05
PN No.	330850-51-05
Catalog	3300 XL 25 mm
Description	Proximitor Sensor
Origin	U.S.A.
HS CODE	85389091
Dimension	864 (CM)
Weight	0.25 kg

Description:

The 3300 XL 25 mm Transducer System consists of a separate 5 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor. The 0.787 V/mm (20 mV/mil) output gives this system a linear range of 12.7 mm (500 mils). Based on this linear range, the 3300 XL 25 mm Transducer System is suitable for measuring differential expansion (DE) on midsize to large steam turbine generators caused by the difference in growth rates between the turbine rotor and the machine stator (casing).

Measuring Differential Expansion (DE)

The Differential Expansion measurement is made by two proximity transducers observing a collar or ramp some distance from the thrust bearing. Typical transducer mounting arrangements are:

Two transducers observing the same side of a collar.
Two complementary input transducers observing opposite sides of a collar, effectively doubling the measurable DE range.

Two transducers with at least one transducer viewing a ramp on a rotor and the second transducer viewing either a separate ramp or a different location on the rotor to compensate for radial movement. This arrangement adds some error to the measurement, but can measure a longer total DE distance than the complementary measurement.

The criteria for selecting a mounting method are the size of the available target, the expected amount of rotor axial movement and the type of DE target that exists in the machine (collar versus ramp). If sufficient collar height is available, two transducers observing the same side of a collar is the preferred configuration. These two transducers provide redundant measurements

Ordering Information

330850-AA-BB

A: Total Length and Mounting Option
5 0 5.0 metres (16.4 feet) system length, panel mount
5 1 5.0 metres (16.4 feet) system length, DIN mount
9 0 9.0 metres (29.5 feet) system length, panel mount
9 1 9.0 metres (29.5 feet) system length, DIN mount

B: Agency Approval Option
0 0 No Approvals
0 5 Multiple Approvals

Spare

149369-01	Enhanced Keyphasor Module
125800-01	Keyphasor I/O Module (Internal Terminations)
126648-01	Keyphasor I/O Module (External Terminations)
125800-02	Isolated Keyphasor I/O Module (Internal Terminations) (Designed for use with Magnetic Pickups)
126648-02	Isolated Keyphasor I/O Module (External Terminations) (Designed for use with Magnetic Pickups)
135473-01	Keyphasor I/O Module (Internal Barriers and Internal Terminations
04425545	Grounding Wrist Strap (single use)
00580438	Connector Header, Internal Termination, 4-Position, Green
00502133	Connector Header, Internal Termination, 12-Position, Blu
129770	Keyphasor Module User Guide
Half-height Blank Monitor Cover Kit
131151-01	Half-height Blank Front Panel Cover (qty 1, includes screws)

Half-height Card Adapter

125388-01	Half-height Chassis
125565-01	Card Guide
04300111	Assembly Screws (Order Qty. 3)

Frequently Asked Questions:

1.What is Probe Pressure of 330850-51-05?

3300 XL probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists of a Viton O-ring and compression seal. Probes are not pressure tested prior to shipment. Contact our custom design department if you require a test of the pressure seal for your application.

2.What's Proximitor Sensor Temperature Range of 330850-51-05?
Operating Temperature -51°C to +100°C (-60°F to +212°F)

Storage Temperature -51°C to +105°C (-60°F to +221°F)

Datasheet Link:

330850-51-05 Bently Nevada 3300 XL 25 mm Proximitor Sensor PDF Datasheet
