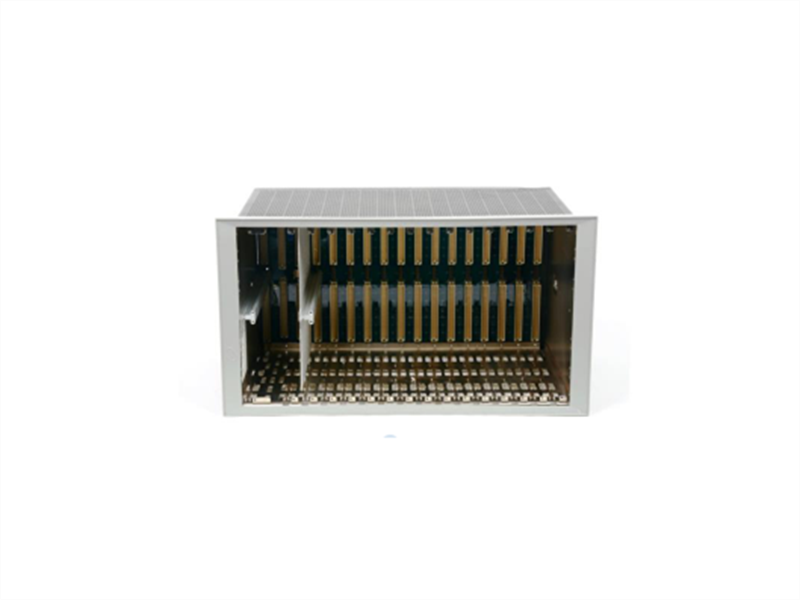

3500/05-02-04-01-00-01 Bently Nevada 3500/05 System Rack Interface Module

Description:

The Bently Nevada 3500/05-02-04-01-00-01 System Rack provides a compact and robust solution for machineryprotection systems. It is designed to house up to seven 3500 Series monitoring modules, ensuring efficientcommunication and reliable power distribution. Moreover, the mini-rack supports flexible installation options,including panel, rack, and bulkhead mounting, making it ideal for a variety of industrial environments. Its ruggeddesign ensures reliable operation in harsh conditions, supporting continuous machinery monitoring for turbines,compressors, motors, and other rotating equipment. In addition, compliance with CSA/NRTL/C and CE standardsguarantees safety and international usability.

This rack facilitates efficient module communication and optimizes power distribution, ensuring the stable and reliable operation of the monitoring system. The rack’s modular design allows for flexibility in configuration, making it suitable for a wide range of industrial applications.

3500/05: This denotes the 3500 System rack series.
-02: Specifies a 12-inch Mini-Rack with 7 module slots, providing compact and efficient module accommodation.
-04: Indicates the mounting options, in this case, the Panel Mount Option suitable for the Mini-Rack.
-01: Refers to the agency approval option, CSA/NRTL/C (Class 1, Division 2), ensuring compliance with rigorous safety standards.
-00: Reserved for future use or additional specifications; none are assigned for this configuration.
-01: European Compliance Option, denoted by CE marking, ensuring conformity with European health, safety, and environmental protection standards.

3500 Racks are manufactured in two sizes:
1. Full-size Rack: 19-inch EIA rack with 14 available module slots
2. Mini-Rack: 12-inch rack with 7 available module slots

Specifications:

Communication protocol: Bently Nevada proprietary protocol
Data rate: Maximum 38.4 k baud (auto baud detection)
Communication interface: RS232 or RS422 switchable (maximum cable length: 30 meters for RS232, 1200 meters for RS422)
Power consumption: 4.75 watts typical
Operating temperature: -40°C to +85°C (-40°F to +185°F)
Storage temperature: -40°C to +85°C (-40°F to +185°F)

Features:

-Industrial-grade construction suitable for harsh environments
-Supports seven 3500 Series modules and associated power supplies
-Flexible mounting options: panel mount, rack mount, or bulkhead mount

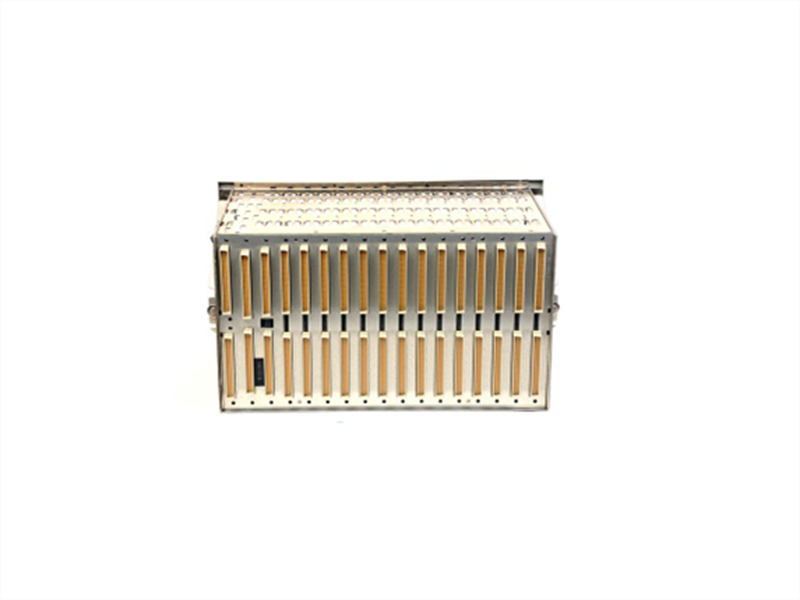

-Accessible wiring and I/O modules from the rear for easy maintenance
-Ensures reliable power distribution to all installed modules
-Compact Design: The mini-rack design optimizes space while providing ample slots for up to 7 modules.
-Panel Mount Option: Ensures secure and stable installation, ideal for environments where space is at a premium.
-Safety and Compliance: Certified for CSA/NRTL/C (Class 1, Division 2) and CE marking, ensuring adherence to international safety and quality standards.
-Versatility: Suitable for a wide range of industrial applications, offering flexibility in monitoring and control systems.

Frequently Asked Questions:

Q1: How many modules can the 3500/05 Mini-Rack hold?
A1: The mini-rack supports up to seven 3500 Series monitoring modules.

Q2: What mounting options are available?
A2: Panel mount, rack mount (19-inch EIA), and bulkhead mount options are supported.

Q3: Is the rack suitable for hazardous locations?
A3: Yes, it complies with CSA/NRTL/C for Class 1, Division 2 hazardous areas.

Datasheet Link:

3500/05-02-04-01-00-01 Bently Nevada 3500/05 System Rack Interface Module PDF Datasheet
