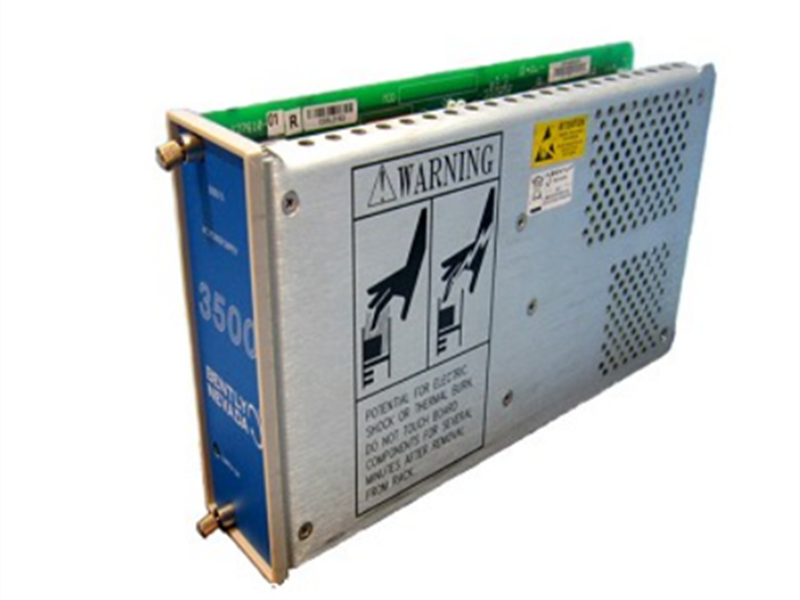

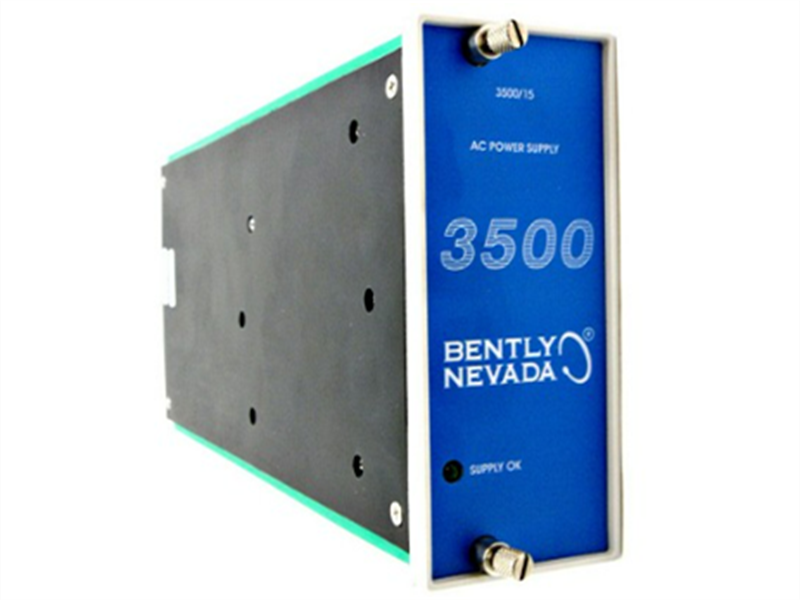

3500/15 127610-01 Bently Nevada AC Power Supply Module

Description:

The Bently Nevada 3500/15 (127610-01 + 125840-01) is a Power Supply Module engineered for the 3500 SeriesMachinery Protection System.Power suppies are halfheieht modues that must beinstaed in specially designed slots on the rack's let side. The rack can house one or two power supplies (any combination ofac andlor dc, with either supply capable opowering the entire rack.The second supply,ifinstaled,seres as a backup for the primany supply. When two power supplies are installed in a rack, the lower suply serves asthe primary supply and the upper supply serves as the backup suply. As longas a seond power supplyis instaled, removing or inserting either power suply module willnotdisrupt rack operation. The Power supples accept a wide range of input voltages and convert them to voltages that other 3500 modues can use. lt ensures consistent power delivery for machinery monitoring and protection. Themodule supports single or redundant configurations and accepts both AC and DC power inputs, providing installationflexibility in industrial environments.

Key Features

• Universal AC input compatibility
• High reliability for continuous operation
• Supports redundant power configurations
• Compact design for rack integration

Parameters:

Model: 3500/15
Part Numbers:127610-01,125840-01
Redundancy: Supports one or two power modules (second as backup
Installation Slot: Left-most slot in 3500 rack
High Voltage AC: 175 to 264 Vac RMS (220 Vac nominal), 247 to 373 Vac pk
Low Voltage AC: 85 to 132 Vac RMS (110 Vac nominal), 120 to 188 Vac pk
Input Frequency: 47 to 63 Hz
Output Power: Typically up to 100W
Extended Output: Some variants provide 200W-500W
Output Type: Regulated power to rack modules and monitors
Operating Temperature: -30 'C to +65 °C (-22 °F to +150 °F)
Storage Temperature:-40 'C to +85 °C (-40 °F to +185 °F)
Humidity: 95% RH, non-condensing

Q1: How many power supplies can the 3500 rack house?

It can house one or two power supplies (any combination of ac and/or dc), with either supply capable of powering the entire rack.

Q2: What is the purpose ofthe second power supply in a rack?

The second power suply,ifinstaed, serves as a backup for the primary supply.When two power suplies are instaled in a rack, the lower supply serves as the primary suppy,and the upper supply serves as the backup supply.

Q3: Will removing or inserting a power supply module disrupt rack operation?

As long as a second power supply is installed, removing or inserting either power supply module will not disrupt rack operation.

Q4: What range of input voltages do the Power supplies accept?

It accept a wide range of input voltages and convert them to voltages that other 3500 modules can use.
