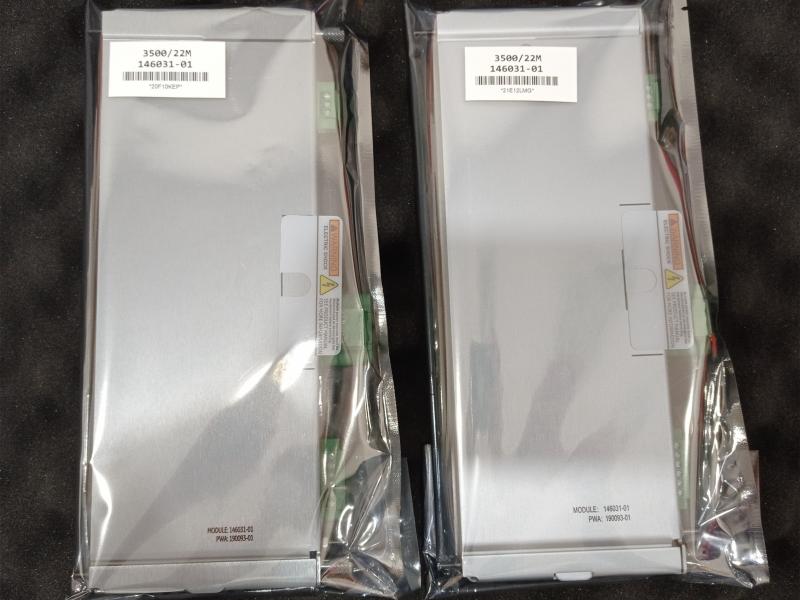

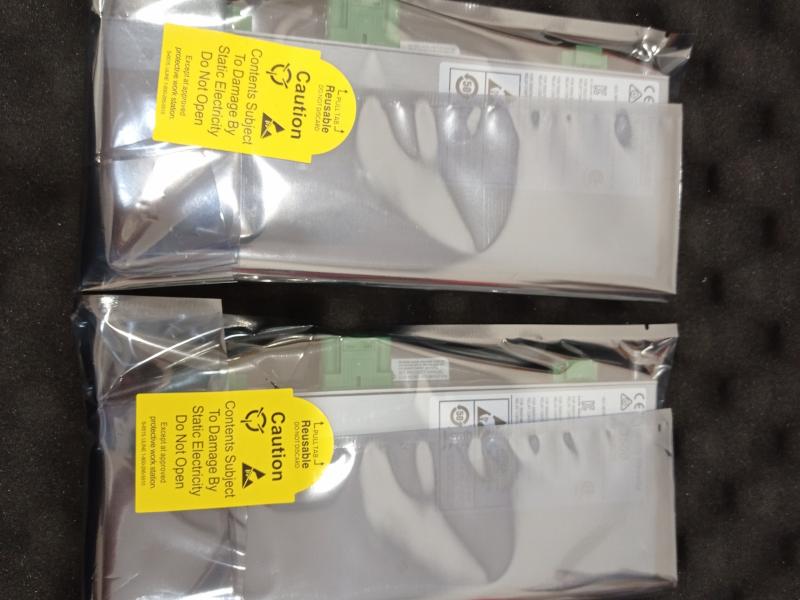

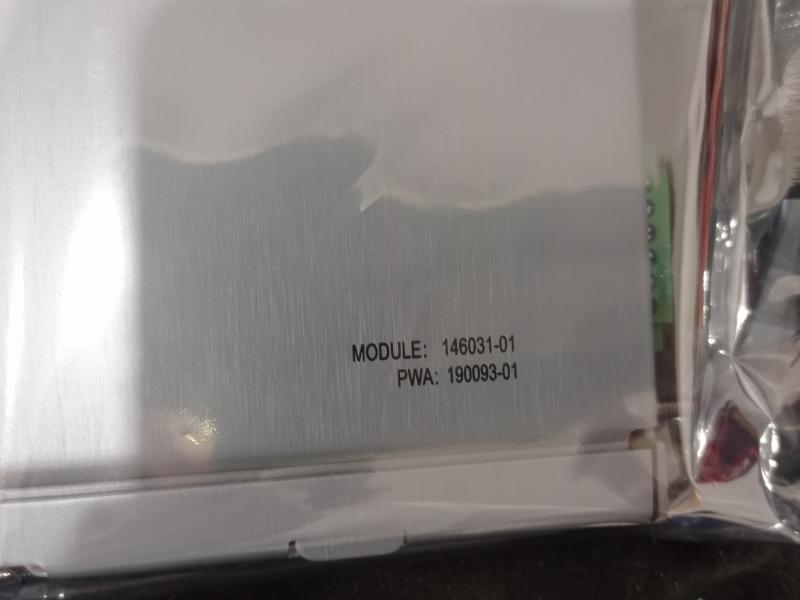

3500/22-01-01-01 Bently Nevada 146031-01 I/O Module PWA:190093-01

Description:

3500/22-01-01-01 Bently Nevada 146031-01 I/O Module PWA:190093-01

The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.

Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack.

Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).

3500 22M Dynamic Data Enabling Disk
This disk enables the number of channels of dynamic data (i.e., the ability to collect waveforms) that the TDI will support. There are two levels of dynamic data. Steady-State points are channels that collect waveform data due either to a software command or to an alarm event, and therefore support current values, scheduled waveform capture, and alarm data capture. Transient points provide all the function of a Steady-State point with the additional capability of waveform collection due to parameter variations such as machine speed.

Ordering Information

Product Description
3500/22M-AA-BB-CC

A: Transient Data Interface Type
01
Standard (use for standard monitoring applications)

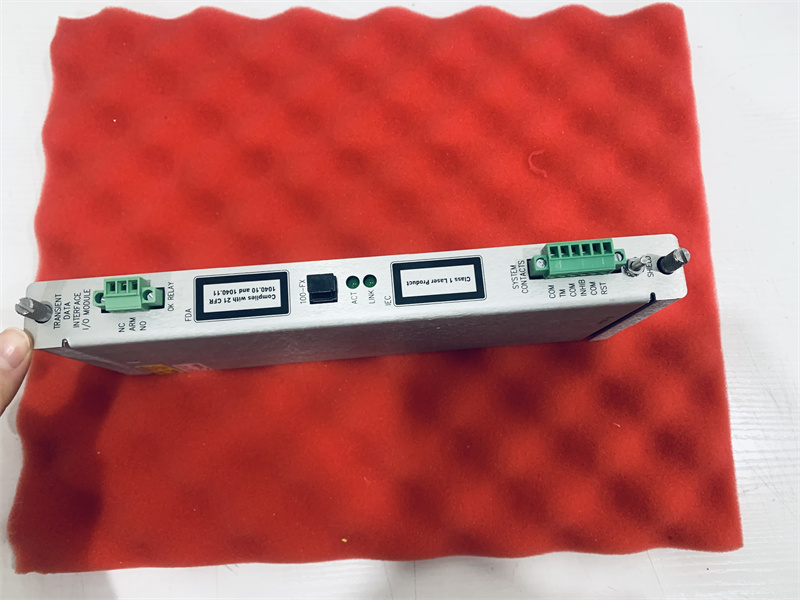

B: I/O Module Type
01
10Base-T/100Base-TX Ethernet
02
100Base-FX (Fiber Optic) Ethernet
03
10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts
04
100Base-FX (fiber optic) Ethernet with gold-plated OK Relay contacts
C: Agency Approval
00
None
01
CSA/NRTL/C (Class 1, Division 2)
02
Multi (CSA, ATEX, IECEx)

Spares

Frequently Asked Questions:

1.What is Function of 3500/22M-01-02-00 146031-01?

Indicates when the 3500 rack is operating normally or when a fault has been detected within the rack. User can select either an “OPEN” or “CLOSED” contact to annunciate a NOT OK condition. This relay always operates as “Normally Energized”.

2.What is Ratings of 3500/22M-01-02-00 146031-01?

Standard OK Relay is rated to 5A @ 24 Vdc/120 Vac, 120 Watts/600 VA Switched Power (maximum)
OK Relay with gold-plated contacts is rated down to 1 mA @ 1 Vdc (minimum)

3.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

3500/22-01-01-01 Bently Nevada 146031-01 I/O Module PWA:190093-01 PDF Datasheet
