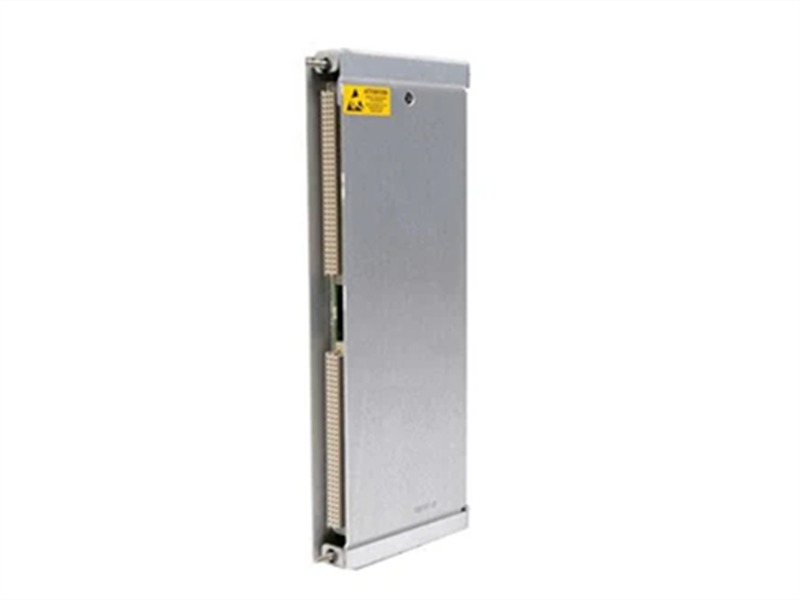

3500/32M 125720-02 Bently Nevada 4-Channel Relay Output Module

Description:

The Bently Nevada 3500/32-01-01125720-02 4-Channel Relay I/0 Module is an integral component of the3500 Series Machinery Protection System.

The125720-02 is a relay output module developed by Bentl Nevada,iItfunctions as an interface between the control system and external devices orequipment that require switching or control signals, The modulefeatures multiple relay circuits, enabling the switching of electrical signals based oncommands from the control system. Each relay can handle specific voltage and current levels, making itversatile for controlling different types of loads.

Key Features

• Two input channels: Accepts input from a variety of sensors, including proximity probes, velocitysensors,and othertransducers.
• High accuracy: Provides precise measurements of position, velocity, and other parameters
• Wide measurement ranges: Can accommodate a wide range of sensor outputs
• Advanced signal processing: Filters and conditions signals to extract meaningful information.
• User-configurable alarms: Triggers alarms based on user-defined setpoints
• Data communication: Communicates data to the 3500/45 monitoring system for real-time monitoringand analysis.
• Protection:Provides crucial data for preventing equipment failures.0Enables proactive maintenance strategies to extend machine lifespan.
• Configurable for various applications like shaft position, axial movement.Dand valve stem tracking.

Parameters:

Part Number:25720-02
Model / Series:3500/32-01-01
Manutacturer:Bently Nevada
Number of Channels: 4
Relay Type : Electromechanical, NO or NC
Contact Rating :5A at 30 VDC or 250 VAC
Response Time:<50 ms
Input Voltage :24 VDC nominal
onnector Type : Detachable screw terminals
Operating Temperature : -30Cto +65C(-22F to+149F)
Storage Temperature : -40Cto +85C(-40F to+185F)
lumidity : 0-95%non-condensing

Q1: How many relay channels does this module provide?
A1: The module provides four independent relay channels.
Q2: Are the relays normally open or normally closed?
A2: Relays are electromechanical and configurable as normally open(NO) or normally closed (NC).
Q3: What is the contact rating for each relay?
A3: Eachrelay can handle 5A at30 VDC or 250 VAC.

Datasheet Link:

3500/32M 125720-02 Bently Nevada 4-Channel Relay Output Module PDF Datasheet
