3500/46M Hydro Monitor 176449-06 Bently Nevada

Description:

Product Model:

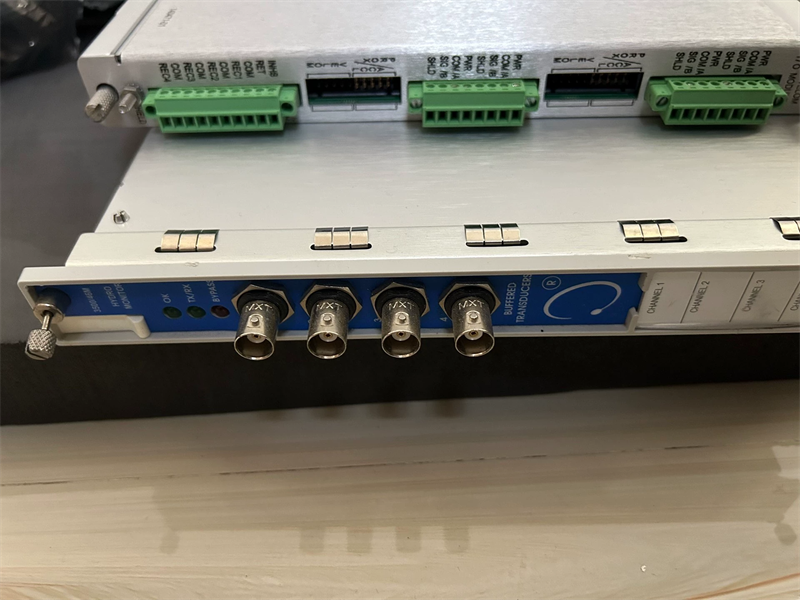

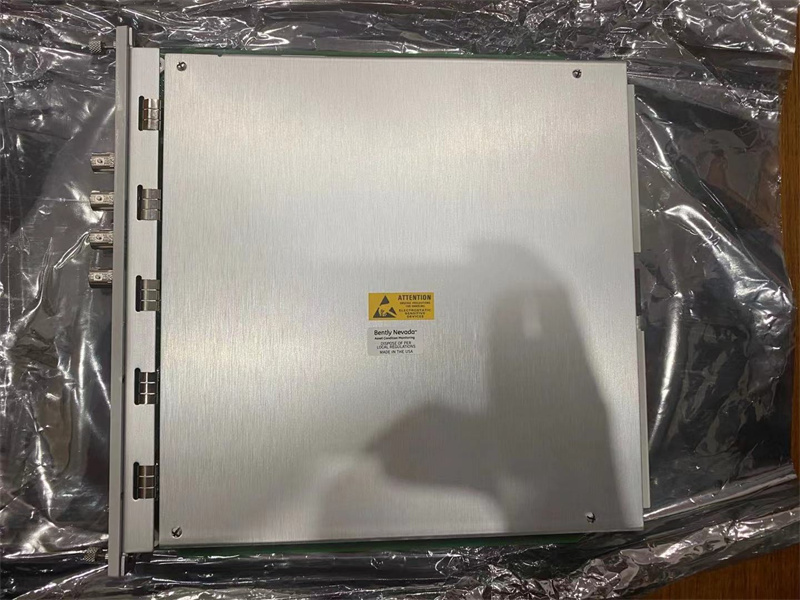

Bently Nevada 3500/46M 176449-06

Product Type:
Low Voltage DC Power Input Module4-Channel Vibration Monitor

System Compatibility:
Bently Nevada 3500 Machinery Protection System

Input Voltage:
20–30 VDC (24 VDC nominal)

Application:
Designed to provide regulated internal power for Bently Nevada 3500 racks and installed monitoring modules.

Installation:

• Installed inside a 3500 rack

• Requires compatible Power Input Module (PIM)

• Supports single or dual (redundant) power supply configuration

Operating Environment:
Industrial control and machinery protection applications, including oil & gas, power generation, and rotating equipment monitoring systems.

Condition:
Available as replacement or spare part for existing 3500 systems.

The 3500/46M Hydro Monitor is a four-channel instrument that accepts input from proximity, seismic, dynamic pressure and air gap sensors. The monitor conditions the signal to provide vibration, position and both static and dynamic pressure measurements. It then compares the conditioned signals with user-programmable alarms. Hydro Radial Vibration channels combine the shaft gap movement with the NX amplitude to provide a measurement to alarm on shear-pin failure.

Using the 3500 Rack Configuration Software, you can configure the 3500/46M Hydro Monitor to perform the following functions:

Key Features

• Hydro Radial Vibration
• Hydro Air Gap
• Hydro Velocity
• Hydro Acceleration
• Hydro Thrust
• Multimode Hydro RV
• Multimode Air Gap
• Multimode Hydro Velocity
• Multimode Thrust
• Multimode Acceleration
• Multimode Hydro Dynamic Pressure
• Hydro Stator End Winding (SEW)

FAQ

Q1: What is indication from 3500/46M 176449-06 Front Panel LEDs?

OK LED--Indicates when the 3500/46M Hydro Monitoris operating properly

TX/RX LED--Indicates when the 3500/46M Hydro Monitor is communicating with other modules in the 3500 Rack.

Bypass LED--Indicates when the 3500/46M Hydro Monitor is in Bypass Mode.

Q2: What's Input Impedance with I/O module?

10 kΩ for Prox/Accel3.5 MΩ for Velomitor

Q3: Is this module compatible with existing 3500 systems?

Yes. This power supply is fully compatible with all standard Bently Nevada 3500 racks and monitoring modules, making it suitable for both new installations and replacement of existing DC power supplies.

Q4: Does this model support redundant power configurations?

Yes. The 3500 system allows dual power supplies to be installed, providing redundancy for applications where continuous operation and system reliability are critical.

Q5: Is any software or configuration required after installation?

No additional software or firmware configuration is required. Once properly installed, the module operates automatically as part of the 3500 system.

Q6: What is this product typically used for?

It is commonly used in machinery protection and condition monitoring systems, including turbines, compressors, pumps, and other critical rotating equipment.

Please select the correct power supply type and approval option according to your system configuration.

Ordering Information – 3500/46M Hydro Monitor

Ordering Code Format

A: I/O Module Type

Our company offers the entire range of 3500 series power supplies with immediate availability. We maintain extensive stock—including both current and discontinued models—and welcome your inquiries.

Datasheet Link:

3500/46M Hydro Monitor 176449-06 Bently Nevada PDF Datasheet
