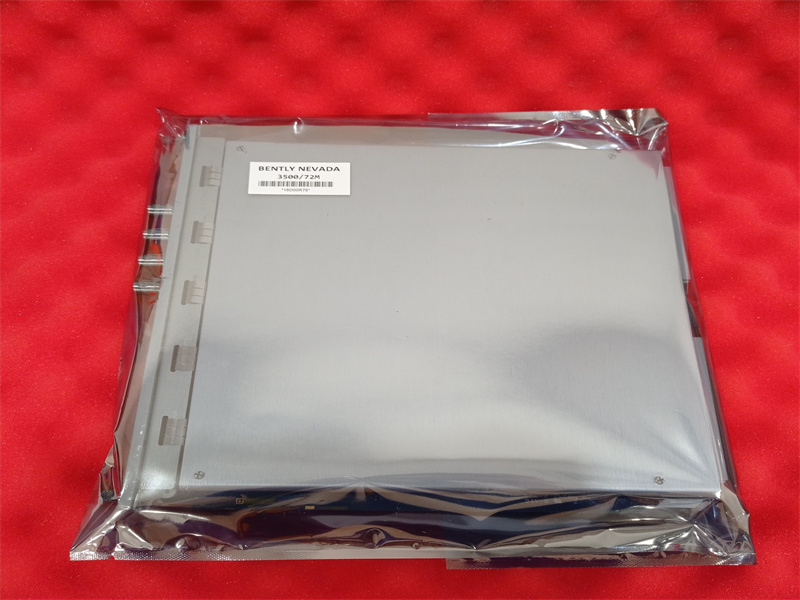

3500/72M-01-00 Bently Nevada 176449-08 Recip Rod Position Monitor

Description:

The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with user-programmable alarms.
Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
Use the 3500 Rack Configuration Software to:

• Configure alert setpoints for each active measured value and danger setpoints for any two of the active measured values.
• Protect reciprocating compressors by continuously comparing monitored parameters against configured alarm setpoints to display alarms and trigger relays, if needed. Monitor the condition of essential reciprocating compressor machinery.

• Rod position l
• Rod drop l
• Hyper-compressor

Rod Position Monitor
3500/72M - AA-BB

A: I/O Module Type
01 I/O Module with Internal Terminations
02 I/O Module with External Terminations
03 I/O Module with Internal Barriers and Internal Terminations

B: Hazardous Area Approval Option
00 None
01 cNRTLus (Class 1, Division 2)
02 ATEX/IECEx/CSA (Class 1, Zone 2)

Frequently Asked Questions:

1.What is Rod Position Single Channel of 3500/72M-01-00?
Position Magnitude,

Position Angle,

Crank Angle,

Pk-Pk Amplitude,

Gap,

1X Amplitude,

Not 1X Amplitude,

2X Amplitude

2.What is Buffered Transducer Outputs of 3500/72M-01-00?
The front of each monitor has one coaxial connector for each channel.
Each connector is short-circuit protected.

3.When does the warranty period start?
One year from the time the client receives the goods.
